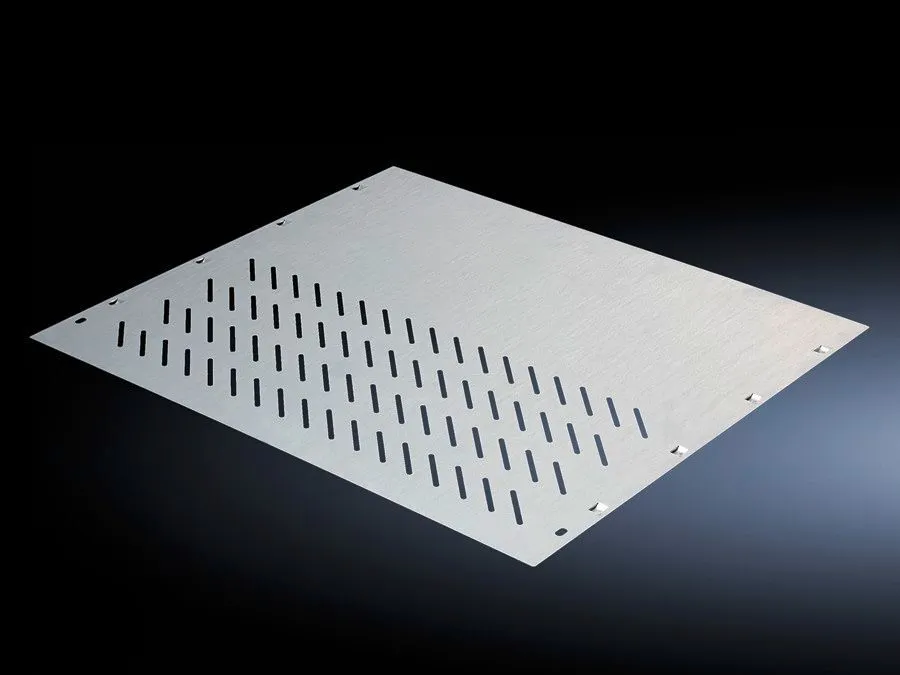

Rittal SV 9673.484 Compartment Divider - With Louvres
Part Number: 9673484
Manufacturer
Rittal
Part number
9673484
Category
Alt Part Number
SV 9673.484
Quick Summary
Rittal SV 9673.484 Compartment divider separates compartments in TS enclosures for cleaner cable management. Engineers often struggle with space constraints and crowded wiring when mounting multiple modules, risking heat buildup and limited access. Certification details such as CE marking, IP ratings, or SIL status are not listed in the data; verify with the supplier. Its zinc-plated 1.25 mm sheet steel construction, dimensions of 706x445 mm, and compatibility with 800 mm-wide TS frames translate into predictable installation and long-term cost savings. By standardizing separation with this divider, maintenance workflows improve and parts compatibility remains high across Rittal TS configurations.
Product Information
Extended Description
9673484 Rittal: SV Compartment divider, WT: 706x445 mm, for TS (W: 800 mm)
Article number
SV 9673.484
Design
With louvres
Product description
For the horizontal separation of compartments. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
For compartment depth
425 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 706 mm | Depth: 445 mm
To fit
Width: = 800 mm
Packs of
4 pc(s).
Weight/pack
12.052 kg
Customs tariff number
73269098
EAN
4028177543577
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 706x445 mm, for TS (W: 800 mm)
Feature: Robust material and finish. Business impact: enhanced durability and corrosion resistance in cabinet environments, reducing replacement cycles and maintenance costs. Application: suitable for ongoing industrial use in TS enclosures with 1.25 mm zinc-plated sheet steel. Feature: Precise dimensions and fit. Business impact: predictable procurement and fast retrofit without modifications. Application: fits TS enclosure width of 800 mm and carries 706x445 mm footprint, enabling seamless side panel integration. Feature: Louvres design. Business impact: improves airflow while maintaining Form separation, supporting thermal management in crowded panels. Application: ideal where organized air paths are needed around installed modules. Feature: Easy installation. Business impact: two mounting brackets per divider simplify mounting, reducing install time and notching risks. Application: compatible with standard TS mounting practices and existing side panels. Feature: Packaged efficiency. Business impact: packs of four at ~12.052 kg each optimize logistics and stocking for job sites. Application: convenient for project-wide deployments and repeat installations. Feature: Form separation capability. Business impact: enables Form 3 or 4 separation when used with side panel modules, improving organization and compliance. Application: supports scalable enclosure layouts across Rittal TS families.
Get a Quick Quote for a Rittal 9673484
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673484?
Enquire Now
FAQs
To install, align the divider within the TS enclosure and use two mounting brackets per divider as specified in the product instructions. The divider measures 706 mm in width and 445 mm in depth, designed to fit a TS enclosure with an 800 mm width, ensuring stable, form-separated compartments.
The divider is made from sheet steel at 1.25 mm thickness and is zinc-plated for corrosion resistance. This combination yields long-term durability in cabinet environments while maintaining a slim profile for dense installations.
Yes, the SV 9673.484 is designed for TS enclosures with an 800 mm width. Each pack contains four dividers, with a pack weight of approximately 12.052 kg, optimizing shipping and stocking for multi-cabinet deployments.
The divider provides horizontal separation of compartments, enabling Form separation and improved cable routing. Benefits include easier maintenance, better airflow management thanks to the louvred design, and compatibility with side panels to maintain organized, scalable enclosure layouts.
The provided data does not list certifications such as CE, IP, or SIL. Please verify the part’s certification status with the supplier and confirm any regional compliance requirements. Additional references include ETIM EC002525 and ECLASS 27400613 classifications for sourcing accuracy.
