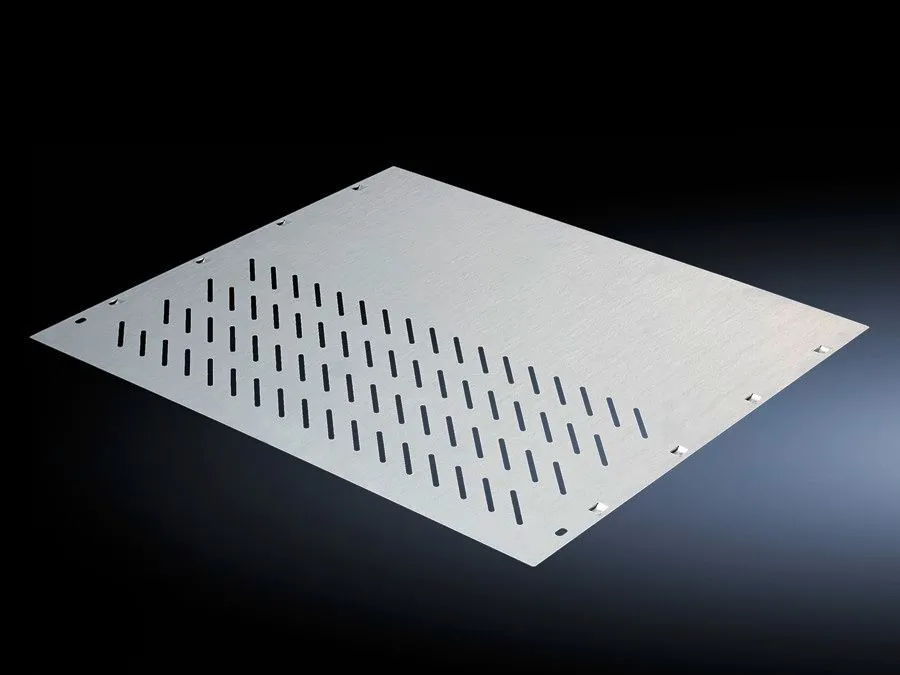

Rittal SV 9673.488 Compartment Divider - With Louvres
Part Number: 9673488
Manufacturer
Rittal
Part number
9673488
Category
Alt Part Number
SV 9673.488
Quick Summary
Rittal SV 9673.488 Compartment divider is a louvers-equipped accessory that enables horizontal separation of compartments in TS enclosures. In practice, engineers often struggle to achieve clean, reliable form separation without compromising airflow or cable management. While this divider provides a compact solution, organizations should consider CE compliance and IP-rated protection as part of their enclosure strategy; SIL-grade safety is typically addressed at system level. The WT 706x788 mm size fits TS W 800 mm enclosures and supports Form separation in accordance with Form 3 or Form 4 when used with side panel modules. This accessory also aligns with standard Rittal installation practices, offering efficient procurement, straightforward mounting, and predictable maintenance cycles, ultimately improving uptime and operational efficiency.
Product Information
Extended Description
9673488 Rittal: SV Compartment divider, WT: 706x788 mm, for TS (W: 800 mm)
Article number
SV 9673.488
Design
With louvres
Product description
For the horizontal separation of compartments. In combination with the side panel modules, this creates Form separation in accordance with Form 3 or 4.
Material
Sheet steel, 1.25 mm
Surface finish
Zinc-plated
For compartment depth
800 mm
Assembly instruction
2 mounting brackets are required to install each compartment divider.
Dimensions
Width: 706 mm | Depth: 788 mm
To fit
Width: = 800 mm
Packs of
4 pc(s).
Weight/pack
21.3 kg
Customs tariff number
73269098
EAN
4028177570863
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WT: 706x788 mm, for TS (W: 800 mm)
Feature → Business Impact → Application: The SV 9673.488 divider uses a 1.25 mm sheet steel construction with a zinc-plated finish and built-in louvres, delivering durable partitioning that improves cable routing and air flow while maintaining enclosure integrity. This reduces hotspots and simplifies cooling management in TS systems, enabling clean separation of functional zones and easier future reconfiguration within TS enclosures. Application-wise, it is designed for horizontal separation of compartments in TS enclosures with a width of 800 mm, making it ideal for modular data and power distribution panels in automation cabinets. Feature → Business Impact → Application: Two mounting brackets are required per divider, ensuring secure, vibration-resistant installation. The result is faster, repeatable mounting with reduced field adjustments, which translates to lower labor costs and fewer site errors during panel assembly. Application: suitable for projects requiring reliable, repeatable partitions in standardized TS layouts. Feature → Business Impact → Application: Material and finish—sheet steel 1.25 mm, zinc-plated—provide corrosion resistance and long-term durability in industrial environments. This minimizes maintenance cycles and keeps internal environments stable for critical components such as power distribution modules. Application: installations exposed to routine handling or humid conditions. Feature → Business Impact → Application: In combination with side panel modules, the divider enables Form separation per Form 3 or 4, supporting compliant enclosure design and organized interior layouts. This improves serviceability and traceability of circuits, especially in multi-zone control cabinets. Application: automation systems requiring clearly defined compartments for safety interlocks and power distribution. Feature → Business Impact → Application: Packaging of four dividers per pack with a total weight of 21.3 kg per pack simplifies procurement planning and logistics. This reduces lead times and inventory complexity on large programs, enabling smoother project management. Application: project rollouts and large-scale panel builds that demand predictable, scalable component kits.
Get a Quick Quote for a Rittal 9673488
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673488?
Enquire Now
FAQs
The divider is designed for TS enclosures with a width of 800 mm and uses the WT 706x788 mm footprint. It is meant to be installed with two mounting brackets per divider and ships in packs of four, aligning with standard TS accessory kits for straightforward integration.
Each divider requires two mounting brackets for secure installation. Plan for a 4‑piece pack per order to equip a full divider set, and ensure mounting brackets are accessible within the enclosure. This setup minimizes field adjustments and speeds up panel assembly.
The louvers support controlled airflow and effective separation of compartments, reducing cross-contamination of cooling zones. This design enhances cooling efficiency, simplifies cable management, and helps sustain stable operating temperatures in TS enclosures during steady-state and peak loads.
Yes. The divider is made from 1.25 mm sheet steel and finished with zinc plating, providing corrosion resistance suitable for many industrial settings. While this improves durability, confirm system-level IP and environmental requirements to ensure full protection for your application.
Rittal provides a range of downloads including a PDF page and general technical information in multiple languages. You can access EN, DE, FR, IT and more to review installation instructions, technical data, and compatibility details for planning, procurement, and maintenance activities.
