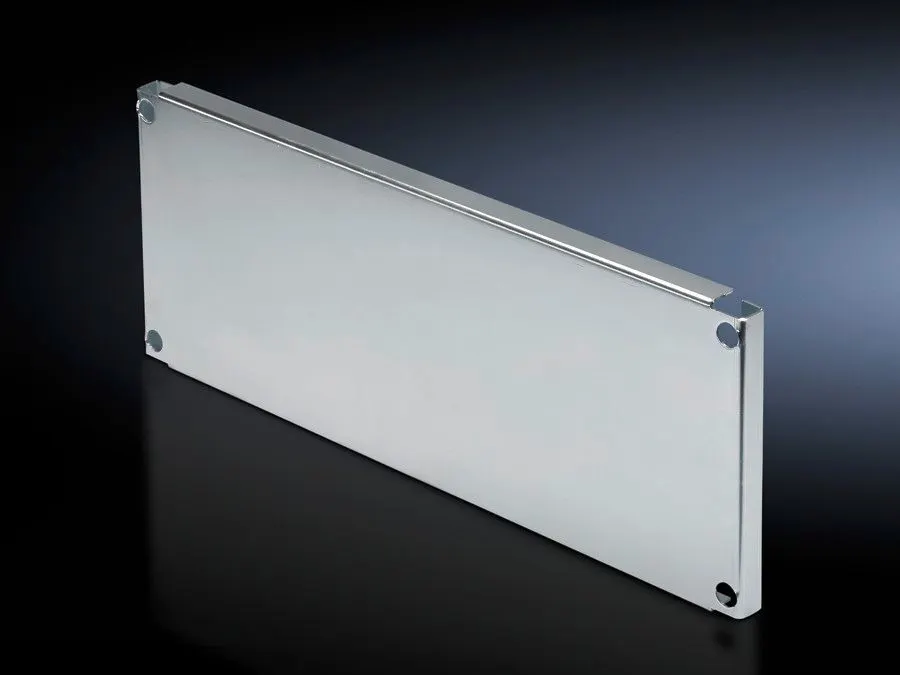

Rittal SV 9673.643 Partial Mounting Plate - EC002525
Part Number: 9673643
Manufacturer
Rittal
Part number
9673643
Category
Alt Part Number
SV 9673.643
Quick Summary
Rittal SV 9673.643 Partial Mounting Plate is a mounting accessory that enables internal compartmentalisation inside TS enclosures for flexible mounting. For engineers, the challenge is expanding mounting levels without cluttering the cabinet or compromising access. It aligns with industry classifications ETIM EC002525 and ECLASS 27400613, supporting accurate procurement data and interoperable spec sheets. This plate complements TS enclosure accessories and side panel modules, delivering scalable interior layouts. In practice, it accelerates projects that demand modular, tidy interiors and faster installation cycles for switchgear and controlgear assemblies.
Product Information
Extended Description
9673643 Rittal: SV Partial mounting plate, WH: 302x293 mm, for TS (B: 400 mm)
Article number
SV 9673.643
Design
Without duct
Product description
For direct attachment to the compartment side panel modules for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
300 mm
Dimensions
Width: 302 mm | Height: 293 mm
To fit
Width: = 400 mm
Packs of
1 pc(s).
Weight/pack
3 kg
Customs tariff number
73269098
EAN
4028177562721
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 302x293 mm, for TS (B: 400 mm)
Material and durability: The plate is built from 2 mm sheet steel and zinc-plated, delivering corrosion resistance and long service life in harsh industrial environments. Business impact: reduces maintenance downtime and extends enclosure life, which translates to lower total cost of ownership. Application: ideal for TS enclosure interiors where thermal management, access, and pathway routing are critical.Dimension and fit: With a footprint of 302x293 mm and a compatible width of 400 mm, it provides precise integration within TS B400 enclosures. Business impact: ensures reliable mounting alignment, minimizes adaptation work, and supports clean cable routing. Application: suitable for universal interior installation across various control and switchgear configurations.Mounting level expansion: The plate enables additional mounting levels, enabling internal compartmentalisation in combination with compartment dividers and side panel modules. Business impact: increases usable space for components, reduces part stacking, and improves maintainability. Application: particularly beneficial for Form 2/3/4 layouts and modular enclosure projects.Complete kit and ease of install: Supplied with angle brackets and assembly parts, this plate speeds up installation and reduces sourcing steps. Business impact: lowers project lead times and labor costs. Application: ideal for field installs and retrofit projects where time-to-value matters.Compatibility and standards: Designed for direct attachment to compartment side panel modules and compatible with Rittal’s interior partitioning ecosystem. Business impact: ensures repeatable, compliant interior configurations and supports future expansion. Application: supports scalable, compliant enclosure interiors for control cabinets and power distribution.
Get a Quick Quote for a Rittal 9673643
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673643?
Enquire Now
FAQs
Installation begins with verifying enclosure width compatibility (TS B400 mm). Mount the plate to compartment side panel modules using the included angle brackets and assembly parts, ensuring the 302x293 mm footprint aligns with interior dividers. Tighten fasteners to spec and route cables as needed. The 2 mm zinc-plated steel provides a robust, corrosion-resistant base for added mounting levels.
Yes. The plate is designed for TS enclosures and supports internal compartmentalisation when used with compartment dividers and side panel modules. It enables creation of additional mounting levels and is suitable for forming interior layouts in accordance with Form 2, 3 or 4, enhancing modularity and future expandability.
The plate uses 2 mm sheet steel and is zinc-plated for corrosion resistance, which is essential in harsh industrial environments. Weighing about 3 kg per pack and supplied as a complete kit, it offers a durable mounting surface that maintains alignment over time, reducing maintenance frequency and preserving enclosure integrity.
The product aligns with ETIM classification EC002525 and ECLASS 27400613, aiding data exchange and procurement workflows. It carries the GTIN 4028177562721 for traceability, and the customs tariff is listed as 73269098, supporting accurate customs documentation and compliance checks.
By enabling additional mounting levels and streamlining interior partitioning, the plate reduces the need for additional mounting hardware and simplifies cable routing. Supplied with angle brackets, it shortens installation time, lowers labor costs, and improves space utilization, delivering faster project completion and lower total cost of ownership in modular enclosure projects.
