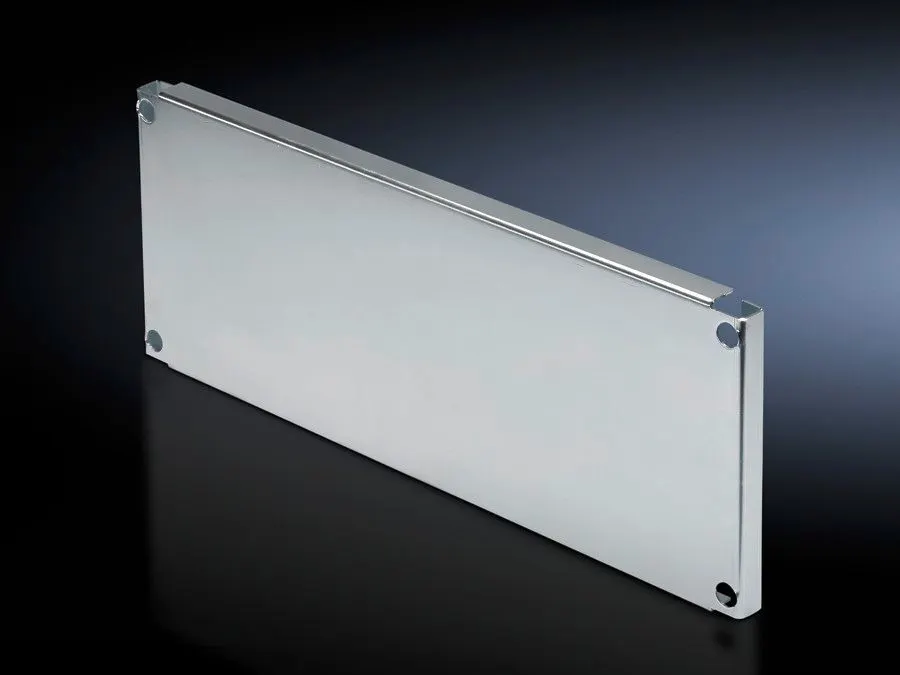

Rittal SV 9673.646 Partial mounting plate - Without duct
Part Number: 9673646
Manufacturer
Rittal
Part number
9673646
Category
Alt Part Number
SV 9673.646
Quick Summary
Rittal SV 9673.646 partial mounting plate enables modular interior mounting inside TS enclosures. Without proper mounting levels, engineers struggle with space, cable routing, and service access. Despite the absence of explicit CE/SIL/IP data in this spec, it aligns with ETIM EC002525 and ECLASS 8.0 27400613 standards, and carries a global EAN 4028177562745 for traceability. This solution supports 600 mm compartment height and 400 mm width, enabling scalable, compliant cabinet architectures for switchgear and controlgear installations. By standardizing mounting levels, it reduces assembly time and errors, while improving compatibility with compartment dividers and side panel modules, ultimately delivering faster project completion and simpler procurement.
Product Information
Extended Description
9673646 Rittal: SV Partial mounting plate, WH: 302x593 mm, for TS (B: 400 mm)
Article number
SV 9673.646
Design
Without duct
Product description
For direct attachment to the compartment side panel modules for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
600 mm
Dimensions
Width: 302 mm | Height: 593 mm
To fit
Width: = 400 mm
Packs of
1 pc(s).
Weight/pack
5.5 kg
Customs tariff number
73269098
EAN
4028177562745
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 302x593 mm, for TS (B: 400 mm)
Feature: Material and finish—2 mm sheet steel, zinc-plated protection. Business impact: Ensures durable, corrosion-resistant mounting surfaces that withstand industrial environments. Application: Ideal for long-life installation in control cabinets with frequent access. Feature: Direct attachment to side panels with or without duct—versatile mounting option. Business impact: Reduces enclosure footprint and enables flexible interior layouts for TS enclosures. Application: Quick integration with compartment modules for Form 2–4 internal compartmentalisation. Feature: Universal interior installation with mounting levels—supports additional mounting levels and compatibility with dividers. Business impact: Improves space utilization, accommodates more devices without cabinet expansion. Application: Controlgear and switchgear installations in compact spaces. Feature: Supplied with angle brackets and assembly parts—streamlined installation. Business impact: Lowers labour time and total cost of assembly, with fewer sourcing steps. Application: On-site mounting in new builds or retrofits. Feature: Dimensions and compatibility—WH 302 x H 593 mm; fits TS width 400 mm; 1-pack per unit, weight 5.5 kg. Business impact: Predictable handling, easy transport, and reliable fit in standard TS configurations. Application: Scalable cabinet design for modular racks and grid layouts. Feature: Standards and data compatibility—ETIM EC002525, ECLASS 27400613, EAN 4028177562745. Business impact: Ensures accurate data exchange, procurement alignment, and traceability. Application: Global sourcing and BOM management for automation projects.
Get a Quick Quote for a Rittal 9673646
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673646?
Enquire Now
FAQs
It is designed for TS enclosures with a width of 400 mm and a compartment height of 600 mm, with overall plate dimensions of 302 x 593 mm. This enables comfortable integration of additional mounting levels inside standard switchgear cabinets.
The plate is made from 2 mm sheet steel and finished with a zinc-plated surface for corrosion resistance, suitable for demanding industrial environments and long service life.
Yes. The design supports direct attachment to compartment side panels and, in combination with dividers and side panel modules, enables internal compartmentalisation patterns such as Form 2, Form 3, or Form 4.
The product aligns with ETIM EC002525 and ECLASS 27400613 data standards, with EAN 4028177562745 for traceability. There is no explicit CE/SIL/IP rating listed in the provided data.
Includes angle brackets and assembly parts, aiding quick installation. It reduces assembly time, supports scalable cabinet designs, and ensures consistent data exchange through ETIM/ECLASS classifications for smoother procurement.
