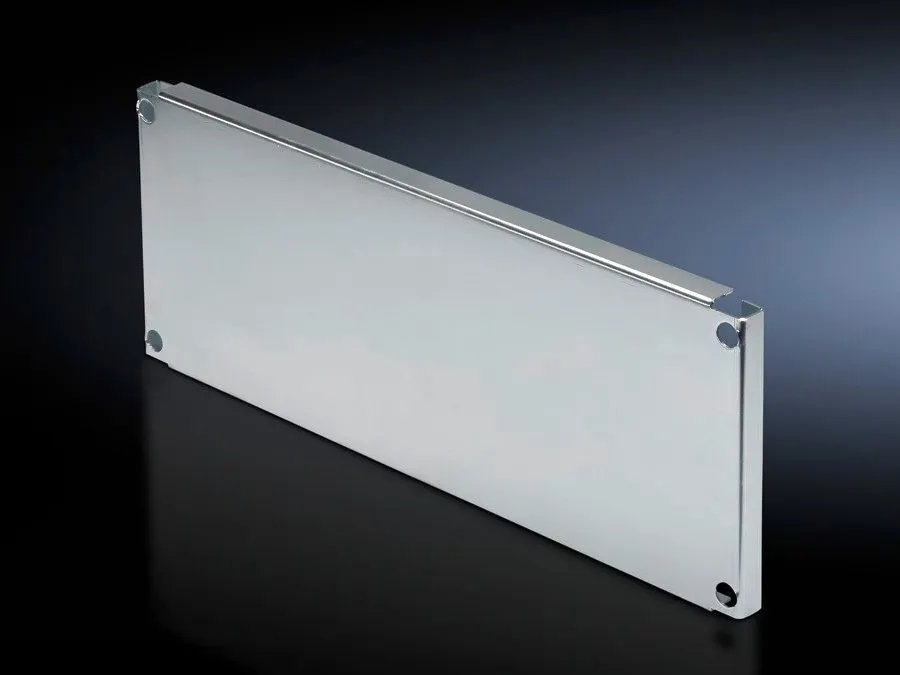

Rittal SV 9673.648 Partial mounting plate - Without duct
Part Number: 9673648
Manufacturer
Rittal
Part number
9673648
Category
Alt Part Number
SV 9673.648
Quick Summary
Rittal SV 9673.648 partial mounting plate is a modular solution that enables interior mounting within TS enclosures for enhanced compartmentalisation. Design engineers often struggle to add mounting levels without sacrificing space or wiring access, but this plate provides a stable platform that integrates with side panels and dividers. Durable, corrosion-resistant construction uses 2 mm zinc-plated sheet steel, designed for 800 mm compartment heights and a 302x793 mm footprint to fit TS B 400 mm cabinets. Equipping it with angle brackets and assembly parts in a single-pack configuration speeds installation and improves data accuracy for BOM, ERP, and spare-part planning. For modular expansion, its compatibility with compartment dividers and side-panel modules supports Form 2, Form 3, or Form 4 interior layouts. This combination delivers faster deployment, standardized interiors, and predictable installation outcomes for compliant industrial control cabinets.
Product Information
Extended Description
9673648 Rittal: SV Partial mounting plate, WH: 302x793 mm, for TS (B: 400 mm)
Article number
SV 9673.648
Design
Without duct
Product description
For direct attachment to the compartment side panel modules for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
800 mm
Dimensions
Width: 302 mm | Height: 793 mm
To fit
Width: = 400 mm
Packs of
1 pc(s).
Weight/pack
7 kg
Customs tariff number
73269098
EAN
4028177562752
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 302x793 mm, for TS (B: 400 mm)
Feature: Direct attachment to compartment side panel modules. Business Impact: Enables universal interior installation with switchgear and controlgear, creating additional mounting levels and enabling internal compartmentalisation in Form 2, 3 or 4 layouts. Application: Designed for TS enclosures with a 400 mm width (B 400 mm) to maximize space and simplify installation. Feature: Material is sheet steel, 2 mm, zinc-plated. Business Impact: Delivers durable, corrosion-resistant construction that withstands daily wear, reducing maintenance intervals and total cost of ownership. Application: Suitable for industrial switchgear environments and TS cabinets. Feature: Precise dimensions—Width 302 mm, Height 793 mm, designed for TS B 400 mm. Business Impact: Guarantees a predictable fit in standard TS enclosures, reducing error-driven rework and procurement delays. Application: Pairs with TS compartments up to 800 mm high for reliable interior expansion. Feature: Includes angle brackets and assembly parts in a 1 pc pack; weight per pack 7 kg. Business Impact: Speeds installation and reduces the need for separate mounting hardware, lowering procurement complexity and lifecycle costs. Application: Ideal for fast deployment in new builds or retrofits in TS enclosures. Feature: Compatibility with compartment dividers and side panel modules; supports internal compartmentalisation per Form 2, 3, or 4. Business Impact: Increases modularity and future-proofing; simplifies changes to cabling and device layouts later. Application: Use when planning modular switchgear layouts for growing control systems. Feature: ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, plus EAN 4028177562752. Business Impact: Improves data accuracy in procurement systems and BOM integration; streamlines supplier communication. Application: Essential for ERP data management, cataloging, and maintenance planning.
Get a Quick Quote for a Rittal 9673648
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673648?
Enquire Now
FAQs
SV 9673.648 attaches directly to compartment side panel modules to add mounting levels inside TS cabinets. It ships with angle brackets and assembly parts for a quick, tool-assisted install. Plan for a 800 mm tall compartment and a 400 mm TS width to ensure a clean, modular interior layout.
Key specs include a footprint of 302x793 mm, designed for TS enclosures with B 400 mm width, a 2 mm zinc-plated sheet steel build, and a pack weight of 7 kg per unit. The supply is 1 piece per pack and includes mounting hardware for straightforward installation.
Yes. The plate is designed to enable internal compartmentalisation in accordance with Form 2, Form 3, or Form 4 when used with compartment dividers and side panel modules, supporting scalable interior layouts within TS enclosures.
The data references ETIM EC002525 and ECLASS 27400613 classifications, which support procurement and data interoperability. The dataset does not specify CE, SIL, or IP ratings; verify regulatory certifications with the supplier for your project requirements.
Choosing SV 9673.648 provides a ready-to-install interior mounting solution that increases modularity, reduces time to deploy, minimizes the need for bespoke interiors, and supports scalable layouts for evolving control systems.
