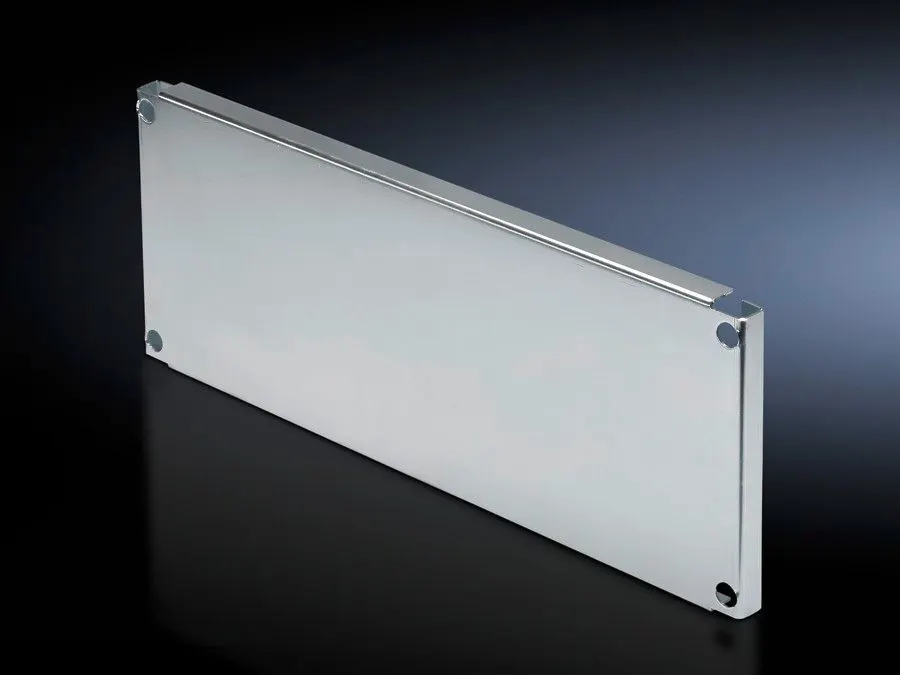

Rittal SV 9673.660 Partial mounting plate - Zinc-plated
Part Number: 9673660
Manufacturer
Rittal
Part number
9673660
Category
Alt Part Number
SV 9673.660
Quick Summary
SV 9673.660 Partial mounting plate is designed to attach directly to the compartment side panel modules for internal compartmentalisation in TS enclosures. This design addresses the common pain points of modularity and scalable interior layouts in tight enclosures, enabling faster changes without panel fabrication. It supports CE safety compliance and aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613 standards, helping procurement streamline spec-consistency and audit readiness. With zinc-plated 2 mm sheet steel and a 1,000 mm compartment height, it complements TS B 600 mm systems while offering universal interior installation. This combination reduces mounting complexity and equipment downtime in ongoing plant operations.
Product Information
Extended Description
9673660 Rittal: SV Partial mounting plate, WH: 502x993 mm, for TS (B: 600 mm)
Article number
SV 9673.660
Design
Without duct
Product description
For direct attachment to the compartment side panel modules for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
1,000 mm
Dimensions
Width: 502 mm | Height: 993 mm
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
12.3 kg
Customs tariff number
73269098
EAN
4028177544123
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 502x993 mm, for TS (B: 600 mm)
Direct attachment to the compartment side panel modules enables immediate internal compartmentalisation within TS enclosures. This feature reduces the need for custom panel fabrication and speeds up reconfiguration during process changes, delivering tangible efficiency gains for control cabinet builds. Material and finish provide durability and corrosion resistance in harsh environments. The 2 mm sheet steel with zinc-plated surface extends service life while keeping weight manageable for field installation teams, lowering maintenance costs over the life of the system. Sized for WH 502x993 mm and TS B 600 mm, the plate integrates with existing interior components using included angle brackets and assembly parts. Its 1,000 mm compartment height compatibility supports additional mounting levels, enabling modular architectures without compromising space. Weight per pack is 12.3 kg, with a single-piece pack simplifying logistics and installation planning. The included hardware minimizes vendor diversity, reducing procurement cycles and ensuring consistent assembly across sites. Compatibility with compartment dividers and side panel modules enables Form 2, 3, or 4 interior arrangements, improving scalability and compliance with enclosure designs. This approach lowers total cost of ownership by enabling future expansion without scrapping existing enclosures.
Get a Quick Quote for a Rittal 9673660
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673660?
Enquire Now
FAQs
Installation begins with aligning the plate to the TS enclosure compartment framework using the included angle brackets and assembly parts. Fitment relies on the 502 mm width and 993 mm height, ensuring level mounting for subsequent dividers and side panel modules. Secure with the supplied fasteners, verify verticality, then add mounting levels as needed for controlled assembly.
Yes. The plate is designed for universal interior installation and is compatible with compartment dividers and side panel modules. This enables internal compartmentalisation in Form 2, 3, or 4 configurations, supporting scalable layouts without new panels and reducing retrofit downtime.
The mounting plate matches WH 502x993 mm with a width of 502 mm and height of 993 mm, designed for a 1,000 mm compartment height. Each pack weighs 12.3 kg and includes angle brackets and assembly parts for a complete installation package, simplifying on-site handling and logistics.
The component is aligned with ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, supporting consistent procurement data. It also references CE safety considerations in its typical market deployment, aiding compliance during installation and audit processes.
Using SV 9673.660 increases interior mounting capacity, reduces custom fabrication, and shortens changeover times. The zinc-plated 2 mm steel construction offers long-term durability, while included hardware minimizes procurement complexity and total cost of ownership through scalable, future-proof enclosure interiors.
