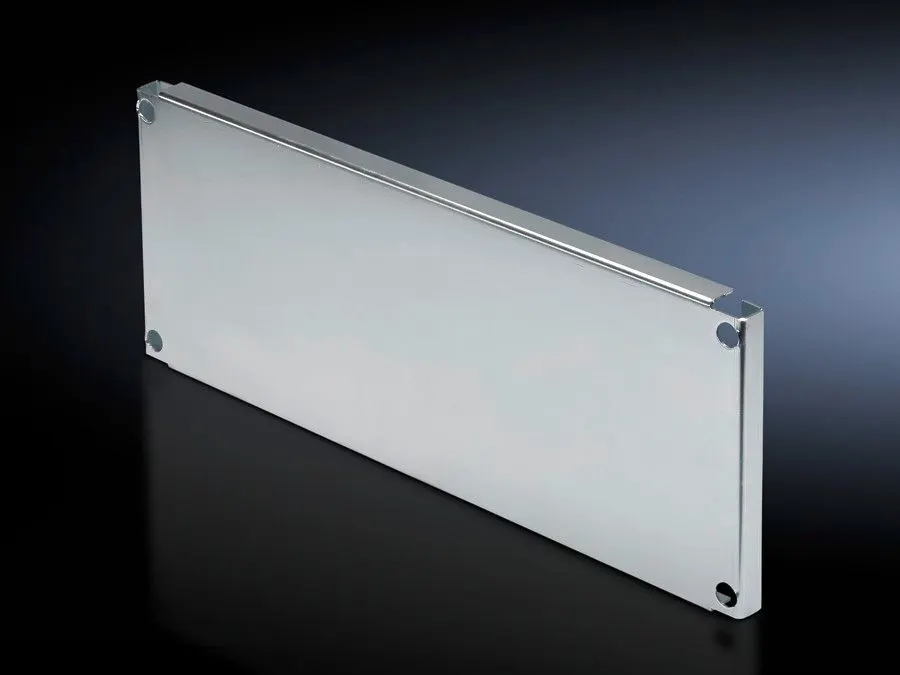

Rittal SV 9673.661 Partial mounting plate - TS 600 mm
Part Number: 9673661
Manufacturer
Rittal
Part number
9673661
Category
Alt Part Number
SV 9673.661
Quick Summary
Rittal SV 9673.661 Partial mounting plate is a practical solution that enables flexible interior mounting in TS enclosures for enhanced compartmentalisation. It addresses the common pain point of limited mounting levels by providing an additional mounting plane and direct attachment to compartment side panel modules. This solution is designed with robustness in mind, offering zinc-plated 2 mm sheet steel construction and compatibility with standard TS widths up to 600 mm. In addition to enabling universal interior installation for switchgear and controlgear, it supports Form 2, Form 3, or Form 4 configurations when used with divider systems. CE conformity considerations and IP-rated environments are achievable when paired with appropriate enclosures, underscoring clear business value for scalable installations and future upgrades.
Product Information
Extended Description
9673661 Rittal: SV Partial mounting plate, WH: 502x143 mm, for TS (B: 600 mm)
Article number
SV 9673.661
Design
Without duct
Product description
For direct attachment to the compartment side panel modules for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
150 mm
Dimensions
Width: 502 mm | Height: 143 mm
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
2.25 kg
Customs tariff number
73269098
EAN
4028177544116
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 502x143 mm, for TS (B: 600 mm)
Feature → Business Impact → Application: The SV 9673.661 adds a dedicated mounting plane within TS enclosures, expanding mounting options and reducing the need for bespoke rails. This translates to faster project setup and easier future reconfigurations, essential in evolving control and power distribution layouts. Application: Ideal for universal interior installation with switchgear and controlgear, enabling additional mounting levels when combined with compartment dividers and side panel modules, supporting tidy cable routing and modular expansion. Feature → Business Impact → Application: The plate is manufactured from 2 mm sheet steel and zinc-plated for corrosion resistance, delivering long-term reliability in industrial environments and lowering maintenance costs. Application: Suitable for Form 2–4 compartment configurations in industrial cabinets, improving consistency across multiple cabinets and reducing spare-part diversity. Feature → Business Impact → Application: Supplied with angle brackets and assembly parts, installation is straightforward, minimizing field labor and rework. Application: Compatible with TS B 600 mm width and 502x143 mm footprint, enabling plug-and-play compatibility with existing enclosure families and side panels. Feature → Business Impact → Application: The design without duct provides a versatile base for varied interior layouts, reducing design-completion cycles and enabling rapid retrofits in existing systems. Application: Works well in refurbishments or upgrades where space is reallocated and additional mounting levels are required without modifying the enclosure exterior.
Get a Quick Quote for a Rittal 9673661
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673661?
Enquire Now
FAQs
The SV 9673.661 is designed for TS enclosures with a width of 600 mm and provides a 502x143 mm mounting footprint. It attaches directly to compartment side panel modules and enables additional mounting levels for universal interior installation, making it suitable for Form 2 to Form 4 compartment configurations.
By adding a dedicated mounting plane, the plate expands interior mounting options beyond fixed rails, allowing more flexible arrangement of switchgear and controlgear. This reduces layout constraints, simplifies future reconfigurations, and improves cable management with cleaner pathways and easier access for maintenance.
The product data does not specify CE or IP ratings for the plate itself. In practice, CE conformity and IP suitability depend on the companion enclosure and assembled system. Use with a CE-marked enclosure and an appropriate IP-rated cabinet to ensure overall regulatory compliance and environmental protection for the final installation.
Plan for direct attachment to compartment side panel modules, with the supplied angle brackets and assembly parts. The plate is 2 mm zinc-plated sheet steel, weighs 2.25 kg per pack, and fits TS enclosures up to 600 mm wide. Ensure compatibility with your existing compartment dividers and side panels to maximize mounting levels and maintain wiring discipline.
The plate enables more efficient space utilization and standardized mounting interfaces, reducing the need for custom rails and complex retrofits. This translates to lower installation labor, faster project delivery, easier future upgrades, and lower long-term maintenance costs due to cleaner layouts and modular expansion capabilities.
