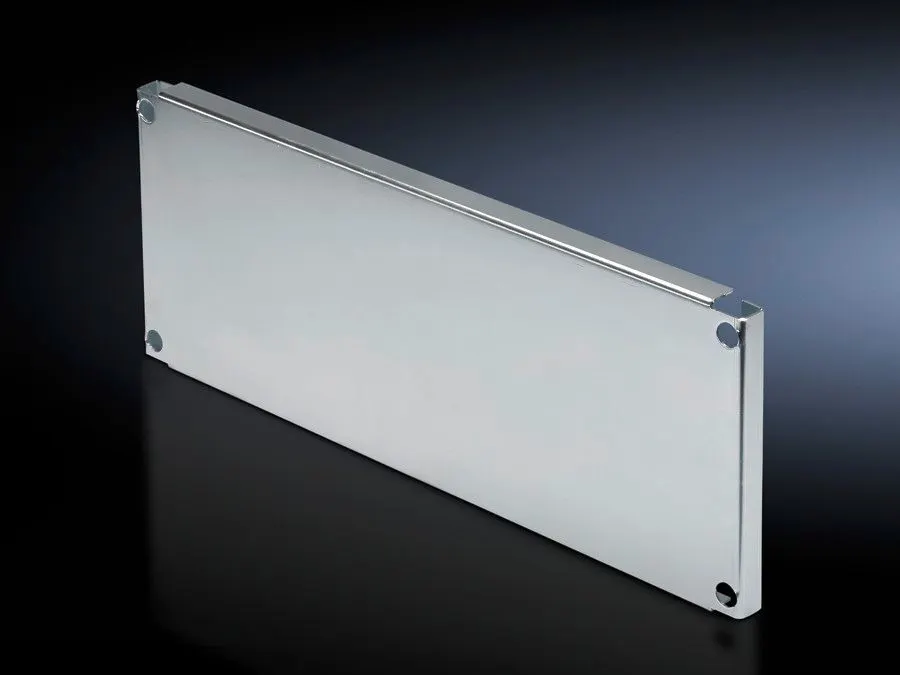

Rittal SV 9673.662 Partial mounting plate - Without duct
Part Number: 9673662
Manufacturer
Rittal
Part number
9673662
Category
Alt Part Number
SV 9673.662
Quick Summary
Rittal SV 9673.662 Partial mounting plate enables modular internal mounting for TS enclosures. This accessory supports direct attachment to compartment side panels, enabling additional mounting levels and neater interior layouts. While common standards such as CE conformity, IP protection and SIL readiness guide safe installations, always verify the exact certification scope with your supplier. This solution delivers reliable internal compartmentalisation with switchgear and controlgear, helping streamline installation timelines and improve cabinet organization for streamlined operations and reduced commissioning time.
Product Information
Extended Description
9673662 Rittal: SV Partial mounting plate, WH: 502x193 mm, for TS (B: 600 mm)
Article number
SV 9673.662
Design
Without duct
Product description
For direct attachment to the compartment side panel modules for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
200 mm
Dimensions
Width: 502 mm | Height: 193 mm
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
2.85 kg
Customs tariff number
73269098
EAN
4028177544109
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 502x193 mm, for TS (B: 600 mm)
Feature → Business Impact → Application: The plate uses 2 mm sheet steel and a zinc-plated finish, delivering durable corrosion resistance and long-term reliability in demanding cabinet environments. This translates to lower maintenance costs and extended service intervals when used in TS enclosures for panel assemblies. Application: ideal for universal interior installation alongside compartment dividers and side panel modules to create modular mounting levels for power and control devices. Feature → Business Impact → Application: Direct attachment to the compartment side panel modules supports internal compartmentalisation without duct, enabling faster installation and cleaner cable routing in compact spaces. Application: optimal for TS configurations with a width of 600 mm and a compartment height of 200 mm. Feature → Business Impact → Application: Supplied with angle brackets and assembly parts simplifies procurement and on-site assembly, reducing vendor coordination and project lead times. Application: suitable for single-pack deployments in standard TS setups and scalable for multi-level control gear layouts. Feature → Business Impact → Application: Precise dimensions (Width 502 mm, Height 193 mm) ensure predictable fit within existing TS frames, minimizing alignment issues during retrofits or new builds. Application: ideal for upgrading or expanding interior mounting capacity in modular switchgear installations. Feature → Business Impact → Application: Product classifications (ETIM EC002525, ECLASS 27400613) support easier ordering and cross‑reference in ERP and procurement systems. Application: aligns with industry-standard data models for industrial components and ensures compatibility with digital catalogs and BOMs.
Get a Quick Quote for a Rittal 9673662
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673662?
Enquire Now
FAQs
Begin by aligning the plate with the compartment side panel modules inside the TS enclosure. Use the supplied angle brackets and hardware to secure the plate to the module framework, ensuring a level surface for the added mounting levels. Verify clearance for any existing control gear and conductor routing before final fastening to prevent interference.
The mounting plate measures 502 mm in width and 193 mm in height. It is designed for TS widths up to 600 mm and supports a compartment height of 200 mm. The weight per pack is 2.85 kg, and packs are sold individually, simplifying inventory and sequencing for project scopes.
This plate excels at internal compartmentalisation, enabling additional mounting levels for switchgear and controlgear within TS enclosures. It supports direct attachment to compartment side panels and works well with compartment dividers and side panel modules to improve organization, airflow, and future expansion without increasing enclosure footprint.
Certification specifics should be confirmed with the supplier for your region. While the plate features corrosion-resistant zinc-plated steel and standard mounting compatibility, CE conformity and IP ratings depend on the overall cabinet configuration and regional standards. Validate your exact requirements during order or via technical documentation from Rittal.
By enabling additional mounting levels and streamlined interior layouts, the plate reduces assembly time and minimizes wiring complexity, lowering labor costs and commissioning risk. The durable steel construction reduces maintenance over the cabinet life, and modular expansion supports future upgrades without full cabinet replacement, delivering measurable total cost of ownership improvements.
