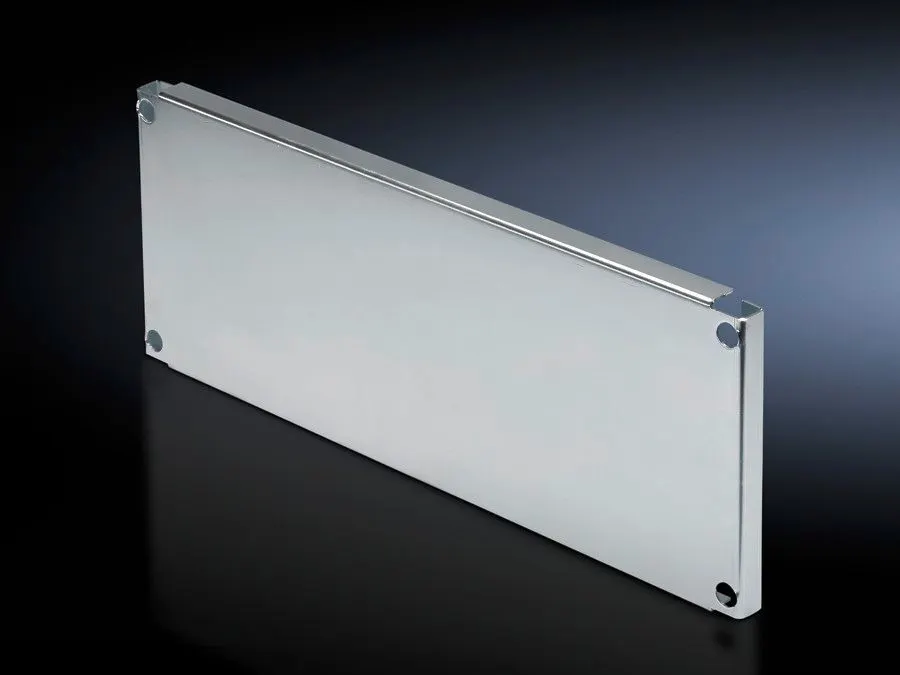

Rittal SV 9673.663 Partial mounting plate - For TS 600 mm
Part Number: 9673663
Manufacturer
Rittal
Part number
9673663
Category
Alt Part Number
SV 9673.663
Quick Summary
Rittal SV 9673.663 Partial mounting plate enables internal compartmentalisation inside TS enclosures. Many engineers struggle with limited space and rigid, single-level layouts inside switchgear cabinets. It aligns with ETIM EC002525 and ECLASS 27400613 standards, and its zinc-plated 2 mm sheet steel construction ensures long-term durability. This mounting accessory increases mounting density and modularity while allowing direct attachment to compartment side panels, supporting future upgrades and easier maintenance. For space-constrained control spaces, it reduces cable routing complexity and enables additional mounting levels when used with compartment dividers, delivering faster assembly and lower total cost of ownership.
Product Information
Extended Description
9673663 Rittal: SV Partial mounting plate, WH: 502x293 mm, for TS (B: 600 mm)
Article number
SV 9673.663
Design
Without duct
Product description
For direct attachment to the compartment side panel modules for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
300 mm
Dimensions
Width: 502 mm | Height: 293 mm
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
4.05 kg
Customs tariff number
73269098
EAN
4028177544093
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 502x293 mm, for TS (B: 600 mm)
Feature → Business Impact → Application: Universal interior installation with switchgear and controlgear enables creation of additional mounting levels, increasing space utilization and reducing the need for cabinet expansion; Application: ideal for TS enclosures where modularity and future reconfiguration are required. Feature → Business Impact → Application: Sheet steel, 2 mm, zinc-plated construction provides durability and corrosion resistance, extending service life in harsh environments; Application: suitable for long-term installation inside standard TS cabinets. Feature → Business Impact → Application: Weight per pack 4.05 kg and single-pack packaging simplify handling, transport, and inventory control; Application: efficient stocking for maintenance crews. Feature → Business Impact → Application: Supplied with angle brackets and assembly parts facilitates quick, error-free mounting; Application: reduces installation time and equipment downtime. Feature → Business Impact → Application: Compatibility with compartment dividers and side panel modules enables internal compartmentalisation in Form 2 to Form 4; Application: supports compliant electrical zoning and safer cable management.
Get a Quick Quote for a Rittal 9673663
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673663?
Enquire Now
FAQs
To install the SV 9673.663, secure the plate to the compartment side panels using the included angle brackets and assembly parts. Ensure alignment with the TS width (600 mm) and remove or relocate existing components to maintain clearances. The installation creates added mounting levels for switchgear and controlgear, reducing assembly time and future reconfiguration effort.
The plate measures 502x293 mm (WH 502x293 mm) and is made from 2 mm sheet steel with a zinc-plated surface for durability. It is designed for direct attachment to compartment side panel modules and supports internal compartmentalisation up to Form 4 when used with dividers.
Yes. SV 9673.663 is intended for universal interior installation with switchgear and controlgear and is compatible with compartment dividers and side panel modules to enable Form 2 through Form 4 compartmentalisation. This compatibility helps optimize space and improve cable management inside TS enclosures.
SV 9673.663 references ETIM 9 EC002525 and ECLASS 8.0 27400613, indicating alignment with standardised electrical part classifications. While not listing CE or IP certifications in the data, these standards support consistent specification and procurement in industrial automation projects.
The mounting plate increases modularity and mounting density, enabling faster assembly and easier future upgrades. By reducing the need for additional cabinets and simplifying cable routing, it lowers installation labor, spare parts, and maintenance time over the cabinet’s life cycle.
