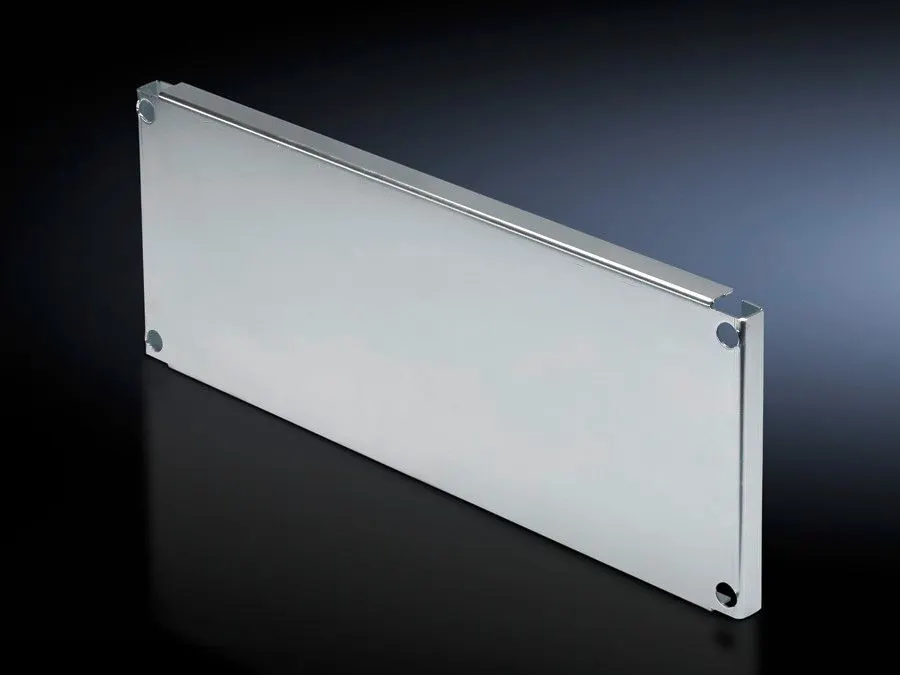

Rittal SV 9673.664 Partial mounting plate - Without duct
Part Number: 9673664
Manufacturer
Rittal
Part number
9673664
Category
Alt Part Number
SV 9673.664
Quick Summary
Rittal SV 9673.664 partial mounting plate enables direct attachment to TS side panels for internal compartmentalisation. Engineers often struggle to add mounting levels without sacrificing space or protection in compact enclosures. This data references ETIM 9 and ECLASS 8 classifications to support accurate product categorisation; for formal certifications such as CE or IP, consult the manufacturer datasheet. Designed for scalable, efficient installation, it complements Rittal mounting hardware and enhances layout flexibility within TS systems.
Product Information
Extended Description
9673664 Rittal: SV Partial mounting plate, WH: 502x393 mm, for TS (B: 600 mm)
Article number
SV 9673.664
Design
Without duct
Product description
For direct attachment to the compartment side panel modules for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
400 mm
Dimensions
Width: 502 mm | Height: 393 mm
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
5.25 kg
Customs tariff number
73269098
EAN
4028177543874
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 502x393 mm, for TS (B: 600 mm)
Feature: Direct attachment to compartment side panel modules enables internal compartmentalisation. Benefit: Increases mounting density and enables more efficient use of enclosure real estate, reducing overall system footprint and installation time. Application: TS enclosures with 600 mm width and modular interior configurations. Feature: 2 mm sheet steel with zinc-plated finish provides robust mechanical protection. Benefit: Improves corrosion resistance and long-term durability in harsh industrial environments. Application: Factory automation, electrical control panels, and switchgear installations. Feature: Supplied with angle brackets and assembly parts for quick setup. Benefit: Faster commissioning, reduced parts hunting, and consistent installation quality. Application: OEM assembly lines and serviceable control cabinets. Feature: WH 502x393 mm dimensions and 400 mm compartment height support clear, scalable layouts. Benefit: Predictable fitment with existing TS components, minimizing retrofit costs. Application: Internal compartmentalisation using dividers and side panel modules for Form 2, Form 3, or Form 4 configurations. Feature: Weight per pack 5.25 kg and 1 pack per order provides straightforward handling. Benefit: Manageable shipping and on-site handling, lowering labor costs. Application: Standardized impulse purchases for maintenance inventory and project kickoffs.
Get a Quick Quote for a Rittal 9673664
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673664?
Enquire Now
FAQs
Install by aligning the plate with the TS side panels, then secure using the included angle brackets and assembly parts. The plate is designed for direct attachment to compartment modules and supports additional mounting levels for internal organisation.
The plate accommodates WH 502x393 mm and is specified for a 400 mm compartment height, with a 600 mm width fitment requirement to ensure proper integration with TS systems.
Yes. When used with compartment dividers and side panel modules, the plate supports internal compartmentalisation aligned with Form 2, 3, or 4 configurations, enabling scalable layout options.
The package includes angle brackets and assembly parts, designed to be compatible with Rittal TS components, allowing quick and reliable integration with existing mounting hardware.
The plate is made from 2 mm sheet steel with a zinc-plated finish, delivering corrosion resistance and long-term durability suitable for demanding industrial environments.
