Rittal 9673672 Mounting plate - insulating gland
Part Number: 9673672
Manufacturer
Rittal
Part number
9673672
Category
Alt Part Number
SV 9673.672
Quick Summary
Rittal 9673672 mounting plate provides direct attachment to side panels for flexible internal compartmentalisation in switchgear and controlgear enclosures. Space constraints and complex layouts often complicate efficient cable routing and mounting plans, but this plate enables additional mounting levels and cleaner, faster installations. While the datasheet does not list SIL, CE, or IP ratings, the design uses 2 mm sheet steel, zinc plating, and an insulating gland to support safe, durable installations in standard enclosure environments. This solution aligns with TS cabinet architectures and reduces field fabrication, enabling repeatable configurations. By pairing with compartment dividers and side panel modules, engineers can achieve Form 2, 3, or 4 segmentation and scalable, serviceable layouts that drive installers’ productivity and maintenance efficiency.
Product Information
Extended Description

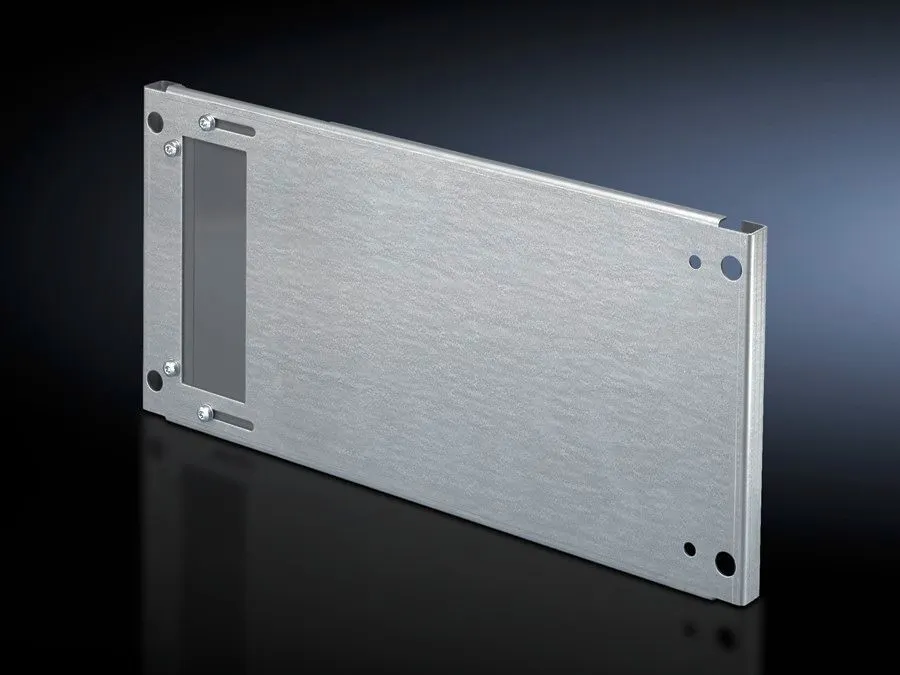

9673672 Rittal: SV Partial mounting plate, WH: 502x193 mm, with duct, for TS (B: 600 mm)
Article number
SV 9673.672
Design
with gland made from insulating material
Product description
For direct attachment to the compartment side panel modules for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
200 mm
Dimensions
Width:Â 502 mm | Height:Â 193 mm
To fit
Width:Â = 600 mm
Packs of
1 pc(s).
Weight/pack
2.6 kg
Customs tariff number
73269098
EAN
4028177543928
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 502x193 mm, with duct, for TS (B: 600 mm)
Feature: 2 mm sheet steel construction with zinc-plated finish. Business Impact: Enhanced mechanical strength and corrosion resistance, extending enclosure life in harsh environments. Application: Ideal for TS-based cabinets where long-term reliability and low maintenance are required. Feature: Insulating gland integrated into the design. Business Impact: Improves electrical safety by mitigating leakage paths and enabling compliant internal layouts. Application: Suitable for universal interior installation with switchgear and controlgear. Feature: Dimensions 502 x 193 mm with compatibility to 600 mm width. Business Impact: Streamlines space planning and allows precise mounting level stacking. Application: Supports additional mounting levels and Form 2/3/4 compartmentalisation when used with dividers and side panels. Feature: Supplied with angle brackets and assembly parts. Business Impact: Reduces procurement time and on-site installation time, lowering total installed cost. Application: Enables quick, repeatable installations across multiple enclosures. Feature: Weight per pack 2.6 kg. Business Impact: Manageable weight facilitates safer, faster mounting and reduces handling strain. Application: Easy to handle during upgrades or reconfiguration in growing control architectures.
