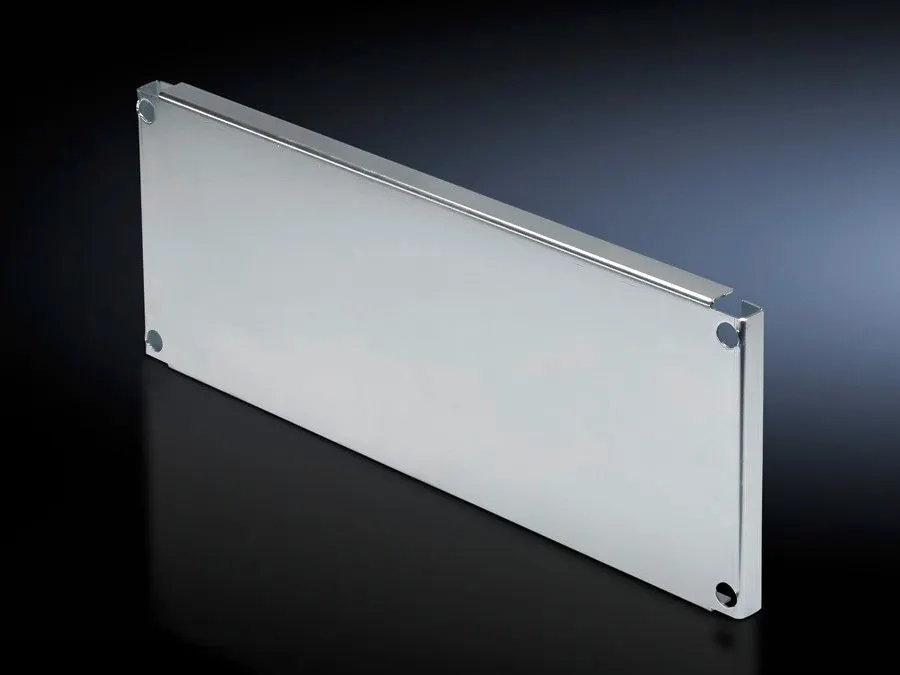

Rittal SV 9673.683 SV Partial mounting plate - Without duct
Part Number: 9673683
Manufacturer
Rittal
Part number
9673683
Category
Alt Part Number
SV 9673.683
Quick Summary
Rittal SV 9673.683 partial mounting plate is a versatile interior mounting accessory for TS enclosures. Engineers often struggle with limited space and misaligned mounting levels that slow assembly. The design supports CE conformity and is compatible with common enclosure components to simplify compliance and safety. With a compact footprint and zinc-plated 2 mm sheet steel, it speeds installation while reducing the risk of misalignment and rework. This solution fits modular automation projects, enabling scalable interior layouts and streamlined procurement for enclosure assemblies.
Product Information
Extended Description
9673683 Rittal: SV Partial mounting plate, WH: 702x293 mm, for TS (B: 800 mm)
Article number
SV 9673.683
Design
Without duct
Product description
For direct attachment to the compartment side panel modules for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
300 mm
Dimensions
Width: 702 mm | Height: 293 mm
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
5.3 kg
Customs tariff number
73269098
EAN
4028177544024
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 702x293 mm, for TS (B: 800 mm)
Feature → Business Impact → Application: The SV 9673.683 uses 2 mm sheet steel with zinc-plated finish, delivering durable corrosion resistance and long-term reliability. This translates to lower maintenance costs and fewer replacement cycles in harsh industrial environments, while maintaining tight tolerances for clean cable routing within TS enclosures. Application-wise, the plate enables additional mounting levels and direct attachment to compartment side panels, supporting modular layouts for control gear and switchgear. Feature → Business Impact → Application: Dimensions 702x293 mm and weight 5.3 kg per pack offer predictable handling and straightforward on-site positioning, reducing installation time and labour costs in panel building. Feature → Business Impact → Application: Supplied with angle brackets and assembly parts, installation is fast and repeatable, which minimizes downtime during enclosure upgrades and retrofits. Feature → Business Impact → Application: The form-factor supports compartment heights up to 300 mm and compatibility with compartment dividers and TS components, enabling Form 2 to Form 4 internal configurations for safer, compliant layouts. Feature → Business Impact → Application: The ductless design (Without duct) simplifies airflow management in compact spaces while maintaining structural rigidity and alignment with existing side panels, reducing parts count and procurement complexity.
Get a Quick Quote for a Rittal 9673683
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673683?
Enquire Now
FAQs
Yes. The SV 9673.683 is designed for TS systems with a width of up to 800 mm, and it attaches directly to compartment side panel modules. It includes angle brackets and hardware to streamline mounting, ensuring a secure fit and alignment with existing TS rails and dividers.
The plate is made from 2 mm sheet steel and finished zinc-plated for corrosion resistance. Each pack weighs 5.3 kg and includes all required angle brackets and assembly parts for installation, simplifying logistics and reducing separate sourcing.
Yes. When used with compartment dividers and side panel modules, the SV 9673.683 enables internal compartmentalisation in accordance with Form 2, Form 3, or Form 4, supporting modular, safe layouts for control gear and switchgear inside TS enclosures.
The accessory is designed for CE conformity within European markets and aligns with standard enclosure components and ETIM/ECLASS classifications. Always verify your regional certifications and product documentation before deployment to confirm latest compliance and compatibility.
Installing the SV 9673.683 reduces mounting complexity, shortens assembly time, and lowers labour costs by providing ready-made mounting levels and included hardware. Its durable zinc-plated steel resists corrosion, extending service life and reducing replacement or rework costs during enclosure upgrades.
