Rittal 9673688 SV Partial mounting plate - Without duct
Part Number: 9673688
Manufacturer
Rittal
Part number
9673688
Category
Alt Part Number
SV 9673.688
Quick Summary
Rittal 9673688 SV Partial mounting plate enables direct mounting of switchgear in TS enclosures. This design addresses the common challenge of limited interior space by adding versatile mounting levels without enlarging the enclosure. Certifications are not specified in the provided data; consult the General Technical Information PDFs for CE/EN compliance details. The solution supports internal compartmentalisation for Form 2–4 using divider and side panel modules, ensuring modularity and scalable layouts. With a zinc-plated 2 mm sheet steel construction and a 702x793 mm footprint, it delivers durable, cost-effective upgrades to existing TS systems while aligning with standard enclosure assembly practices and field-installation workflows.
Product Information
Extended Description

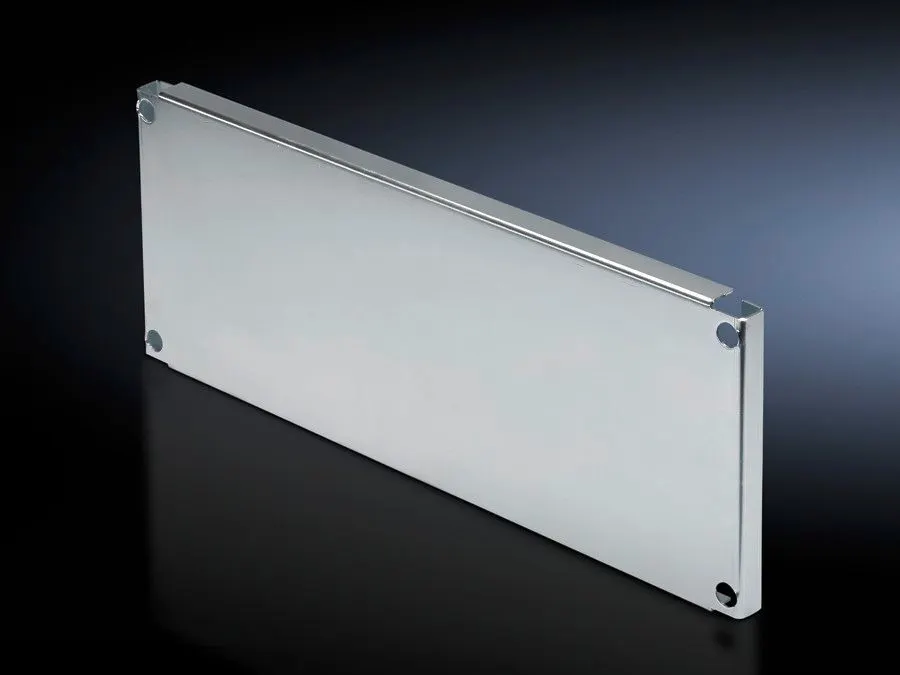

9673688 Rittal: SV Partial mounting plate, WH: 702x793 mm, for TS (B: 800 mm)
Article number
SV 9673.688
Design
Without duct
Product description
For direct attachment to the compartment side panel modules for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
800 mm
Dimensions
Width: 702 mm | Height: 793 mm
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
13 kg
Customs tariff number
73269098
EAN
4028177543980
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 702x793 mm, for TS (B: 800 mm)
Feature → Business Impact → Application: The plate is manufactured from 2 mm sheet steel and zinc-plated, delivering robust corrosion resistance and long service life in demanding control cabinet environments, which reduces maintenance costs and downtime. This translates to lower total cost of ownership for panel builders and maintenance teams, particularly in high-volume projects or retrofit scenarios. The 702x793 mm footprint is designed to fit TS enclosures with a B = 800 mm width, enabling seamless integration with existing compartmentalisation strategies and side panel modules. Application: use in universal interior installation with switchgear and controlgear to create additional mounting levels, improving space utilisation and allowing faster reconfiguration as your control system evolves. The included angle brackets and assembly parts simplify installation, reducing labour time and error rates during panel assembly. This supports lean construction practices and predictable project timelines. The design supports direct attachment to compartment side panels, which minimizes misalignment risks and improves serviceability during maintenance. Application: ideal for modular automation solutions where quick changes and scalable layouts are essential, such as automated production lines or highly custom enclosures. The product’s zinc-plated finish enhances durability in industrial environments, meeting practical needs for rugged enclosure components and contributing to longer asset life in factory settings.
