Rittal SV 9673.692 Partial mounting plate - Zinc-plated 2 mm
Part Number: 9673692
Manufacturer
Rittal
Part number
9673692
Category
Alt Part Number
SV 9673.692
Quick Summary
Rittal SV 9673.692 partial mounting plate optimizes interior mounting for TS enclosure systems. This accessory enables direct attachment to compartment side panel modules to create additional mounting levels and improve space utilization. A common challenge is configuring efficient, code-compliant layouts in limited cabinet spaces; this plate supports universal interior installation with switchgear and controlgear, while enabling internal compartmentalisation in Form 2, 3 or 4 when used with dividers and side panels. The design features a 2 mm zinc-plated sheet steel construction and an insulating gland, paired with included angle brackets and assembly parts for straightforward installation. Its compact footprint (WH 702x193 mm) fits TS enclosures up to 800 mm wide, reducing integration time and total life-cycle cost. While specific CE or IP documentation isn't listed here, the product aligns with ETIM EC002525 and ECLASS 27400613 classifications to support procurement. In addition, it supports modular expansion and future upgrades, making it a practical choice for automation projects.
Product Information
Extended Description

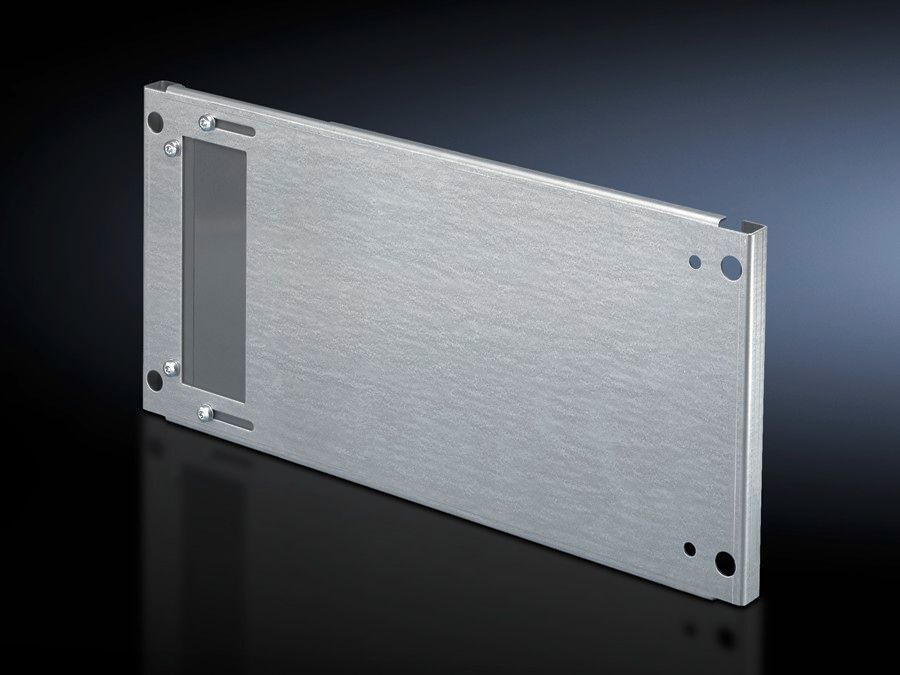

9673692 Rittal: SV Partial mounting plate, WH: 702x193 mm, with duct, for TS (B: 800 mm)
Article number
SV 9673.692
Design
with gland made from insulating material
Product description
For direct attachment to the compartment side panel modules for internal compartmentalisation. Universal interior installation with switchgear and controlgear. Creation of additional mounting levels. In combination with compartment dividers and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Angle brackets and assembly parts
For compartment height
200 mm
Dimensions
Width:Â 702 mm | Height:Â 193 mm
To fit
Width:Â = 800 mm
Packs of
1 pc(s).
Weight/pack
3.6 kg
Customs tariff number
73269098
EAN
4028177605435
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Partial mounting plate, WH: 702x193 mm, with duct, for TS (B: 800 mm)
Feature is a partial mounting plate designed for TS enclosure interior mounting. Business impact is to create flexible mounting levels and improve space utilization, enabling cleaner cable routing and quicker installations in tight cabinets. Application includes universal interior installation with switchgear and controlgear and, in combination with compartment dividers and side panel modules, supports Form 2, 3 or 4 internal compartmentalisation. The gland is made from insulating material to help with dielectric separation and reduce potential arcing or thermal transfer between compartments. The 2 mm zinc-plated sheet steel delivers durability and corrosion protection in industrial environments, while the 702x193 mm footprint is optimized for TS enclosures up to 800 mm wide. Supplied with angle brackets and assembly parts to reduce on-site sourcing and assembly time. This solution integrates with existing Rittal components, enabling scalable layouts and future-proof configurations. The weight per pack is 3.6 kg, with 1 piece per pack, facilitating predictable transport and inventory planning.
