Rittal SV 9673.901 Frame Connector for TS 8 17x17
Part Number: 9673901
Quick Summary
Rittal SV 9673.901 is a frame connector for TS punched rails sized 17x17 mm that enables secure rail mounting inside TS 8 enclosures. This piece minimizes misalignment during assembly by providing an integral M4 threaded hole that ensures a stable, repeatable connection. It aligns with industry classifications such as ETIM 9 EC002525 and ECLASS 8.0 27189234, supporting consistent data across catalogs and procurement systems. For installers and design engineers, the assembly parts included simplify installation, while installation options on horizontal TS and VX SE enclosure sections support rapid, scalable cabinet builds. In short, this connector delivers reliable rigidity, predictable wiring routes, and improved project timelines with standardized quality across multiple enclosures.
Product Information
Extended Description
9673901 Rittal: SV Frame connector piece, for punched rail 17x17 mm
Article number
SV 9673.901
Product description

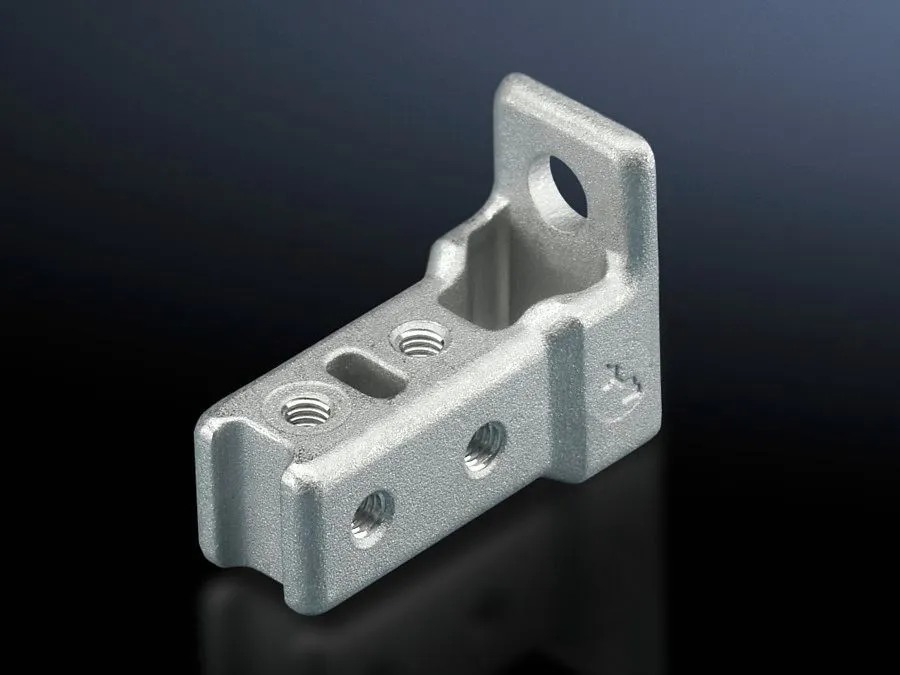

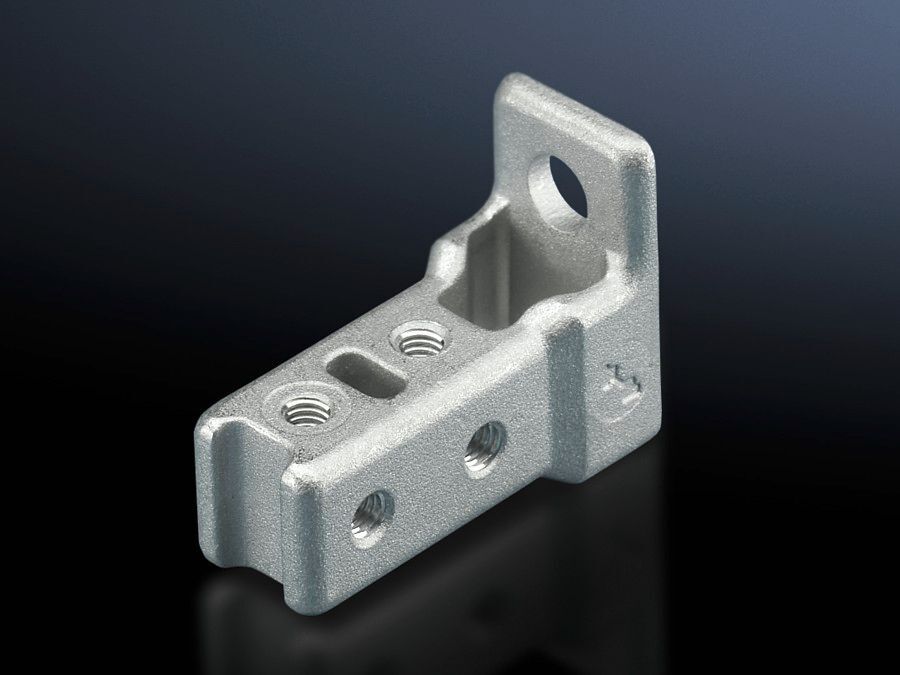

Mounting piece with integral M4 threaded holes for attaching the TS punched rail 17 x 17 mm
Applications
Inserted into the TS pitch as a self-holding construction and fastened with a screw to the frame.
Material
Die-cast zinc
Supply includes
Assembly parts
Installation options
On the horizontal TS, VX SE enclosure section
To fit enclosure type
TS 8
Packs of
24 pc(s).
Weight/pack
1.176 kg
Customs tariff number
79070000
EAN
4028177543201
ETIM 9
EC002525
ECLASS 8.0
27189234
Product description
SV Frame connector piece, for punched rail 17x17 mm
Feature: Integral M4 threaded holes provide direct mounting support, reducing the number of fasteners and alignment steps. Business impact: Faster assembly, fewer misalignments, and lower labor costs on site. Application: Ideal for mounting TS punched rails to enclosure frames with repeatable accuracy. Feature: Die-cast zinc construction delivers high stiffness and corrosion resistance, increasing enclosure longevity in industrial environments. Business impact: Longer service life and lower maintenance costs, especially in harsh factories. Application: Use in TS 8 enclosures where rugged mounting is required. Feature: Compatibility with TS 8 and TS punched rails 17x17 mm ensures broad applicability across Rittal cabinets, reducing design changes. Business impact: Streamlined procurement and fewer part substitutions. Application: Suitable for standardized control panels and module racks. Feature: Supplied assembly parts simplify stocking and logistics; packs of 24 pieces with a total weight of 1.176 kg per pack. Business impact: Easier inventory planning and bulk purchasing, lower handling overhead. Application: Centralized distribution for OEMs and integrators. Feature: Installation options on horizontal TS and VX SE enclosure sections give installers flexible mounting positions. Business impact: Improves layout flexibility and reduces need for rework when cabinet configurations change. Application: Optimized for modular builds and scalable control cabinets. Objection handling: When field space is constrained or rail alignment is critical, the frame connector’s self-holding insertion into the TS pitch and final fastening with a screw to the frame eliminates misalignment and speeds up commissioning.
Get a Quick Quote for a Rittal 9673901
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673901?
Enquire Now
FAQs
Yes. The SV 9673.901 is designed specifically for TS punched rails measuring 17x17 mm and for TS 8 enclosure types. It features integral M4 threaded holes and includes the necessary assembly parts. It can be installed on the horizontal TS rails or VX SE enclosure sections, ensuring reliable rail attachment within TS 8 cabinets.
The connector is made from die-cast zinc, offering high stiffness and corrosion resistance suitable for industrial environments. It ships in packs of 24 pieces, with a total pack weight of 1.176 kg, aiding bulk procurement and inventory planning while keeping handling manageable on site.
It inserts into the TS pitch as a self-holding construction and is fastened with a screw to the frame, delivering precise alignment and a rigid mounting point for the TS 17x17 mm rail. This simplifies assembly sequencing and reduces rework during cabinet builds.
The part aligns with ETIM 9 EC002525 and ECLASS 8.0 27189234 standards, enabling consistent cataloging and data-driven procurement across multiple ERP and purchasing platforms.
By providing a reliable, repeatable mounting solution with pre-supplied assembly parts and flexible installation options, this connector reduces install time, minimizes misalignment, and speeds up change management for evolving cabinet designs, delivering faster project turnarounds and lower handling costs.
