Rittal 9673902 Corner Connector - 17x17 mm TS Rail
Part Number: 9673902
Quick Summary
Rittal corner connector enables 90° rail joins on TS punched rails for compact enclosures. Engineers often struggle with misalignment and gaps when expanding modular rail systems in control cabinets. The data aligns with ETIM EC002525 and ECLASS 27189234, supporting consistent procurement and documentation, while the die-cast zinc construction provides robust, durable mounting suitable for DIN rail mounting environments. With integral M4 threaded holes and included assembly parts, installation is straightforward, reducing field assembly time and risk of loose connections. Designed for efficient enclosure design workflows, this connector helps maintain precise alignment across corners, delivering reliable electrical grounding paths and streamlined cabinet layouts.
Product Information
Extended Description

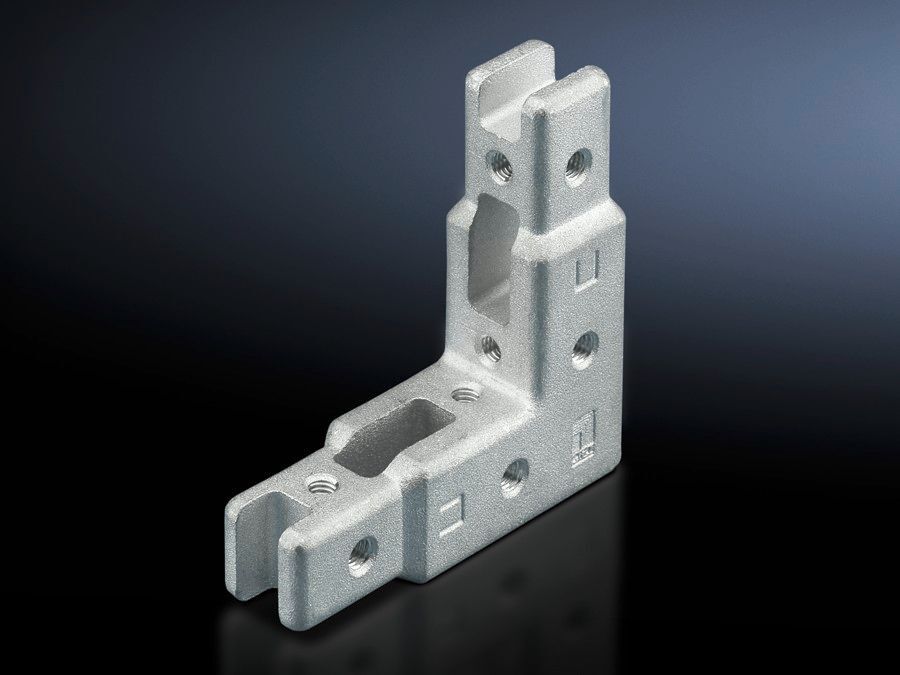

9673902 Rittal: SV Corner connector, for punched rail 17x17 mm
Article number
SV 9673.902
Product description
Mounting piece with integral M4 threaded holes.
Applications
For connecting two TS punched rails at an angle of 90° across the corner
Material
Die-cast zinc
Supply includes
Assembly parts
Packs of
10 pc(s).
Weight/pack
1.09 kg
Customs tariff number
79070000
EAN
4028177543218
ETIM 9
EC002525
ECLASS 8.0
27189234
Product description
SV Corner connector, for punched rail 17x17 mm
The 90° corner connection for TS punched rails ensures precise, square joints, reducing misalignment and the need for shims, which speeds up assembly and minimizes field errors. This directly improves enclosure integrity and reduces rework on critical control panel installations. Die-cast zinc construction delivers durable, corrosion-resistant mounting capable of withstanding industrial environments, lowering maintenance costs and extending service life in motor control centers and PLC cabinets. Integral M4 threaded holes provide built-in mounting points for fasteners and accessories, reducing hardware counts and the risk of loosened connections in vibration-prone environments. The supply includes assembly parts and packs of 10, simplifying BOM planning and inventory management, while the 1.09 kg per pack aids shipping and stocking efficiency. Compatibility with 17x17 mm punched rails ensures you maintain standardization across projects, supporting accurate data in ERP and procurement systems. ETIM EC002525 and ECLASS 27189234 classifications help align engineering documentation with supplier catalogs, enabling faster quoting and consistent specification.
Get a Quick Quote for a Rittal 9673902
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673902?
Enquire Now
FAQs
The SV 9673.902 uses integral M4 threaded holes to securely fasten two TS punched rails at a 90° angle. Install with standard M4 fasteners, ensuring square alignment and a rigid corner joint. The assembly parts supplied simplify mounting and eliminate the need for separate adapters in most applications.
Yes. The connector is designed for TS punched rails with 17x17 mm cross-section used in common DIN rail mounting systems. Its die-cast zinc body provides robust support for additional accessories and brackets, while the built-in M4 holes allow straightforward integration with existing mounting hardware.
Verify article number SV 9673.902, product description 'SV Corner connector for punched rail 17x17 mm', and EAN 4028177543218. The part is die-cast zinc, includes assembly parts, and is supplied in packs of 10 with a weight of 1.09 kg per pack. Also confirm ETIM EC002525 and ECLASS 27189234 compatibility data in your system.
The data set provides ETIM EC002525 and ECLASS 27189234 references for classification and procurement consistency. Specific regulatory certifications such as CE, IP, or SIL are not listed in the provided data; verify your regional requirements with Rittal or your compliance team to ensure full regulatory alignment in your application.
Using the SV 9673.902 reduces misalignment risk and speeds corner joins, cutting installation time in cabinet builds. With assembly parts included and packs of 10, BOM accuracy improves and stocking is streamlined. Durable die-cast zinc construction lowers maintenance needs, delivering tangible savings over the lifecycle of automation enclosures.
