Rittal 9673920 SV Punched Rail - TS 8 compatibility
Part Number: 9673920
Quick Summary
Rittal 9673920 SV Punched Rail enables horizontal busbar space division in TS 8 enclosures. Engineers often face challenges arranging flexible, secure mounting while preserving access and serviceability. While the data does not list CE or IP certifications, the product uses zinc-plated 1.5 mm sheet steel and is designed for durability in enclosure applications. Its TS 8 compatibility supports reliable, modular busbar layouts, reducing part counts and speeding assembly. This solution complements broader busbar system designs and can be leveraged for cost-efficient, scalable enclosure configurations.
Product Information
Extended Description

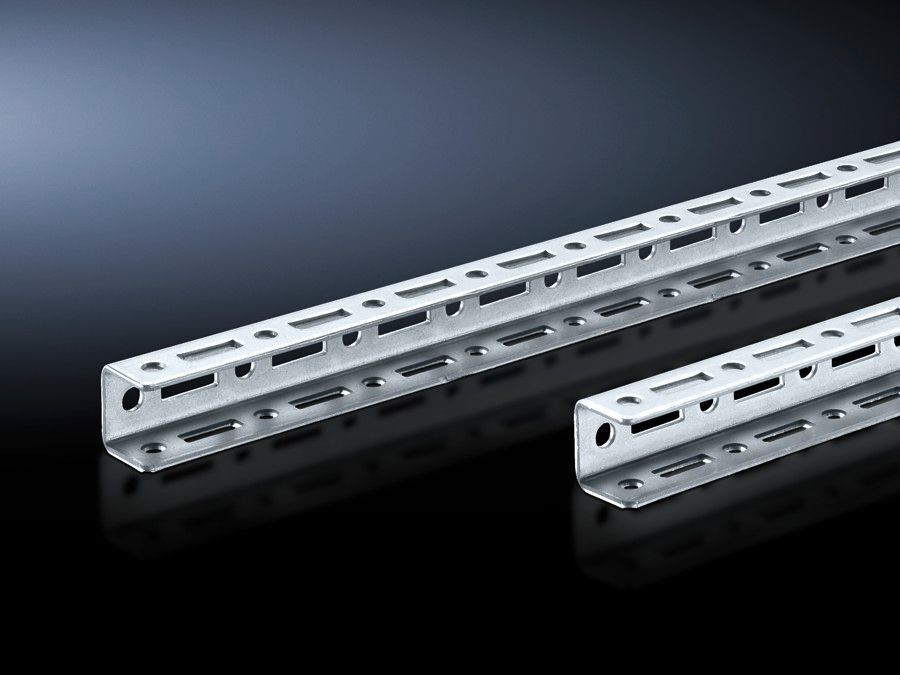

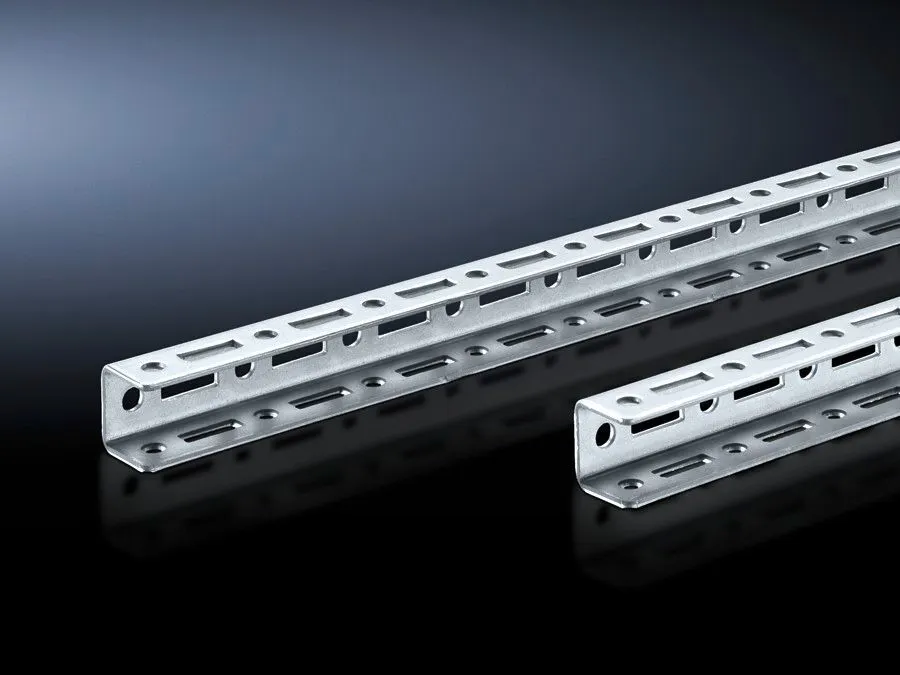

9673920 Rittal: SV Punched rail 17x17 mm, L: 137,5 mm, for TS
Article number
SV 9673.920
Design
For horizontal busbar space separation
Product description
Mounting angle with TS pitch on three sides. Suitable for building an auxiliary construction for dividing the busbar space, for individual use as a mounting frame for low and medium loads, and fastening to the internal or external mounting level of the TS 8 enclosure.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Length
137.5 mm
To fit
Enclosure type:Â TS 8
Packs of
12 pc(s).
Weight/pack
0.672 kg
Customs tariff number
73269098
EAN
4028177576728
ETIM 9
EC002525
ECLASS 8.0
27189234
Product description
SV Punched rail 17x17 mm, L: 137,5 mm, for TS
Feature: 17x17 mm punched rail and 137.5 mm length provides a precise, modular profile. Benefit: Enables predictable spacing for busbars, lowering misalignment risk and simplifying future upgrades. Application: TS 8 enclosure installations requiring clean busbar separation and straightforward mounting. Feature: Zinc-plated 1.5 mm sheet steel offers robust corrosion resistance. Benefit: Extends component life in harsh environments and reduces maintenance cycles. Application: Control panels and electrical enclosures exposed to humidity or dust. Feature: Mounting angle with TS pitch on three sides improves installation flexibility. Benefit: Facilitates an auxiliary structure for dividing busbar space and mounting to internal or external TS 8 levels. Application: Custom frames for low to medium load applications within TS 8 cabinets. Feature: Pack quantity of 12 with weight 0.672 kg per pack optimizes warehousing and logistics. Benefit: Streamlines stocking, reduces reorder complexity, and improves project planning. Application: Large-scale deployments across multiple panels requiring consistent component counts. Feature: GTIN 4028177576728 and ETIM/ECLASS codes ensure procurement traceability. Benefit: Enhances supplier integration and data quality in ERP systems. Application: RFQ and BOM management for standardized enclosure components.
Get a Quick Quote for a Rittal 9673920
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673920?
Enquire Now
FAQs
The SV 9673.920 is a punched rail with a 17x17 mm profile, 137.5 mm in length, designed for TS 8 enclosures. It creates modular busbar space separation and serves as a mounting frame for low to medium loads, compatible with internal or external TS 8 mounting levels.
Yes. The rail is specifically designed to fit TS 8 enclosure types, providing a reliable mounting angle and an auxiliary structure for busbar space division, which simplifies layout planning and installation.
Each pack contains 12 rails, with a total pack weight of 0.672 kg. This packaging supports efficient warehousing and stocking for projects with multiple panels requiring uniform components.
The rail is made from 1.5 mm sheet steel and finished with zinc plating. This combination provides structural strength and corrosion resistance suitable for enclosure environments typical in industrial settings.
Common applications include creating a shared, well-organized busbar space in TS 8 cabinets, and mounting frames for light to moderate loads. When installing, ensure TS 8 compatibility, maintain consistent spacing, and verify GTIN and part numbers are aligned with the project BOM for accurate procurement.
