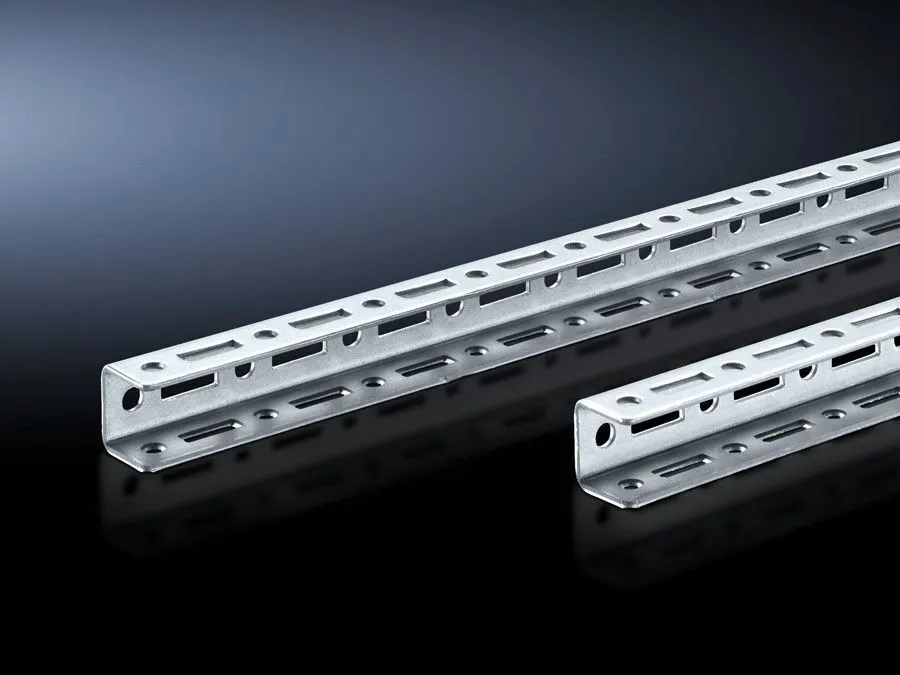

Rittal SV 9673.953 Punched Rail for TS 8 Enclosures
Part Number: 9673953
Quick Summary
SV 9673.953 is a punched rail that partitions busbar spaces in TS 8 enclosures. Engineers often struggle with space management, alignment, and secure mounting when expanding switchgear. It aligns with TS 8 enclosure standards and common European electrical practices, supporting safe, compliant installations. Made from 1.5 mm zinc-plated sheet steel, the rail offers mounting angles with TS pitch on three sides for precise positioning. At 487.5 mm long, it fits TS 8 frames while enabling reliable vertical separation of the busbar system in the top rear section. This accessory reduces installation downtime, improves space utilization, and enables scalable expansion for low to medium load applications, delivering measurable efficiency gains for panel builders and integrators.
Product Information
Extended Description
9673953 Rittal: SV Punched rail 17x17 mm, L: 487,5 mm, for TS
Article number
SV 9673.953
Design
For vertical separation with busbar system in the top rear section
Product description
Mounting angle with TS pitch on three sides. Suitable for building an auxiliary construction for dividing the busbar space, for individual use as a mounting frame for low and medium loads, and fastening to the internal or external mounting level of the TS 8 enclosure.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Length
487.5 mm
To fit
Enclosure type: TS 8
OUT_FUNCTIONAL_SPACE_HEIGHT_COL_SM
= 450 ‐ = 500
Packs of
12 pc(s).
Weight/pack
2.352 kg
Customs tariff number
73269098
EAN
4028177544833
ETIM 9
EC002525
ECLASS 8.0
27189234
Product description
SV Punched rail 17x17 mm, L: 487,5 mm, for TS
Feature: SV Punched rail 17x17 mm, 487.5 mm long, designed for TS 8 enclosures, creates a precise busbar space division. Business impact: The consistent profile reduces misalignment, speeds assembly, and minimizes rework. Application: Ideal for mounting in TS 8 control cabinets where space is tight and modular expansion is planned. Feature: 1.5 mm zinc-plated sheet steel with zinc finish. Business impact: Enhanced corrosion resistance and long-term mounting integrity in harsh environments, lowering maintenance costs. Application: Suitable for industrial control panels and environments with exposure to dust and humidity. Feature: mounting angles with TS pitch on three sides; supports vertical separation with the top rear busbar section. Business impact: Fast, repeatable alignment and secure attachment, enabling scalable layouts. Application: Building auxiliary constructions to divide busbar space within TS 8 enclosures. Feature: packs of 12; weight per pack 2.352 kg. Business impact: Simplifies procurement, inventory management, and logistics for panel builders. Application: Streamlined stocking for mid-volume production runs. Feature: Designed to fit TS 8 enclosures. Business impact: Ensures compatibility with standard TS 8 mounting rails and enclosure interfaces, reducing integration risk. Application: Retrofit and new builds requiring reliable TS 8 compatibility.
Get a Quick Quote for a Rittal 9673953
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673953?
Enquire Now
FAQs
Begin by aligning the rail with the TS 8 enclosure’s internal mounting plane. Use the three-sided TS pitch mounting angles to secure the rail at the top rear section, ensuring the 17x17 mm profile aligns with busbar spaces. Fasten with appropriate hardware, verify vertical separation, and check that the rail sits flat to avoid busbar misalignment during future expansions.
Key specs include a 17x17 mm punched rail profile, length of 487.5 mm, made from 1.5 mm zinc-plated sheet steel. It is designed to fit TS 8 enclosures, weighs 2.352 kg per pack, and is sold in packs of 12. The article number is SV 9673.953 with GTIN 4028177544833.
Yes. The rail serves as a mounting frame for low to medium loads and supports vertical separation within the TS 8 enclosure busbar system. Its precise dimensions and mounting angles enable modular expansions, simplified future reconfigurations, and orderly busbar layouts that reduce installation time and risk of cross-conduction.
The rail is specifically designed for TS 8 systems, featuring three-sided TS pitch mounting angles and a length that fits the enclosure’s internal framework. Its output is a secure mounting frame that integrates with the TS 8 mounting level, facilitating straightforward retrofits or new builds without custom fabrication.
Zinc-plated sheet steel provides corrosion resistance in typical panel environments. To maximize life, avoid abrasive cleaners that could remove the zinc layer, and inspect mounting points regularly for signs of corrosion or loosening hardware. Replace packs as needed to maintain consistent busbar spacing and enclosure integrity.
