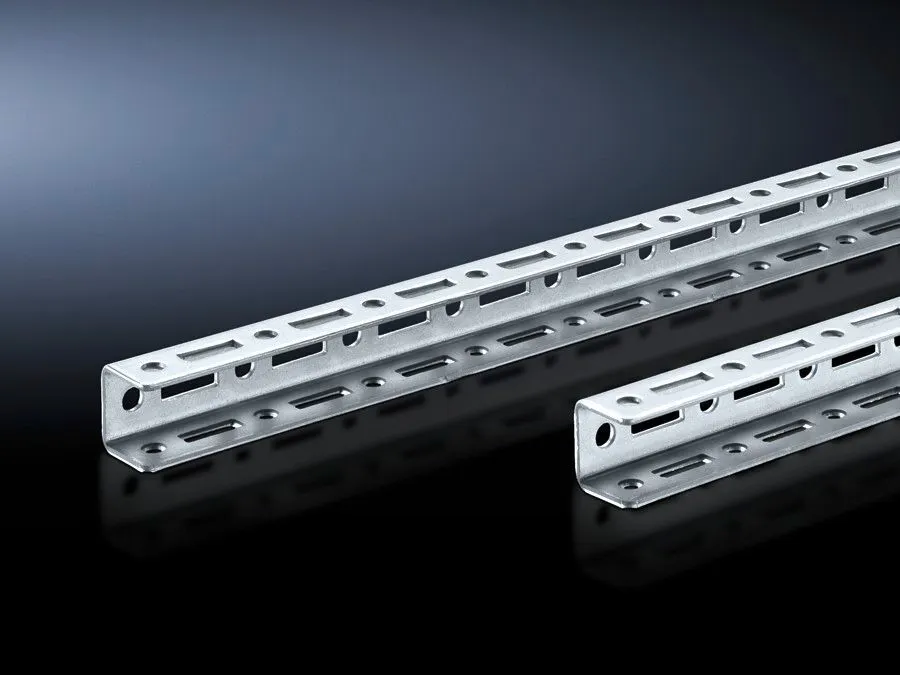

Rittal 9673983 SV Punched Rail for TS 8 – 787.5 mm
Part Number: 9673983
Quick Summary
Rittal 9673983 SV Punched Rail is a mounting rail for TS 8 enclosures that divides busbar space and supports mounting frames for low to medium loads. It addresses common panel-building challenges by providing a precise TS pitch on three sides, reducing misalignment during assembly. The part uses sheet steel, 1.5 mm with a zinc-plated finish, designed for durable service in industrial environments and to fit TS 8 enclosure systems. Note: the provided data does not specify CE, IP, or SIL certifications; verify compliance with Rittal before purchase. By integrating this rail into TS 8 solutions, engineers gain faster installation, improved busbar organization, and a scalable mounting platform that supports modular expansions.
Product Information
Extended Description
9673983 Rittal: SV Punched rail 17x17 mm, L: 787,5 mm, for TS
Article number
SV 9673.983
Product description
Mounting angle with TS pitch on three sides. Suitable for building an auxiliary construction for dividing the busbar space, for individual use as a mounting frame for low and medium loads, and fastening to the internal or external mounting level of the TS 8 enclosure.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Length
787.5 mm
To fit
Enclosure type: TS 8
OUT_FUNCTIONAL_SPACE_HEIGHT_COL_SM
= 650 ‐ = 800
Packs of
12 pc(s).
Weight/pack
4.992 kg
Customs tariff number
73269098
EAN
4028177576933
ETIM 9
EC002525
ECLASS 8.0
27189234
Product description
SV Punched rail 17x17 mm, L: 787,5 mm, for TS
Feature: SV Punched rail 17x17 mm, L 787.5 mm. Business impact: Enables precise busbar spacing and robust mounting for low to medium loads, reducing rework and installation time. Application: Fits TS 8 enclosures to support organized power distribution. Feature: Material and finish—sheet steel, 1.5 mm with zinc plating. Business impact: Provides durable, corrosion-resistant mounting rails suitable for harsh environments, lowering maintenance costs. Application: Ideal for industrial panels exposed to regular handling. Feature: Length and fitment—787.5 mm length, TS 8 compatibility. Business impact: Compatible with standard TS 8 mounting levels, accelerating layout planning and procurement. Application: Supports internal and external mounting levels on TS 8 enclosures. Feature: Pack size and weight—12 pieces per pack, 4.992 kg per pack. Business impact: Streamlines bulk purchasing and reduces freight cost per unit. Application: Suitable for multi-door installations and scalable panel builds. Feature: Documentation and classification compatibility—ETIM EC002525, ECLASS 27189234, EAN 4028177576933. Business impact: Simplifies part identification, ordering, and cross-reference in ERP. Application: Facilitates procurement workflows and compliance traceability.
Get a Quick Quote for a Rittal 9673983
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9673983?
Enquire Now
FAQs
Yes. The SV 9673.983 punched rail is designed to fit TS 8 enclosure systems. It features a 787.5 mm length and a 17x17 mm punched profile to align with TS mounting grids on three sides, ensuring precise TS pitch mounting. Verify enclosure model and internal mounting levels for optimum fit.
Confirm the article number SV 9673.983, the length 787.5 mm, and the material sheet steel 1.5 mm with zinc-plated finish. Check packs per carton (12 pc) and weight per pack (4.992 kg). Also note the EAN 4028177576933 and tariff code if needed for customs. Ensure TS 8 compatibility in your enclosure model.
This rail is ideal for dividing busbar spaces and providing mounting frames for low to medium loads inside TS 8 enclosures. It supports internal and external mounting levels and can streamline layout planning, reduce assembly time, and improve modular expansion capability in industrial panels.
The provided data does not specify CE, IP, or SIL certifications for this part. For safety and compliance, confirm with Rittal or your supplier that the accessory meets your project’s required CE marking and IP rating standards before deployment in critical environments.
By providing precise TS pitch mounting and a durable zinc-plated finish, the rail reduces on-site alignment errors and maintenance needs. Bundled with 12 pieces per pack and a 787.5 mm length, it supports scalable panel builds, lowers installation time, and improves long-term reliability of busbar layouts in TS 8 enclosures.
