Rittal SV 9674.056 Punched Section - TS 600 Enclosure
Part Number: 9674056
Manufacturer
Rittal
Part number
9674056
Category
Alt Part Number
SV 9674.056
Quick Summary
Rittal SV 9674.056 Punched Section enables Maxi-PLS or Flat-PLS busbars beneath circuit-breakers. Engineers often struggle with mounting flexibility and space constraints in compact TS enclosures, which this part helps mitigate. Certification context includes ETIM EC002525 and ECLASS 27400613 classifications; please verify CE or IP certifications with the supplier. By providing a robust mounting flange and a zinc-plated sheet-steel finish, this accessory supports faster installation, reliable busbar connections, and scalable layouts. In practice, it aligns with 600x600 TS enclosures, delivering safe, code-aligned busbar attachment for roof or base sections and reducing field modification time.
Product Information
Extended Description

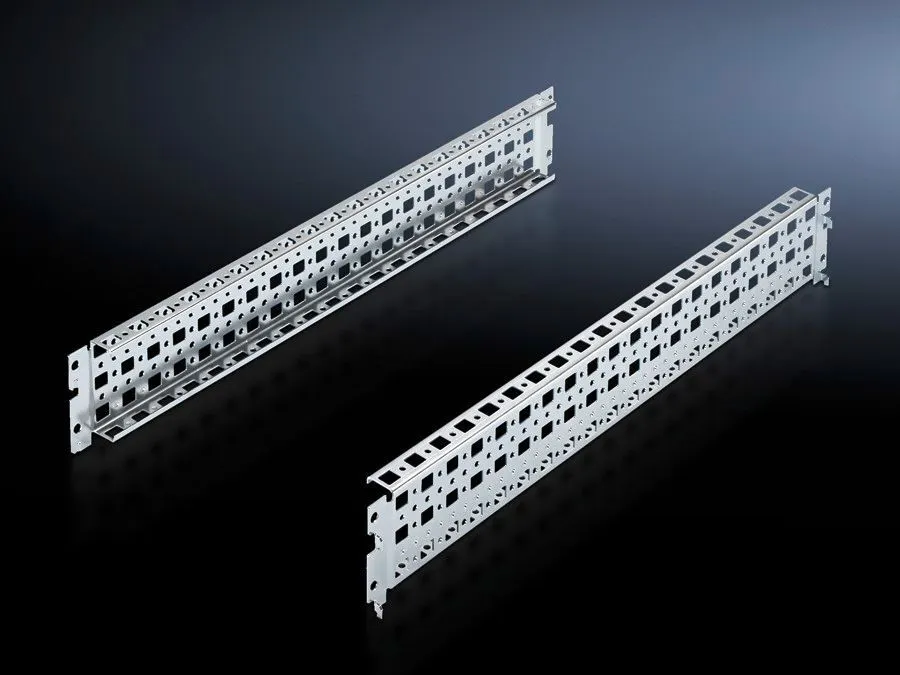

9674056 Rittal: SV Punched sections with mounting flange, for coupling section, for TS (W/D: 600 mm)
Article number
SV 9674.056
Product description
For assembling a Maxi-PLS or Flat-PLS busbar system directly beneath or above the circuit-breaker. This punched section with mounting flange may be used without conflict in conjunction with the compartment space side panel modules. It is attached to the outer level of the TS 8 enclosure system, but thanks to the PS punchings allows a mounting level as in the roof or base frame, thereby facilitating the use of busbar system attachment for the roof/base section.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type: TS | Width: = 600 mm | Depth: = 600 mm
Packs of
2 pc(s).
Weight/pack
1.348 kg
Customs tariff number
73269098
EAN
4028177626515
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Punched sections with mounting flange, for coupling section, for TS (W/D: 600 mm)
Feature → Business Impact → Application: The SV 9674.056 uses a mounting flange integrated into SV punched sections, which enables quick, secure coupling of busbar segments. This translates to reduced installation time and consistent electrical clearances during Maxi-PLS or Flat-PLS deployment in TS enclosures. Application: ideal for TS 600 mm wide and 600 mm deep enclosures, where space is at a premium and modularity matters for future busbar expansion. Feature → Business Impact → Application: Zinc-plated sheet steel provides corrosion resistance and a durable surface finish for long-term reliability in electrical cabinets. Application: suitable for industrial environments requiring robust mounting hardware that withstands vibration and temperature variations. Feature → Business Impact → Application: PS punchings enable mounting at roof or base levels, increasing layout flexibility. Application: supports seamless integration with the TS enclosure system and simplifies upgrading to larger busbar configurations. Feature → Business Impact → Application: Pack size of 2 with assembly parts reduces stocking complexity and ensures consistent installation kits. Application: convenient procurement for panel builders and maintenance teams. Feature → Business Impact → Application: Weight per pack (1.348 kg) facilitates planning for handling and transport. Application: helps with on-site logistics and install sequencing in busy switchgear rooms.
