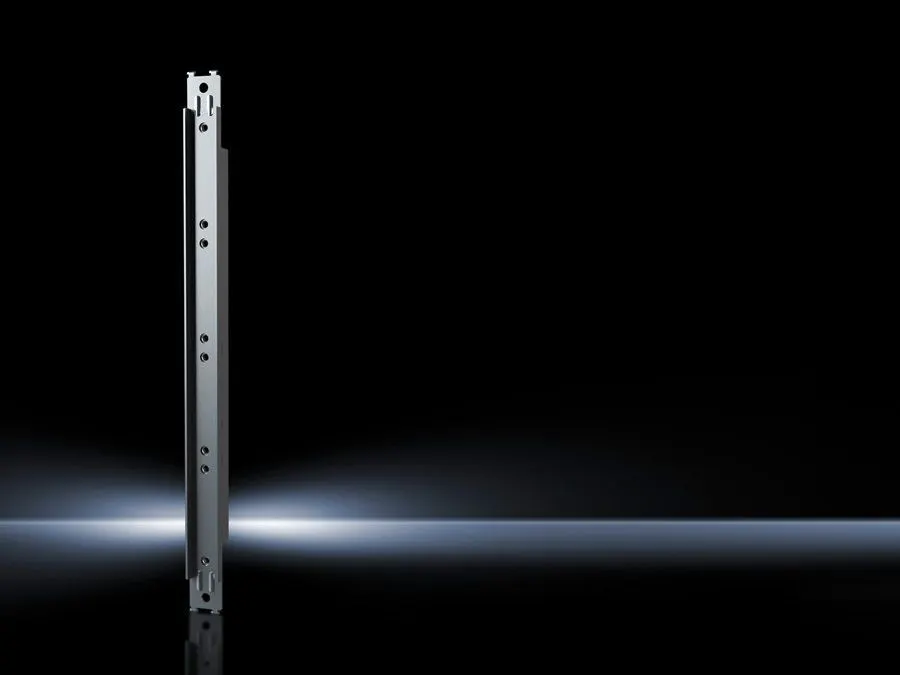

Rittal 9674122 SV System Attachment - Flat-PLS 60
Part Number: 9674122
Manufacturer
Rittal
Part number
9674122
Category
Alt Part Number
SV 9674.122
Quick Summary
SV System attachment for busbar supports provides a robust stainless steel mounting solution for TS rear sections. Engineers often struggle with secure busbar alignment in compact enclosures; this attachment ensures precise 120 mm bar center spacing and reliable support. This part aligns with ETIM EC002525 and ECLASS 27400613 classifications, and is designed for TS 8 rear-section enclosures. Weighting 2.2 kg per pack, two pieces per pack, it simplifies stocking and installation. With Flat-PLS 60 compatibility, it delivers faster assembly, reduced field adjustments, and long-term lifecycle value for panel builders. It also helps ensure consistent electrical clearance and mechanical stability in demanding environments.
Product Information
Extended Description
9674122 Rittal: SV System attachment, for busbar support, SV 9674002/020 (Flat-PLS 60), 120 mm bar centre distance, for TS rear section (top/bottom)
Article number
SV 9674.122
Design
for mounting in the rear section, top/bottom
Applications
For installing busbar supports
Material
Stainless steel
Number of poles
3-pole4-pole | 120 mm
To fit busbar system
Flat-PLS 60
To fit
Enclosure type: TS 8
Packs of
2 pc(s).
Weight/pack
2.2 kg
Customs tariff number
73269098
EAN
4028177606388
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV System attachment, for busbar support, SV 9674002/020 (Flat-PLS 60), 120 mm bar centre distance, for TS rear section (top/bottom)
Feature: Stainless steel construction. Impact: Delivers corrosion resistance and mechanical durability in demanding industrial environments, reducing maintenance costs. Application: Ideal for SV 9674.122 installation in TS rear sections to support busbars. Feature: 120 mm bar center distance. Impact: Enables precise alignment and predictable electrical clearance, improving assembly quality. Application: Supports Flat-PLS 60 busbar systems in compact panels. Feature: Design for rear section mounting top/bottom. Impact: Simplifies installation and enhances enclosure aesthetics while maintaining access for service. Application: Suitable for TS 8 enclosures with rear-mounted busbar supports. Feature: Pack configuration 2 pieces per pack, weight 2.2 kg. Impact: Improves stocking, shipping efficiency, and project planning. Application: Useful for panel builders and installers handling multi-position busbar assemblies. Feature: ETIM and ECLASS alignment. Impact: Ensures consistent procurement data and easy integration with ERP/materials systems. Application: Streamlines sourcing across global manufacturing sites and distributors.
Get a Quick Quote for a Rittal 9674122
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9674122?
Enquire Now
FAQs
Yes. The SV 9674.122 is specifically designed to fit the Flat-PLS 60 busbar system and TS 8 rear-section enclosures. It mounts in the rear section (top/bottom) and supports 120 mm bar center distance, enabling reliable, alignment-critical busbar installations in space-constrained panels.
Key specs include stainless steel construction, 120 mm bar center distance, and compatibility with Flat-PLS 60. Benefits include corrosion resistance, precise busbar alignment, easier installation in TS rear sections, and suitability for 2-pack configurations. These features translate to improved assembly quality and reduced field adjustments.
The attachment supports both 3-pole and 4-pole configurations with a 120 mm bar center distance. This flexibility makes it suitable for various busbar layouts within TS enclosures, helping standardize mounting across different panel designs and project requirements.
The part aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, ensuring consistent data exchange. It is designed for TS 8 rear-section enclosures and uses stainless steel suitable for industrial environments, supporting procurement and compliance workflows.
By using corrosion-resistant stainless steel and a robust design for rear mounting, the SV 9674.122 reduces maintenance intervals and replacement costs. The 2-pack configuration improves stock efficiency, and Flat-PLS 60 compatibility minimizes install time, delivering lower total cost of ownership for panel builders and maintenance teams.
