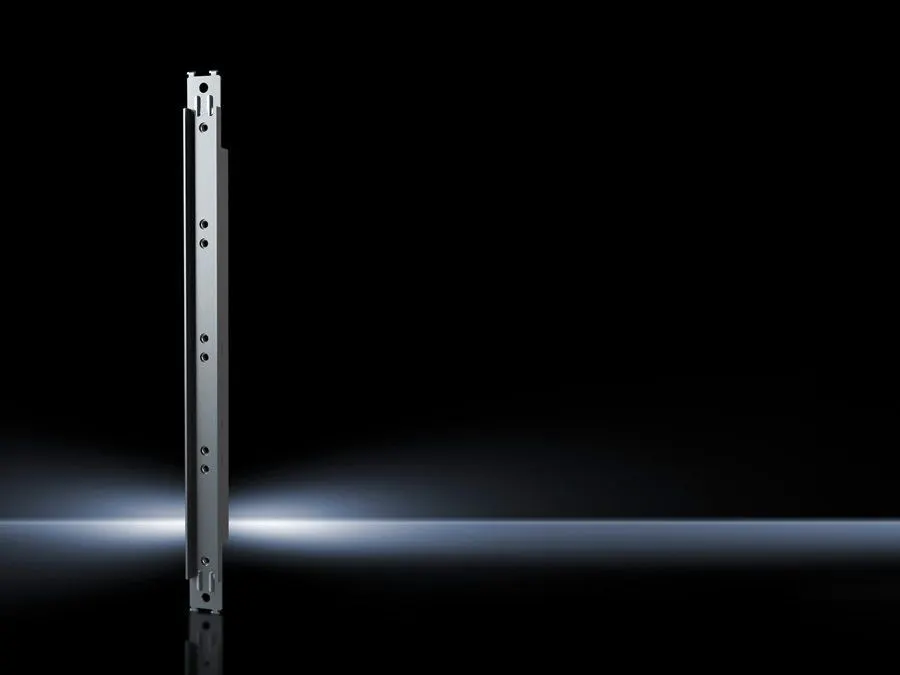

Rittal 9674162 SV System Attachment - 120 mm Bar Centre Distance
Part Number: 9674162
Manufacturer
Rittal
Part number
9674162
Category
Alt Part Number
SV 9674.162
Quick Summary
Rittal 9674162 SV System Attachment is a stainless steel mounting accessory for busbar supports used in TS enclosures. This part addresses the common challenge of securing busbar infrastructure in compact, high-density cabinets without sacrificing reliability or accessibility. It aligns with industry classifications such as ETIM EC002525 and ECLASS 27400613, helping streamline procurement and interoperability. By pairing with Flat-PLS 60 and delivering a 120 mm bar centre distance, this attachment supports robust, long-term electrical distribution structures while simplifying inventory and installation workflows for panel builders and integrators.
Product Information
Extended Description
9674162 Rittal: SV System attachment, for busbar support, SV 9674002/020 (Flat-PLS 60), 120 mm bar centre distance, for TS roof/base section (D: 600 mm)
Article number
SV 9674.162
Design
for mounting in the roof/base section/directly above/below coupling switch
Applications
For installing busbar supports
Material
Stainless steel
Number of poles
3-pole4-pole | 120 mm
To fit busbar system
Flat-PLS 60
To fit
Enclosure type:Â TS 8 | Depth:Â = 600 mm
Packs of
2 pc(s).
Weight/pack
2.096 kg
Customs tariff number
73269098
EAN
4028177606401
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV System attachment, for busbar support, SV 9674002/020 (Flat-PLS 60), 120 mm bar centre distance, for TS roof/base section (D: 600 mm)
Feature: Stainless steel construction provides excellent corrosion resistance and durability in harsh industrial environments. Business Impact: Longer service life and reduced maintenance costs, lowering total cost of ownership. Application: Suitable for TS enclosures exposed to dust, moisture, and chemical exposure. Feature: 120 mm bar centre distance designed for SV 9674002/020 (Flat-PLS 60). Business Impact: Ensures precise alignment of busbars, reducing vibration and wear, and improving electrical performance. Application: Ideal for busbar support systems in TS roof/base sections with D: 600 mm. Feature: Flat-PLS 60 compatibility guarantees standardized mounting interfaces. Business Impact: Simplifies stocking and procurement, enabling faster project execution and lower SKU proliferation. Application: Works with common Rittal busbar systems across multiple cabinet families. Feature: Pack of two pieces per order. Business Impact: Cost-effective inventory and rapid deployment for installations requiring multiple attachments. Application: Efficiently equips both ends of a mounting row without reordering. Feature: Mounting location options (in roof/base section, directly above/below coupling switch). Business Impact: Reduces installation time and allows modular, scalable layouts in TS 8 enclosures. Application: Supports flexible configuration and future upgrades while maintaining alignment with standard mounting planes.
Get a Quick Quote for a Rittal 9674162
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9674162?
Enquire Now
FAQs
The SV System Attachment is designed for TS enclosures, specifically TS 8 with a 600 mm depth, and works with the Flat-PLS 60 busbar system to ensure a precise 120 mm bar centre distance. It mounts in the roof/base section for secure busbar support.
Install the attachment directly in the roof or base section above or below the coupling switch, aligning with the 120 mm centre distance. Use the two-pack to position adjacent busbar supports, ensuring the Flat-PLS 60 interface is properly seated for stable operation.
Stainless steel construction provides excellent corrosion resistance and mechanical durability, reducing maintenance and replacement needs in demanding environments. This enhances the longevity of busbar supports and maintains reliable electrical performance over time.
The product aligns with industry classifications such as ETIM EC002525 and ECLASS 27400613, supporting procurement and interoperability. While explicit CE certification isn’t listed in the data, these standards help ensure compatibility with common industrial specifications.
The part is sold in packs of 2 pieces, with a total weight of 2.096 kg per pack. This packaging supports efficient stocking and reduces the frequency of reorders on projects requiring multiple busbar attachments.
