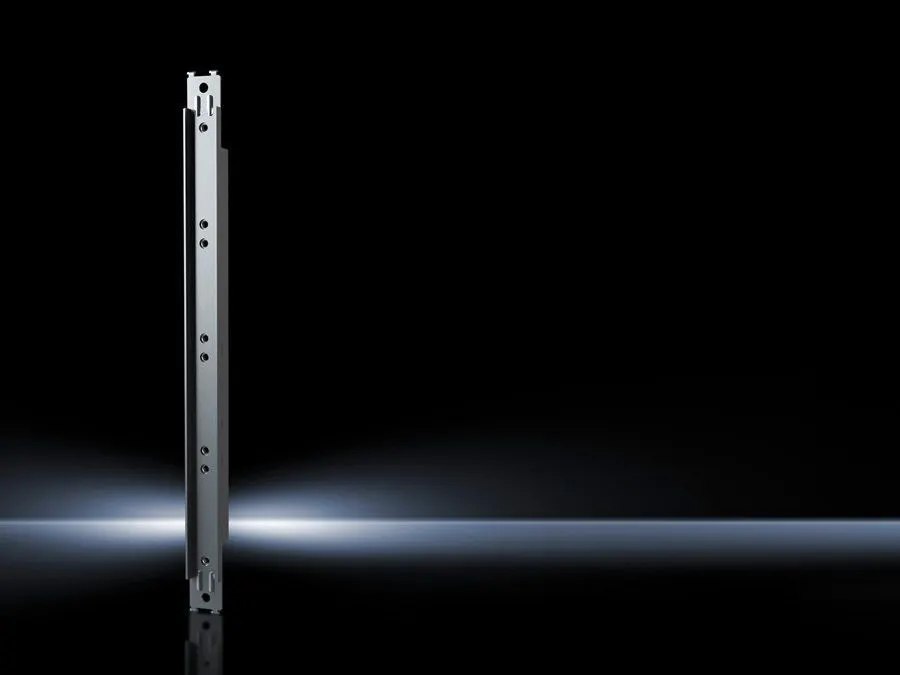

Rittal 9674184 SV System Attachment - 165 mm bar centre distance
Part Number: 9674184
Manufacturer
Rittal
Part number
9674184
Category
Alt Part Number
SV 9674.184
Quick Summary
Rittal 9674184 SV System Attachment is a stainless steel mounting accessory designed for installing busbar supports in TS 8 enclosures. Engineers often struggle with precise alignment and secure mounting in tight roof/base spaces, leading to rework and longer installation cycles. The accessory aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, supporting standardized data handling and procurement. By delivering a rigid, corrosion-resistant fit that works with Flat-PLS 100 busbar systems in TS roof/base sections, it boosts installation speed, reduces maintenance costs, and improves overall enclosure reliability. The 165 mm bar centre distance and 2-pack configuration help standardize stocking and simplify project planning for panel builders. This combination supports consistent quality across manufacturing lines.
Product Information
Extended Description
9674184 Rittal: SV System attachment, for busbar support, SV 9676004/021 (Flat-PLS 100), 165 mm bar centre distance, for TS roof/base section (T: 800 mm)
Article number
SV 9674.184
Design
for mounting in the roof/base section/directly above/below coupling switch
Applications
For installing busbar supports
Material
Stainless steel
Number of poles
3-pole4-pole | 165 mm
To fit busbar system
Flat-PLS 100
To fit
Enclosure type: TS 8 | Depth: = 800 mm
Packs of
2 pc(s).
Weight/pack
3.32 kg
Customs tariff number
73269098
EAN
4028177606456
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV System attachment, for busbar support, SV 9676004/021 (Flat-PLS 100), 165 mm bar centre distance, for TS roof/base section (T: 800 mm)
Stainless steel construction delivers durable, corrosion-resistant performance in harsh panel environments. This material choice reduces long-term maintenance and guards against humidity, dust, and chemical exposure that can degrade busbar mounting components over time. In practice, your assembly remains reliable across service intervals and under varying temperatures within TS enclosures. The design for mounting in the roof/base section directly above or below the coupling switch simplifies alignment and ensures a secure fit, reducing field adjustments and commissioning time. The 165 mm bar centre distance enables compatibility with Flat-PLS 100 busbar systems, supporting standardized installations and predictable electrical layouts. Packs of two provide straightforward logistics and stocking, with a weight of 3.32 kg per pack, aiding procurement planning. Compatibility with TS roof/base sections (T: 800 mm) minimizes on-site modifications and accelerates project delivery. Overall, these features contribute to lower lifecycle costs and improved uptime for industrial control panels.
Get a Quick Quote for a Rittal 9674184
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9674184?
Enquire Now
FAQs
Begin by locating the TS roof/base section (TS 8, depth 800 mm). Position the attachment directly above or below the coupling switch as described in the product guidelines, align with the 165 mm bar centre distance, and fix using the enclosure mounting points. Use the two-piece pack to simplify handling and ensure a secure, vibration-resistant connection for reliable busbar support.
Key specs include stainless steel construction, 165 mm bar centre distance, compatibility with Flat-PLS 100, two pieces per pack, and a weight of 3.32 kg per pack. It is designed for TS roof/base sections with a depth of 800 mm, and it fits TS 8 enclosures. The article number is SV 9674.184 and it carries the EAN 4028177606456.
Yes. The SV System Attachment SV 9674.184 is specified to fit Flat-PLS 100 busbar systems, providing a standardized mounting interface in TS 8 enclosures. This compatibility helps streamline procurement and reduces the need for additional adapters or special accessories.
The data set lists ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, supporting standardized data exchange. There is no explicit CE, IP rating, or SIL information provided in the dataset; for regulatory confirmation, consult the official datasheet or contact Rittal directly before use in regulated environments.
Using stainless steel SV 9674184 reduces corrosion-related failures and extends service life in demanding environments. The design simplifies installation, speeds up commissioning, and minimizes on-site modifications, leading to lower labor costs and reduced downtime. Standardized 165 mm spacing and Flat-PLS 100 compatibility also simplify stocking and future upgrades.
