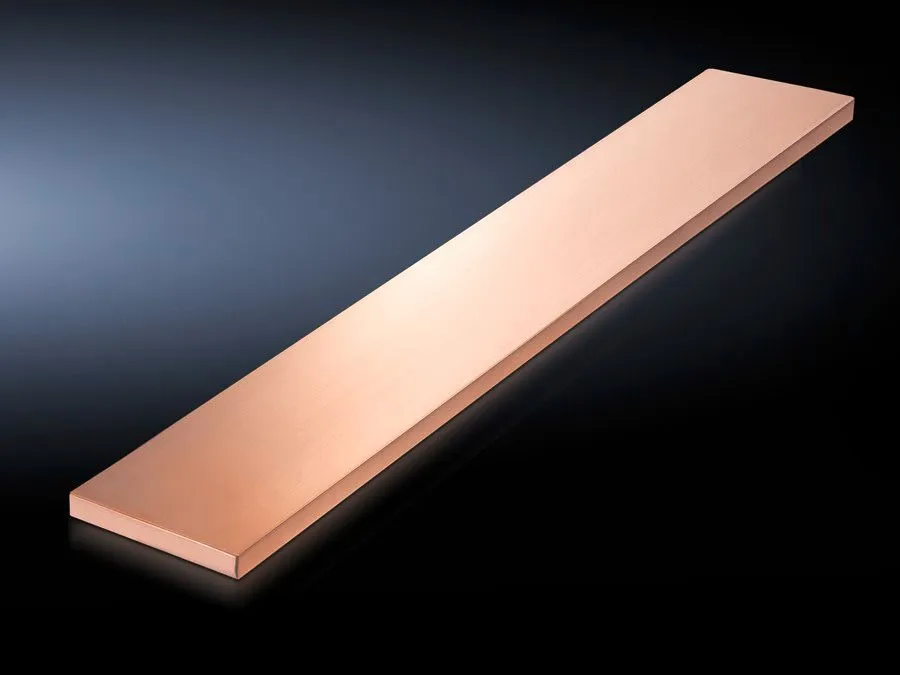

Rittal 9674400 Distribution Busbar - E-Cu 100x10
Part Number: 9674400
Manufacturer
Rittal
Part number
9674400
Category
Alt Part Number
SV 9674.400
Quick Summary
Rittal 9674400 distribution busbar is a copper main busbar for Maxi-PLS and Flat-PLS systems. Engineers often struggle with lengthy wiring, misalignment, and compatibility gaps during panel assembly. Two key classifications underpin its interoperability: ETIM 7.0 EC001900 and ECLASS 8.0 27400613, supporting accurate data exchange and procurement. Designed for installation in fuse-switch disconnector sections, the busbar delivers a robust cross-section of 100x10 mm and a length of 1,632.5 mm, optimized for reliable current pathways. As a high-capacity distribution solution, it reduces installation time and cabling complexity, improving panel performance and overall lifecycle cost in controlled environments.
Product Information
Extended Description
9674400 Rittal: SV Distribution busbar E-Cu, WH: 100x10 mm, L: 1632,5 mm
Article number
SV 9674.400
Product description
Distribution busbar to fit the main busbar systems Maxi-PLS and Flat-PLS for installation in the fuse-switch disconnector sections.
Material
E-Cu
Length
1,632.5 mm
To fit
Height: = 2,000 mm
Cross-section
100 mm x 10 mm
Packs of
1 pc(s).
Weight/pack
14.5 kg
Copper weight (kg per piece)
14.53
Customs tariff number
74071000
EAN
4028177613744
ETIM 7.0
EC001900
ECLASS 8.0
27400613
Product description
SV Distribution busbar E-Cu, WH: 100x10 mm, L: 1632,5 mm
Material and cross-section: E-Cu provides low resistance and high conductivity for compact layouts. Business impact: Higher current capacity with reduced heat enables longer service intervals and lower energy losses in dense control cabinets. Application: Ideal for Maxi-PLS or Flat-PLS main buses where space is at a premium. System compatibility: Specifically designed for Maxi-PLS and Flat-PLS main busbar setups and for installation in fuse-switch disconnector sections. Business impact: Streamlined cabinet design, faster assembly, and easier service access, driving project schedules and commissioning budgets lower. Application: Use in production lines, packaging systems, and machine controls requiring standardized busbars. Physical specifications: Cross-section 100x10 mm; length 1,632.5 mm; copper weight 14.53 kg per piece; pack weight 14.5 kg. Business impact: Predictable fit within enclosure heights up to 2,000 mm, with traceable material mass supporting quality audits and traceability. Application: Suitable for long main busbar spans in medium to large switchgear assemblies. Documentation and classification: ETIM 7.0 EC001900 and ECLASS 8.0 27400613 enable reliable data exchange and catalog accuracy. Business impact: Reduces procurement errors and ERP integration time, lowering total cost of ownership. Application: Use in BOMs, ERP, and purchasing workflows to ensure consistent part data across sites. Logistics and compliance: Customs tariff 74071000 and EAN 4028177613744 support straightforward import and traceability. Business impact: Simplifies logistics and compliance checks, reducing lead times. Application: Ideal for global manufacturing setups and multi-site deployments.
Get a Quick Quote for a Rittal 9674400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9674400?
Enquire Now
FAQs
Yes. The SV 9674.400 is designed specifically for Maxi-PLS and Flat-PLS main busbar configurations and is installed in fuse-switch disconnector sections. It uses E-Cu with a 100x10 mm cross-section and a length of 1,632.5 mm, matching standard enclosure footprints. Its 1-piece-per-pack format simplifies stocking and reduces assembly errors.
Key specs include E-Cu material, cross-section of 100x10 mm, length of 1,632.5 mm, and copper weight of 14.53 kg per piece (14.5 kg per pack). These attributes support low resistance, stable current pathways, and predictable thermal behavior, translating to higher reliability and reduced energy losses in continuous operation within industrial control panels.
Industries with demanding switchgear and control panel environments benefit the most, including manufacturing, process automation, packaging, and automotive assembly. The busbar supports robust power distribution in large control cabinets and supports streamlined panel design, faster commissioning, and easier maintenance in high-volume production facilities.
Interoperability is supported by ETIM 7.0 EC001900 and ECLASS 8.0 27400613 classifications, ensuring accurate data exchange. Logistics and procurement are aided by the Customs tariff number 74071000 and the EAN 4028177613744. While CE or SIL ratings are not listed, the data-driven classifications and traceable materials improve supplier audits and ERP integration.
The copper-rich 14.53 kg per piece construction provides durable, long-life conductors with reduced risk of thermal degradation. Installation in Maxi-PLS/Flat-PLS reduces wiring length and cabinet complexity, lowering labor costs and commissioning time. These factors contribute to lower total cost of ownership and faster ROI in mature or expanding automation environments.
