Rittal 9674408 Distribution busbar - Maxi-PLS compatibility
Part Number: 9674408
Manufacturer
Rittal
Part number
9674408
Category
Alt Part Number
SV 9674.408
Quick Summary
Rittal 9674408 Distribution busbar is designed for Maxi-PLS and Flat-PLS main busbar systems in switchgear. Installing copper busbars in tight enclosures can be costly and error-prone, so a compatible, standardized part saves time and reduces field rework. This product aligns with ETIM EC001900 and ECLASS 27400613 classifications, helping procurement and engineering teams quickly source the right item while maintaining traceability. For ongoing value, the busbar’s E-Cu composition, robust cross-section, and precise length support reliable power distribution, lower impedance, and consistent performance in control panels and switchgear. From BOM validation to service life, it delivers measurable business benefits through compatibility and efficiency.
Product Information
Extended Description

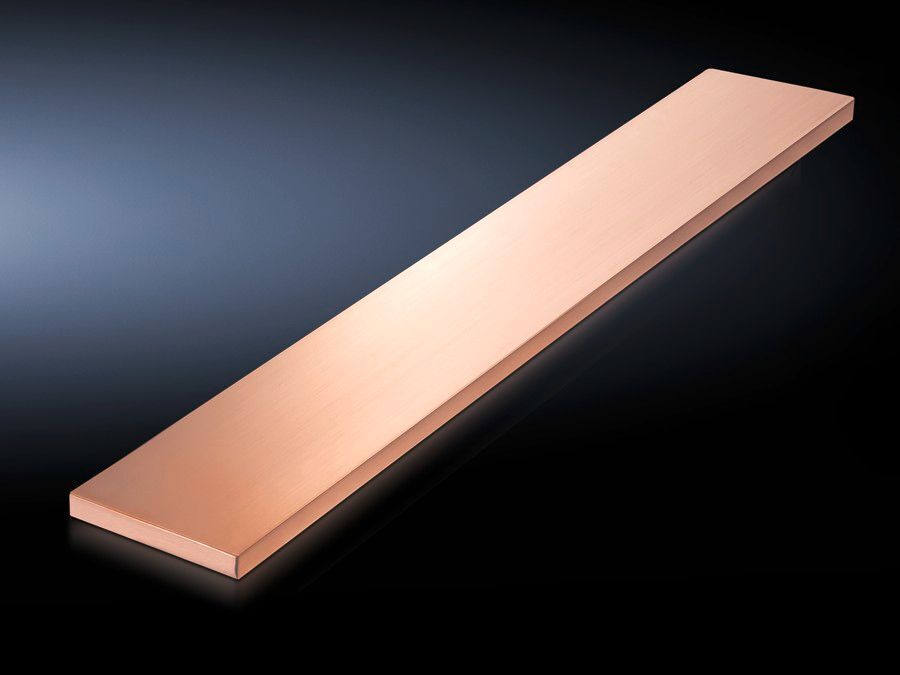

9674408 Rittal: SV Distribution busbar E-Cu, WH: 80x10 mm, L: 1632,5 mm
Article number
SV 9674.408
Product description
Distribution busbar to fit the main busbar systems Maxi-PLS and Flat-PLS for installation in the fuse-switch disconnector sections.
Material
E-Cu
Length
1,632.5 mm
To fit
Height:Â = 2,000 mm
Cross-section
80 mm x 10 mm
Packs of
1 pc(s).
Weight/pack
11.8 kg
Copper weight (kg per piece)
11.62
Customs tariff number
74071000
EAN
4028177613775
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Distribution busbar E-Cu, WH: 80x10 mm, L: 1632,5 mm
Feature → Business Impact → Application. The SV 9674.408 is a distribution busbar made from E-Cu, 80x10 mm, L 1,632.5 mm. The copper-grade material provides low electrical resistance and high current-carrying capability, reducing heat rise and improving efficiency in fuse-switch disconnector sections. This translates to improved machine uptime and lower energy losses in Maxi-PLS systems. Compatibility with Maxi-PLS and Flat-PLS main busbars simplifies system design and installation, shortening commissioning time in industrial panels. The long, precise length minimizes assembly gaps and avoids awkward cut-to-fit solutions in compact enclosures, boosting reliability. With a single-pack configuration (1 pc), procurement is straightforward and BOM accuracy improves.
Get a Quick Quote for a Rittal 9674408
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9674408?
Enquire Now
FAQs
Yes. The SV 9674.408 is specifically designed to fit Rittal Maxi-PLS and Flat-PLS main busbar systems, enabling straightforward installation in fuse-switch disconnector sections without field modification. This compatibility reduces engineering time, minimizes rework, and improves alignment with standard busbar interfaces used in power distribution panels.
Key specifications include an 80x10 mm cross-section, a length of 1,632.5 mm, and E-Cu material. These properties deliver low electrical resistance and high current-carrying capacity, essential for reliable distribution. Copper weight per piece is about 11.62 kg, and each pack contains 1 piece, simplifying stocking and BOM planning.
Ideal for installation in fuse-switch disconnector sections within control cabinets, particularly where Maxi-PLS or Flat-PLS main busbars are employed. The combination of precise length and robust copper cross-section supports consistent busbar performance in high-current distribution, reducing impedance and heat buildup in demanding manufacturing lines.
This busbar is referenced by ETIM 9 EC001900 and ECLASS 8.0 27400613, supporting standardized data for procurement and engineering workflows. The EAN is 4028177613775, and the article number is SV 9674.408, ensuring traceability in BOM and inventory systems across global operations.
The distribution busbar combines high copper mass with precise manufacturing for stable current and reduced heat losses, lowering maintenance needs and downtime. A 1-piece pack simplifies procurement and inventory control, enabling faster replacement in mission-critical switchgear and improved overall equipment reliability in industrial automation environments.
