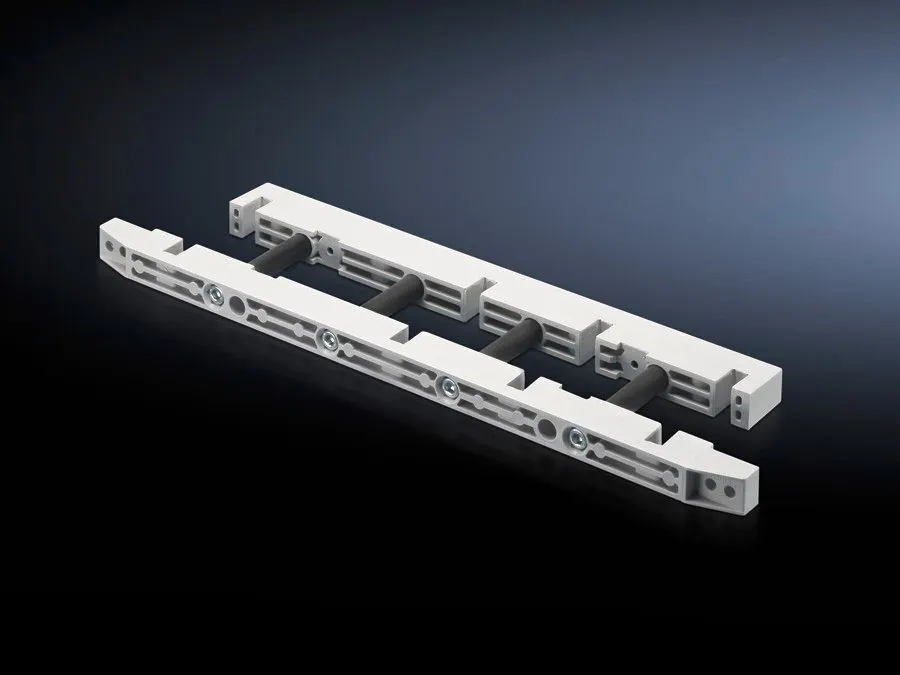

Rittal SV 9674.410 Busbar Support - 3-Pole, 100x10 mm
Part Number: 9674410
Manufacturer
Rittal
Part number
9674410
Category
Alt Part Number
SV 9674.410
Quick Summary
Rittal SV 9674.410 Busbar Support enables secure mounting of 100x10 mm copper busbars in fuse-switch disconnector sections. Engineers often face misalignment, insulation gaps, and lengthy install times when expanding distribution panels. This accessory delivers a precise fit and robust insulation, reducing rework and risk during commissioning. It aligns with ETIM 9 EC001900 and ECLASS 8.0 27400613 classifications, supporting procurement data consistency and cross-system integration. By including a mounting bracket and screws, it speeds installation and ensures a reliable 3-pole arrangement in control gear and power distribution enclosures. In short, it provides a scalable, compatible solution for modern switchgear without compromising safety or performance.
Product Information
Extended Description
9674410 Rittal: SV Busbar support, for busbar WH: 100x10 mm, (fuse-switch disconnector section)
Article number
SV 9674.410
Product description
Busbar support for the distribution busbar system of the fuse-switch disconnector section.
Material
Duroplastic polyester
Supply includes
Mounting bracket and screws
To fit busbars
Flat copper busbars
To fit busbars
Width: 100 | Height: 10 mm
Number of poles
3-pole
Packs of
1 pc(s).
Weight/pack
1.26 kg
Customs tariff number
85469010
EAN
4028177613430
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Busbar support, for busbar WH: 100x10 mm, (fuse-switch disconnector section)
Three-pole SV busbar support delivers a secure, fixed anchor for flat copper busbars 100x10 mm. This precise fit minimizes movement under switching transients, reducing wear at connection points and improving panel reliability. Application: fuse-switch disconnector sections in power distribution cabinets. Material choice matters: constructed from Duroplastic polyester, it offers excellent electrical insulation and mechanical durability in typical control-panel environments, increasing safety margins and reducing insulation degradation over time. The supply includes a mounting bracket and screws, speeding installation and ensuring repeatable, accurate alignment without hunting for missing hardware. Compatibility and footprint are designed to simplify integration with flat copper busbars, reducing unnecessary machining and enabling straightforward mounting in WH busbar systems. Weight per pack is 1.26 kg, and the packaging supports single-pack procurement, facilitating inventory planning and maintenance workflows. Overall, the SV 9674.410 strengthens reliability, supports compliance with classification standards, and minimizes panel modification costs.
Get a Quick Quote for a Rittal 9674410
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9674410?
Enquire Now
FAQs
The SV 9674.410 fits flat copper busbars sized 100x10 mm and is configured for a 3-pole arrangement. It ships with a mounting bracket and screws, enabling fast, secure attachment in fuse-switch disconnector sections of power distribution enclosures. Ideal for upgrading existing systems without substantial cabinet redesign.
Installation is streamlined by including a mounting bracket and screws, reducing sourcing steps. The Duroplastic polyester body provides reliable insulation and mechanical stability, minimizing misalignment during assembly. The result is faster commissioning, fewer touch-point adjustments, and consistent alignment across multiple assemblies in panel racks.
Yes. This three-pole busbar support is specifically designed for 100x10 mm flat copper busbars used in fuse-switch disconnector sections. It provides a precise fit, stable mounting, and does not require extra modification to the busbar footprint, supporting reliable operation in standard distribution panels.
The SV 9674.410 aligns with ETIM 9 EC001900 and ECLASS 8.0 27400613 classifications, aiding data consistency in procurement systems and cross-platform integration. It also carries the 4028177613430 GTIN/EAN for traceability and warranty processes in enterprise catalogs.
Using the SV 9674.410 improves reliability and safety in fuse-switch disconnector sections by delivering a stable, insulated mounting for 100x10 mm busbars. It reduces installation time, simplifies part sourcing with included hardware, and supports compliant procurement data, contributing to lower total cost of ownership in switchgear installations.
