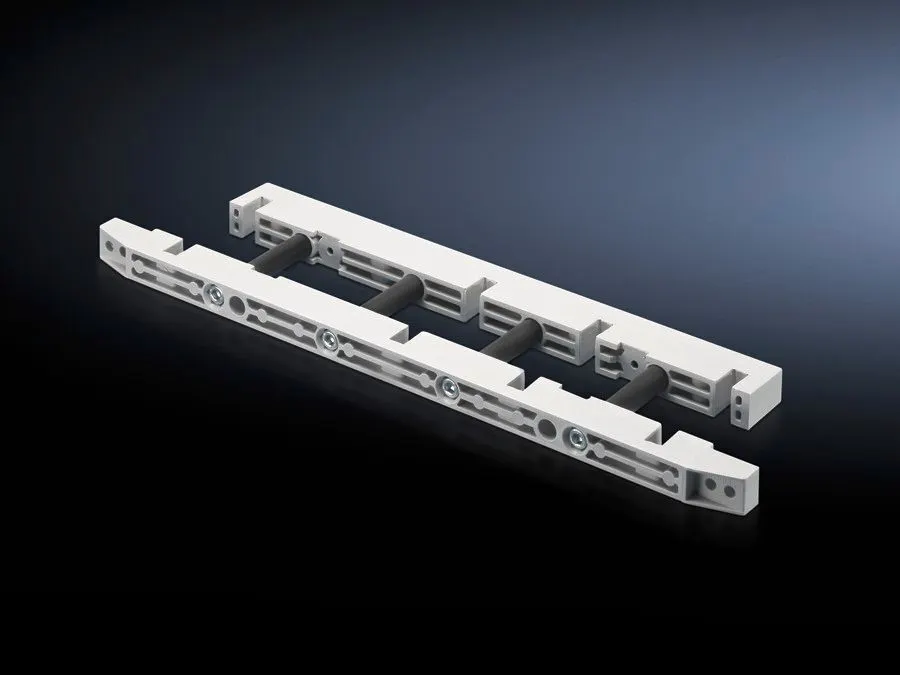

Rittal SV 9674.415 busbar support - 3-pole, 50x10 mm
Part Number: 9674415
Manufacturer
Rittal
Part number
9674415
Category
Alt Part Number
SV 9674.415
Quick Summary
Rittal SV 9674.415 busbar support provides durable mounting for the distribution busbar system in fuse-switch disconnector sections. Engineers often struggle with precise alignment, vibration, and space constraints inside compact enclosures, which can compromise connections and service life. This part aligns with ETIM 9 EC001900 and ECLASS 8.0 27400613 for data consistency, while industry standards such as CE marking and IP ratings remain common compliance considerations depending on the application. By delivering a precise fit for flat copper busbars (50x10 mm) and a complete mounting kit, it reduces assembly time, minimizes field adjustments, and lowers procurement risk in power management and distribution setups. In short, it supports reliable, fast, and compliant installation for three-phase systems.
Product Information
Extended Description
9674415 Rittal: SV Busbar support, for busbar WH: 50x10 mm, (fuse-switch disconnector section)
Article number
SV 9674.415
Product description
Busbar support for the distribution busbar system of the fuse-switch disconnector section.
Material
Duroplastic polyester
Supply includes
Mounting bracket and screws
To fit busbars
Flat copper busbars
To fit busbars
Width: 50 | Height: 10 mm
Number of poles
3-pole
Packs of
1 pc(s).
Weight/pack
1.14 kg
Customs tariff number
85469010
EAN
4028177613447
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Busbar support, for busbar WH: 50x10 mm, (fuse-switch disconnector section)
Material and durability: The busbar support is made from Duroplastic polyester, delivering excellent insulation and mechanical stability. Business impact: Improved safety margins and longer service life in demanding electrical environments, reducing downtime during maintenance. Application: Suitable for fuse-switch disconnector sections where long-term reliability is critical. Compatibility and fit: Designed to fit flat copper busbars with a width of 50 mm and height of 10 mm, ensuring a secure, vibration-resistant connection in standard 3-pole configurations. Installation efficiency: Supplied with a mounting bracket and screws, enabling faster on-site assembly and consistent torque. Cost and procurement: ETIM 9 and ECLASS 8.0 classifications streamline parts catalogs and sourcing for industrial automation projects. Operational readiness: Weighs 1.14 kg per pack, supporting straightforward handling and logistics while maintaining enclosure compatibility.
Get a Quick Quote for a Rittal 9674415
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9674415?
Enquire Now
FAQs
Install with the included mounting bracket and screws, align the 50x10 mm flat copper busbars in the fuse-switch disconnector section, and secure the bracket to the enclosure frame. Ensure the poles are correctly oriented for the three-phase layout and verify tightness to the manufacturer’s torque recommendations to prevent loosening during operation.
Yes. The SV 9674.415 is designed to fit flat copper busbars with dimensions 50 mm by 10 mm and supports a 3-pole configuration for standard three-phase distribution in fuse-switch disconnector sections.
Key specs include a 3-pole design, busbar size 50x10 mm, material Duroplastic polyester, weight per pack 1.14 kg, and it ships with a mounting bracket and screws. EAN 4028177613447, ETIM 9 EC001900, and ECLASS 8.0 27400613 are listed for procurement and data accuracy.
The provided data highlights ETIM 9 EC001900 and ECLASS 8.0 27400613 for data classification; CE marking or IP ratings are not explicitly listed here. For regulatory requirements, verify the enclosure environment and local electrical standards, and consult the official datasheet or your compliance team.
The part standardizes mounting for fuse-switch disconnector sections, reduces assembly time with included brackets and screws, and improves connection reliability through precise fit. Its data-aligned classifications streamline procurement, while the 3-pole design supports efficient three-phase distribution with predictable maintenance intervals.
