Rittal 9674550 Wiring Trim Panel - Ri4Power Compatibility
Part Number: 9674550
Quick Summary
Rittal 9674550 wiring trim panel is designed to organize and shield the Ri4Power main busbar system within switchgear cabinets. Engineers often struggle with crowded cabinets and limited maintenance access, and this panel provides a dedicated inner front cover with an optional wiring channel for tidy, predictable wiring layouts. Certification details such as CE, IP ratings, or SIL are not specified in the provided data; please confirm regulatory compliance with the supplier if required. Beyond compliance, the solution delivers reliable material performance and installation advantages that support faster commissioning and simpler future upgrades, leveraging familiar Ri4Power interfaces and setup workflows.
Product Information
Extended Description
9674550 Rittal: SV Wiring trim panel, for TS, SE (W: 400/600 mm)
Article number
SV 9674.550
Product description

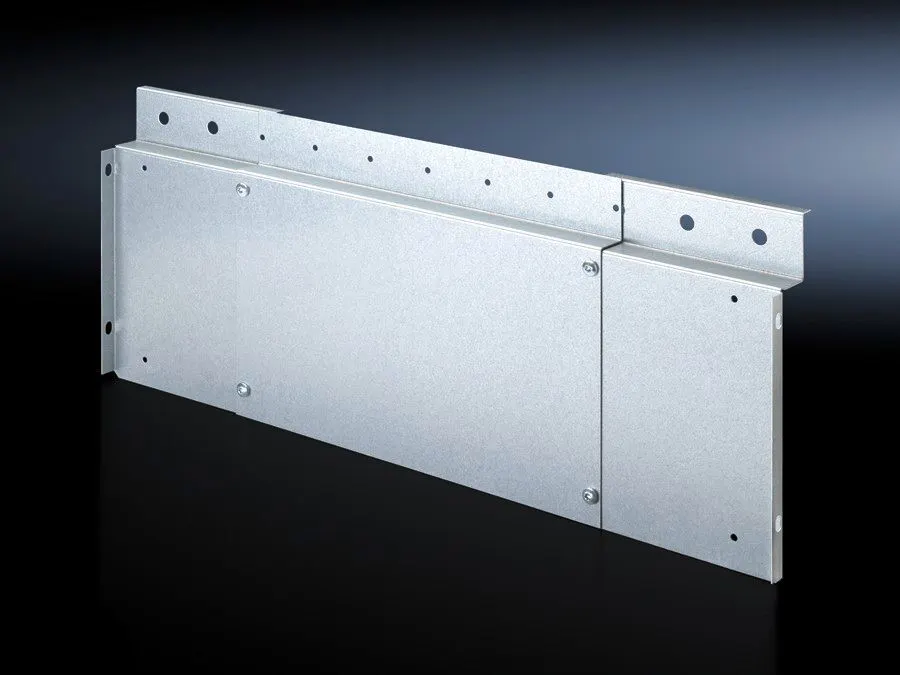

Inner front cover of the main busbar system with the option of mounting a wiring channel W x D 40 x 20 mm. Suitable for use in Ri4Power switchgear with 300 mm high front trim panels. Horizontal cable routing occurs behind the front trim panels.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Note
For vertical cable routing, mounting brackets for compartment dividers and circuit-breaker support rails enable the installation of a wiring channel, thanks to pre-punched cut-outs.
To fit
Width:Â = 400 mm | = 600 mm
Packs of
1 pc(s).
Weight/pack
1.26 kg
Customs tariff number
73269098
EAN
4028177697300
ETIM 9
EC002617
ECLASS 8.0
27142423
Product description
SV Wiring trim panel, for TS, SE (W: 400/600 mm)
Feature → Business Impact → Application: Ri4Power-ready wiring trim panel with a wiring channel option W x D 40 x 20 mm enables compact, orderly cable routing behind the front trim. This reduces cabinet clutter, shortens wiring times, and minimizes risk of cable damage during maintenance; ideal for Ri4Power switchgear in production environments and service bays. Feature → Business Impact → Application: Width options of 400 mm or 600 mm provide scalable compatibility with TS/SE front panels, enabling consistent front-face alignment and straightforward retrofits in existing installations. This supports faster project ramp‑ups and reduces rework when upgrading busbar systems in control rooms and industrial plants. Feature → Business Impact → Application: Sheet steel with zinc-plated finish delivers durable protection against corrosion in harsh environments while preserving electrical performance; suitable for long-term installations in moderate-to-severe industrial settings. This minimizes lifecycle cost and extends service intervals in automation cabinets. Feature → Business Impact → Application: Assembly parts are included, simplifying procurement and on-site assembly; technicians save time sourcing hardware and ensure correct mounting, reducing downtime during commissioning and maintenance. Feature → Business Impact → Application: Pre-punched cut-outs and compatibility with vertical cable routing via mounting brackets support flexible layouts; engineers can adapt to evolving cabling strategies without reworking cabinet interiors. This is beneficial for multi-line machines and flexible production lines where space optimization is critical.
Get a Quick Quote for a Rittal 9674550
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9674550?
Enquire Now
FAQs
The SV 9674.550 wiring trim panel is designed for Ri4Power switchgear and fits 400 mm or 600 mm wide front assemblies. It supports mounting behind 300 mm high front trim panels, with a wiring channel option (W x D 40 x 20 mm). This compatibility ensures a seamless retrofit or new-build integration with Ri4Power, reducing installation risk and front-panel misalignment.
Installation benefits include pre-punched cut-outs for vertical cable routing and mounting brackets for compartment dividers and circuit-breaker rails, enabling the wiring channel to be mounted as needed. Assembly parts are included, simplifying material procurement, while horizontal routing behind front trim panels keeps cables organized and accessible for maintenance without cabinet disassembly.
The panel is made of sheet steel with a zinc-plated surface finish, providing durable corrosion resistance suitable for industrial environments. Each pack weighs 1.26 kg and contains the necessary assembly parts for straightforward installation. The product includes the article number SV 9674.550 and EAN 4028177697300 for ordering and traceability.
The provided data does not specify CE, IP, or SIL certifications. It does list ETIM 9 EC002617 and ECLASS 8.0 27142423 classifications, which aid in cataloging and interoperability. For regulatory or safety certifications, confirm with Rittal or the distributor to ensure alignment with your project requirements.
By providing a dedicated inner front cover with a wiring channel, the panel streamlines cable routing, reduces commissioning and maintenance time, and improves serviceability. Its robust zinc-plated sheet steel construction and compatibility with 400/600 mm widths support scalable installations, lower lifecycle costs, and easier future upgrades in Ri4Power-enabled switchgear environments.
