Rittal 9674.560 Wiring Trim Panel for Ri4Power
Part Number: 9674560
Quick Summary
Rittal 9674.560 Wiring trim panel for Ri4Power enables clean, organized cable routing inside Ri4Power switchgear. Engineers often struggle with space constraints and cluttered cabling behind front trim panels, which can extend commissioning times and complicate fault finding. This component is designed to support common regulatory expectations, including CE-compliant practices and reliable protection in metal enclosures. With mounting brackets for compartment dividers and circuit-breaker rails, plus pre-punched cut-outs, it enables straightforward installation of a wiring channel and simplifies vertical or horizontal routing behind the front panels, improving maintainability and future expansion potential. The result is faster assembly, better cable organisation, and reduced downtime during inspections and service.
Product Information
Extended Description
9674560 Rittal: SV Wiring trim panel, for TS, SE (W: 800/1000/1200 mm)
Article number
SV 9674.560
Product description

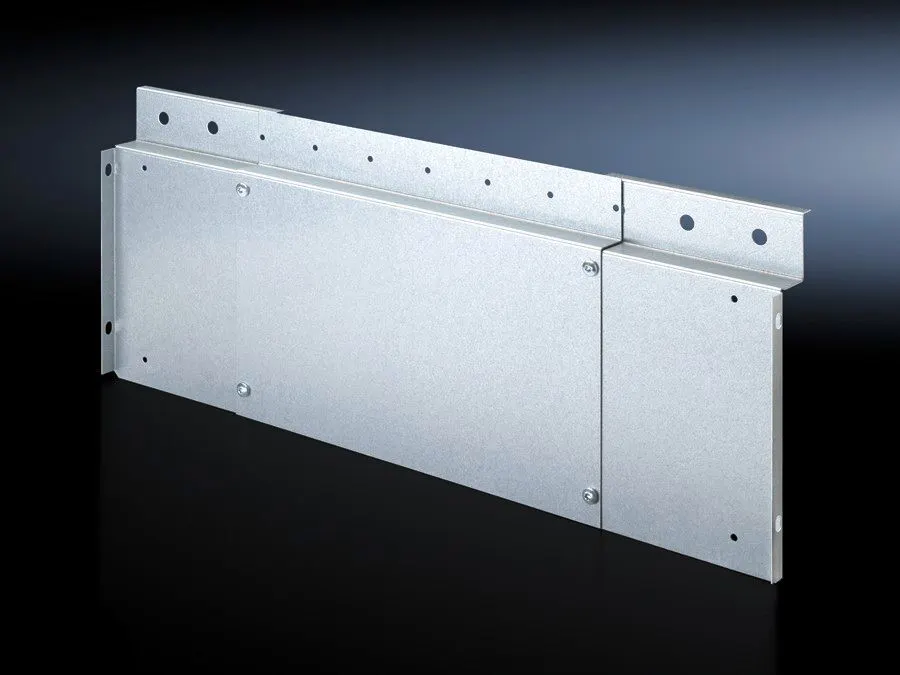

Inner front cover of the main busbar system with the option of mounting a wiring channel W x D 40 x 20 mm. Suitable for use in Ri4Power switchgear with 300 mm high front trim panels. Horizontal cable routing occurs behind the front trim panels.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Note
For vertical cable routing, mounting brackets for compartment dividers and circuit-breaker support rails enable the installation of a wiring channel, thanks to pre-punched cut-outs.
To fit
Width:Â = 800 mm | = 1,000 mm | = 1,200 mm
Packs of
1 pc(s).
Weight/pack
2.46 kg
Customs tariff number
73269098
EAN
4028177697317
ETIM 9
EC002617
ECLASS 8.0
27142423
Product description
SV Wiring trim panel, for TS, SE (W: 800/1000/1200 mm)
Feature → Business Impact → Application: The SV 9674.560 wiring trim panel provides an internal compartmentalised wiring approach that enhances organisation and traceability, reducing fault-finding time and improving safety during maintenance. This translates to measurable efficiency gains on site and a clearer path to regulatory compliance within Ri4Power installations. Application: Use with Ri4Power switchgear across TS, SE formats, where a wiring channel 40 x 20 mm can be mounted inside the panel for horizontal cable routing behind the 300 mm high front trim panels. Feature → Business Impact → Application: Sheet steel construction with a zinc-plated surface delivers robust ruggedness while resisting corrosion in factory environments, lowering lifecycle cost and maintenance frequency. Application: Suitable for environments requiring durable enclosure materials that sustain long-term performance under vibration and dust exposure. Feature → Business Impact → Application: Width compatibility of 800, 1000, and 1200 mm ensures flexible fitment across Ri4Power frames, enabling standardisation across multiple projects. Application: Use in modular panel rows to reduce stock variety and simplify spares management. Feature → Business Impact → Application: Supplied with assembly parts and pre-punched cut-outs supports quick installation of wiring channels and divider rails, cutting project lead times and easing retrofits. Application: Ideal for retrofit scenarios where existing front panels require enhanced internal routing without major rework.
Get a Quick Quote for a Rittal 9674560
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9674560?
Enquire Now
FAQs
Yes. The SV 9674.560 is designed for Ri4Power switchgear and fits TS and SE configurations with widths of 800, 1000, and 1200 mm. It ships with assembly parts to simplify installation and supports mounting a wiring channel behind the front trim panels.
The panel offers pre-punched cut-outs and mounting brackets for compartment dividers and circuit-breaker rails, enabling both horizontal routing behind front trim panels and potential vertical routing when combined with rails. A 40 x 20 mm wiring channel is supported, facilitating neat internal cabling and easier service access.
Ideal for Ri4Power switchgear that uses 300 mm high front trim panels. The panel supports 800/1000/1200 mm widths and helps organise cables in compact enclosures, making it suitable for mid-to-large Ri4Power installations requiring tidy wire arrangements and streamlined maintenance.
The data provides standard classifications such as ETIM 9 EC002617 and ECLASS 8.0 27142423, along with general industry practices for sheet-steel, zinc-plated enclosures. While CE compliance is commonly expected for enclosure components, verify project-specific certification needs with your supplier or distributor for exact regulatory confirmation.
Supply includes assembly parts and pre-punched cut-outs, enabling quick wiring-channel installation and reduced commissioning time. The resulting cleaner cable management lowers maintenance effort, enhances fault diagnostics, and can contribute to lower lifecycle costs on Ri4Power installations.
