Rittal SV 9674.761 Support frame - 1 x 24 pitch units
Part Number: 9674761
Manufacturer
Rittal
Part number
9674761
Category
Alt Part Number
SV 9674.761
Quick Summary
The Rittal SV 9674.761 support frame provides secure DIN rail mounting for modular distribution devices in control panels. Engineers often struggle with internal compartmentalization and space constraints when expanding or reconfiguring cabinet layouts. Note: CE, SIL and IP certifications are not specified in the data, but the frame's zinc-plated steel construction supports durable, compliant installations. This solution integrates with 600 mm wide cabinets and 150 mm high compartments to streamline panel assembly and future expansions. In practice, it enables faster installation, reliable MCB mounting, and scalable layouts for evolving control architectures. With its 1 x 24 pitch capacity and footprint, it accommodates a wide range of DIN rail configurations while preserving cabinet aesthetics.
Product Information
Extended Description
9674761 Rittal: SV Support frame, for DIN rail-mounted devices, 1 x 24 pitch units, WH: 500x145 mm
Article number
SV 9674.761
Product description

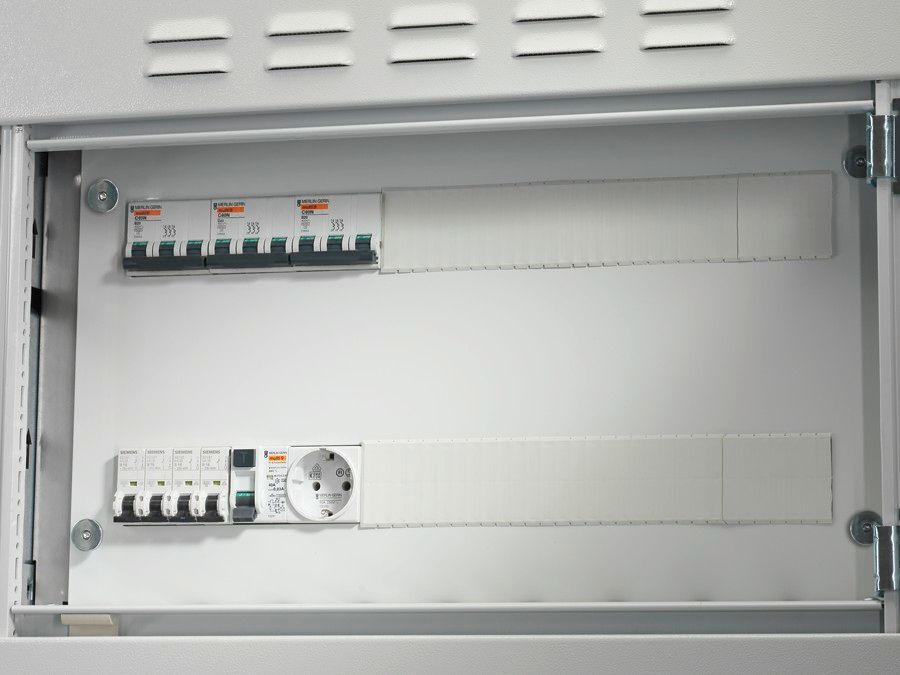

Support frame set for accepting DIN rail-mounted devices (e.g. MCBs). The support rails are fastened with two mounting brackets to the side panel modules for internal compartmentalisation. The cover is fastened to the support frame with knurled screws. In combination with compartment dividers, partial mounting plates and side panel modules, internal compartmentalisation in accordance with Form 2, 3 or 4 is possible.
Material
Support frame: Sheet steel, zinc-plated, passivated, 1.5 mm | Cover: Sheet steel, spray finished, 1.5 mm
Supply includes
Support rails | 2 mounting brackets | 1 cover with cut-out | Assembly parts
For compartment height
150 mm
To fit
Width: = 600 mm
No. of pitch units 17.5 mm
1 x 24
Packs of
1 pc(s).
Weight/pack
2 kg
Customs tariff number
73269098
EAN
4028177543799
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Support frame, for DIN rail-mounted devices, 1 x 24 pitch units, WH: 500x145 mm
Feature: 1 x 24 pitch unit capacity enables dense organization of DIN rail-mounted devices. Benefit: Improves space utilization within control panels and reduces the footprint of MCBs and similar modules. Application: Ideal for compact switchgear and modular distribution cabinets where panel real estate is at a premium. Feature: Zinc-plated sheet steel construction at 1.5 mm for the frame and a 1.5 mm sprayed finish on the cover. Benefit: Enhances durability, corrosion resistance, and long service life in harsh industrial environments. Application: Suitable for outdoor-rated or semi-exposed electrical enclosures in manufacturing environments. Feature: Integrated support rails, two side mounting brackets, and a cover with cut-out supplied in the package. Benefit: Speeds up installation, ensures consistent internal compartmentalisation, and minimizes the need for additional hardware. Application: Expands quickly in projects requiring Form 2, 3, or 4 compartmentalisation with minimal downtime. Feature: Frame width 600 mm and compartment height 150 mm designed for standard enclosures. Benefit: Delivers predictable fit and reliability across multiple cabinet families, improving installation planning and inventory management. Application: Works well with standard 600 mm wide racks in control panels and distribution enclosures. Feature: Pack weight of 2 kg per pack and complete kit contents. Benefit: Easier handling, safer shipping, and simplified logistics for procurement teams. Application: Streamlines stocking and reduces project lead times by providing a ready-to-install solution.
Get a Quick Quote for a Rittal 9674761
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9674761?
Enquire Now
FAQs
Begin by positioning the frame inside the enclosure, then attach the two side mounting brackets to the panel modules as per the included assembly parts. Fasten the cover with the cut-out to complete the internal compartmentalisation. Install DIN rail-mounted devices such as MCBs on the supplied rails, ensuring alignment with the 1 x 24 pitch capacity. The kit includes all necessary hardware, reducing the need for extra fasteners or tools and speeding up installation.
Key specs include 1 x 24 pitch units, overall width of 600 mm, compartment height of 150 mm, and a weight of 2 kg per pack. Construction uses zinc-plated sheet steel for the frame (1.5 mm) and a sprayed 1.5 mm cover. The supply includes support rails, 2 mounting brackets, 1 cover with cut-out, and assembly parts. GTIN is 4028177543799, with customs tariff number 73269098.
Yes. The frame is specifically designed to accept DIN rail-mounted devices such as MCBs and other modular components. Its 24 pitch unit capacity supports compact, organized installation within control panels, and it offers internal compartmentalisation compatible with Form 2, 3, or 4 configurations for improved separation and accessibility.
The provided data does not specify CE, SIL, or IP certifications for this frame. It does indicate robust construction with zinc-plated sheet steel and compatibility with standard DIN rail devices. If certifications are a strict requirement for your project, verify with the supplier or request formal certification documentation to ensure regulatory compliance.
The frame delivers time savings through a complete, ready-to-install kit, reduces downtime with quick access and cover removal, and enables modular expansion via 1 x 24 pitch units. Its durable steel construction lowers replacement costs, while standardized dimensions—600 mm width and 150 mm compartment height—facilitate predictable cabinet planning and inventory management in evolving automation architectures.
