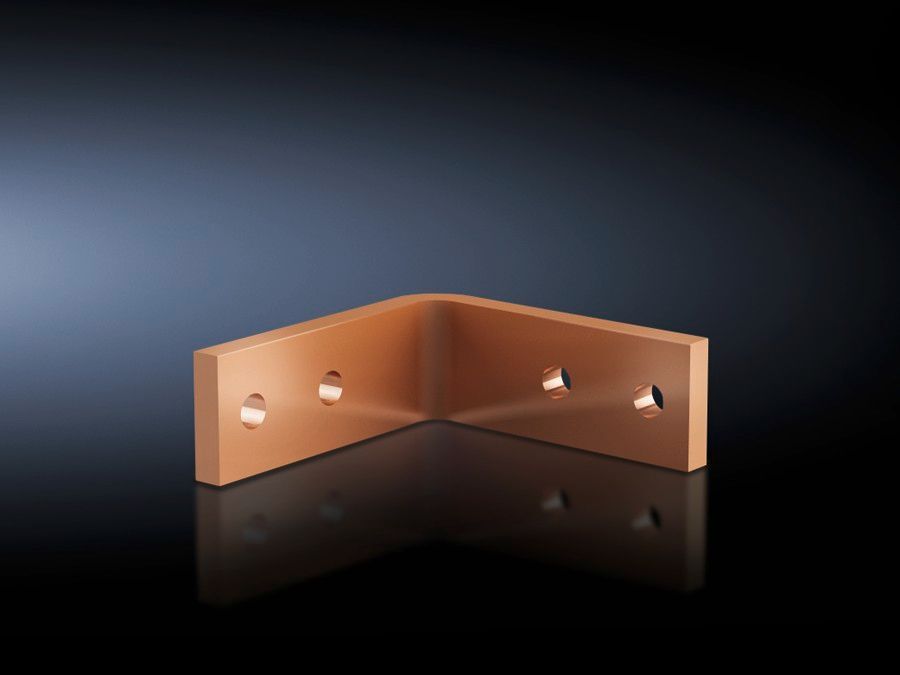

Rittal 9675842 Busbar Connector - Flat-PLS 60
Part Number: 9675842
Manufacturer
Rittal
Part number
9675842
Category
Alt Part Number
SV 9675.842
Quick Summary
Rittal 9675842 is a busbar connector that links horizontal Flat-PLS to vertical busbars in enclosures. This accessory reduces field alignment errors and speeds up panel assembly by providing a precise, pre-aligned junction. Key compliance references include ETIM 9 EC001900 and ECLASS 8.0 27400613, with a traceable GTIN 4028177626331. Its Flat-PLS 60 compatibility in TS 8 enclosures translates to faster installation, cleaner cabling, and improved maintenance data for project teams. This makes it an effective choice for mid to large control panels seeking scalable power distribution. By standardizing on a single connector, procurement simplifies ordering and reduces parts variance across sites.
Product Information
Article number
SV 9675.842
Applications
For connecting horizontal Flat-PLS busbar systems in the roof/base section to vertical Flat-PLS busbar systems.
For number of bars per conductor
2
To fit busbar system
Flat-PLS 60
To fit
Enclosure type:Â TS 8 | Depth:Â = 600 mm | = 800 mm
To fit busbars
Width:Â 40 | Height:Â 10Â mm
Packs of
1 pc(s).
Weight/pack
1.3 kg
Copper weight (kg per piece)
1.24
Customs tariff number
74198090
EAN
4028177626331
ETIM 9
EC001900
ECLASS 8.0
27400613
Designed for the Flat-PLS 60 system, the SV 9675.842 provides a dedicated connection between roof/base horizontal sections and vertical busbars, reducing misalignment risk and speeding up assembly through a pre-aligned, sturdy junction. The connector’s two bars per conductor configuration delivers a reliable current path with predictable copper cross-section, enabling consistent electrical performance in enclosure environments. Its compatibility with TS 8 enclosures of 600–800 mm depth and the specified 40 mm wide by 10 mm high busbar dimensions ensures a precise, repeatable fit, minimizing deviations during retrofit or new builds. Weight per pack is 1.3 kg, copper weight 1.24 kg, making handling on site straightforward while maintaining robust mechanical integrity. The single-pack solution streamlines stocking, reduces shipping costs, and supports efficient project logistics. Procurement data such as EAN and tariff classifications further simplify sourcing and compliance workflows in multi-site operations.
Get a Quick Quote for a Rittal 9675842
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9675842?
Enquire Now
FAQs
SV 9675.842 supports Flat-PLS 60 busbars and TS 8 enclosures with depths of 600–800 mm. It connects horizontal roof/base sections to vertical busbars with a width of 40 mm and height of 10 mm, using two bars per conductor for a secure electrical path.
The connector ships in packs of 1, weighing 1.3 kg per pack, with a copper weight of 1.24 kg per piece. It carries article number SV 9675.842 and accommodates two bars per conductor, ensuring a consistent current path in Flat-PLS 60 installations.
Use SV 9675.842 to link horizontal Flat-PLS sections in the roof/base to vertical Flat-PLS busbars inside TS 8 enclosures, enabling modular, scalable power distribution in cabinets and switchgear assemblies.
Key classifications include ETIM 9 EC001900 and ECLASS 8.0 27400613 for interoperability and procurement. The product is traceable via GTIN 4028177626331 and uses Customs tariff 74198090 for customs processing and compliance documentation.
The SV 9675.842 reduces installation time and misalignment errors, improves reliability of the power path, and simplifies procurement with standardized data (EAN, GTIN, tariff). This supports faster project completion, easier multi-site sourcing, and lower total cost of ownership for panel buildouts.
