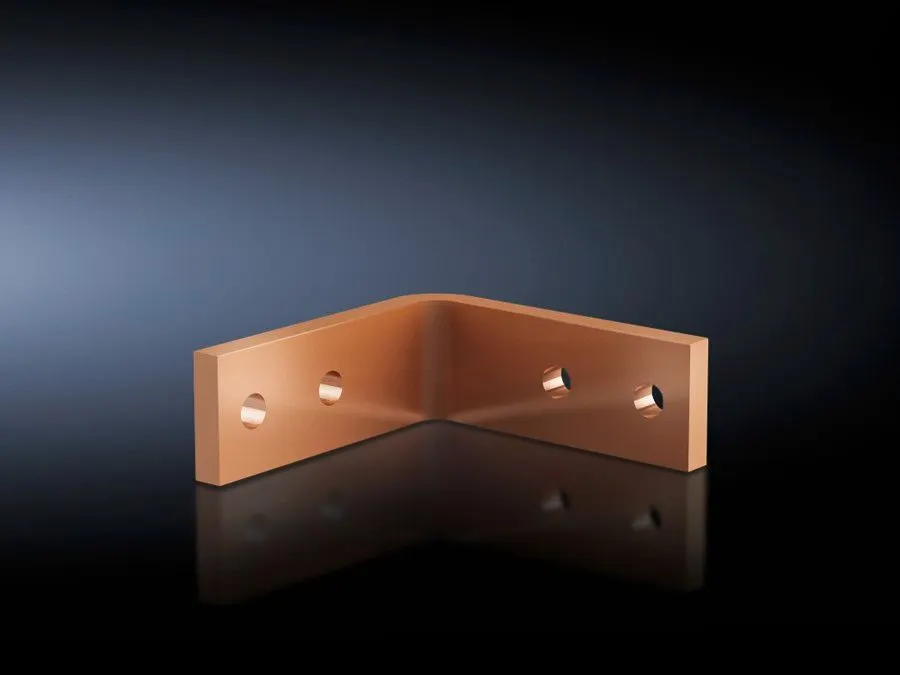

Rittal 9675883 Busbar Connector - Flat-PLS 60
Part Number: 9675883
Manufacturer
Rittal
Part number
9675883
Category
Alt Part Number
SV 9675.883
Quick Summary
Rittal 9675883 Busbar Connector connects horizontal Flat-PLS busbars to vertical runs in enclosure tops. Engineers often struggle with misalignment, limited space, and unreliable copper connections in tight roof/base areas. This solution aligns with ETIM 9 EC001900 and ECLASS 8.0 27400613 standards, supporting interoperability across panel builds. While specific SIL, CE, or IP ratings aren’t listed in the provided data, the design emphasizes predictable copper weight and robust packing for easy installation. By delivering a ready-to-implement interface, it reduces installation time, improves current reliability, and lowers total cost of ownership for industrial power distribution in TS 8 enclosures.
Product Information
Article number
SV 9675.883
Applications
For connecting horizontal Flat-PLS busbar systems in the roof/base section to vertical Flat-PLS busbar systems.
For number of bars per conductor
4 | 3
To fit busbar system
Flat-PLS 60
To fit
Enclosure type: TS 8 | Depth: = 600 mm | = 800 mm
To fit busbars
Width: 60, 50 | Height: 10 mm
Packs of
1 pc(s).
Weight/pack
5.3 kg
Copper weight (kg per piece)
4.37
Customs tariff number
74198090
EAN
4028177626386
ETIM 9
EC001900
ECLASS 8.0
27400613
Feature: Flat-PLS 60 compatibility with 60 mm busbars. Business Impact: simplifies mounting, reduces misalignment risk, and speeds up initial setup in compact TS 8 enclosures. Application: ideal for linking roof/base horizontal sections to vertical busbars in industrial panels. Feature: Copper-weight optimized design (4.37 kg per piece). Business Impact: supports reliable current distribution while keeping enclosure weight manageable for installation teams. Application: improves thermal management and reduces voltage drop at connection points. Feature: Pack and handling efficiency (1 pc per pack, 5.3 kg per pack). Business Impact: streamlines procurement and logistics, enabling single-person installation and safer warehousing. Application: plug-and-play readiness in assembly lines and control cabinets. Feature: Enclosure and size compatibility (TS 8, depth 600–800 mm). Business Impact: broadens applicability across common industrial enclosures with consistent mounting interfaces. Application: used in roof/base to vertical busbar transitions in mid- to large-scale panels. Feature: Clear specification mapping (4 | 3 conductors, busbar widths 60/50 mm, height 10 mm). Business Impact: ensures precise current rating and fit, reducing rework. Application: supports tailored conductor configurations for varied power distribution needs.
Get a Quick Quote for a Rittal 9675883
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9675883?
Enquire Now
FAQs
Install the connector by aligning it with the horizontal Flat-PLS busbar section in the roof or base, then connect to the vertical Flat-PLS run. Ensure the enclosure is TS 8 with 600–800 mm depth and that the busbar widths of 60 or 50 mm are matched. Secure with standard fasteners and verify copper weight distribution (4.37 kg per piece) and pack weight (5.3 kg).
Yes. The connector is designed to fit TS 8 enclosures with depths of 600 mm or 800 mm. It supports Flat-PLS 60 busbars and accommodates widths of 60 and 50 mm with a 10 mm busbar height, aligning horizontal roof/base sections to vertical runs for reliable power distribution.
The connector carries a copper weight of 4.37 kg per piece and is packaged as 1 piece per pack, with a total pack weight of 5.3 kg. This packaging aids handling, shipping accuracy, and on-site installation planning for modular power assemblies.
It is intended to bridge horizontal Flat-PLS busbar systems in the roof/base area to vertical Flat-PLS runs, specifically within TS 8 enclosures. This makes it ideal for compact enclosures where space is tight and precise conductor configuration (4 | 3 per conductor) matters for current distribution and reliability.
The product references ETIM 9 EC001900 and ECLASS 8.0 27400613 for interoperability, with EAN 4028177626386 and Customs tariff 74198090. While explicit SIL, CE, or IP ratings are not listed, the data sheet supports compatibility via standardized classifications and published technical information.
