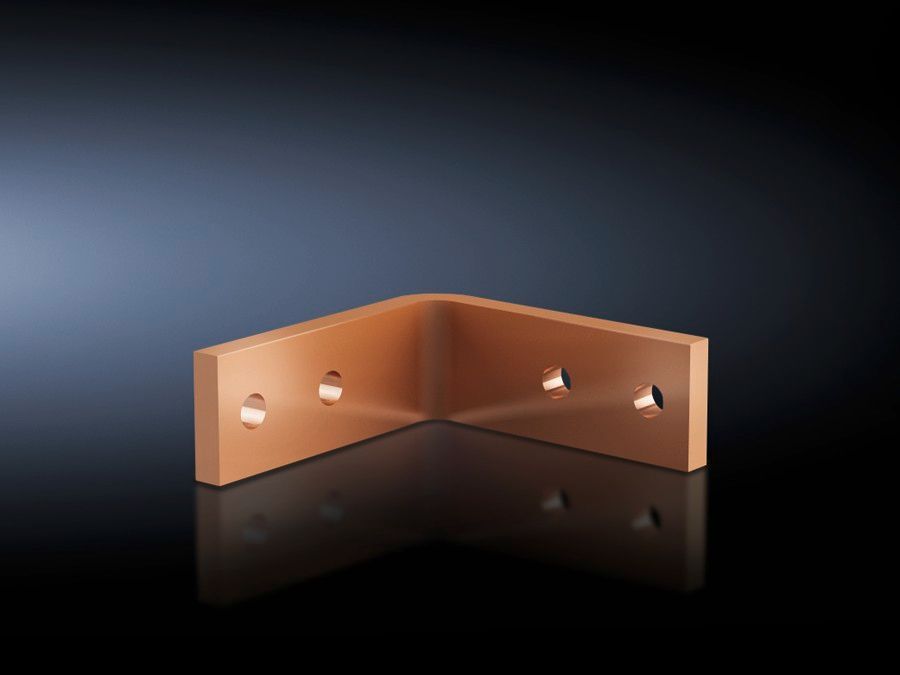

Rittal SV 9675.892 Busbar Connector - ETIM EC001900
Part Number: 9675892
Manufacturer
Rittal
Part number
9675892
Category
Alt Part Number
SV 9675.892
Quick Summary
Rittal SV 9675.892 busbar connector is used to join horizontal Flat-PLS busbars in roof/base sections to vertical runs. Engineers often face space constraints and mismatched interfaces when upgrading enclosures, leading to longer installation times and higher risk of contact resistance. This solution aligns with ETIM EC001900 and ECLASS 27400613 classifications, improving cataloging, compliance, and procurement accuracy. By supporting Flat-PLS 100 and suitable TS 8 enclosures, it delivers scalable, reliable power distribution while minimizing installation risk and varying interface gaps across enclosure configurations.
Product Information
Article number
SV 9675.892
Applications
For connecting horizontal Flat-PLS busbar systems in the roof/base section to vertical Flat-PLS busbar systems.
For number of bars per conductor
4 | 3
To fit busbar system
Flat-PLS 100
To fit
Enclosure type:Â TS 8 | Depth:Â = 600 mm | = 800 mm
To fit busbars
Width:Â 80 | Height:Â 10Â mm
Packs of
1 pc(s).
Weight/pack
4.2 kg
Copper weight (kg per piece)
3.46
Customs tariff number
74198090
EAN
4028177626416
ETIM 9
EC001900
ECLASS 8.0
27400613
Feature: Directly joins horizontal Flat-PLS busbars to vertical runs; Business Impact: reduces assembly time and soldering/wiring errors, improving reliability in critical power paths; Application: ideal for modular enclosure installations in TS 8 systems. Feature: Flat-PLS 100 compatibility and 80×10 mm busbar fit; Business Impact: simplifies design validation and reduces part mismatch during upgrades; Application: retrofit projects and new builds in industrial cabinets. Feature: Precise dimensional fit for enclosure depth 600–800 mm and TS 8 footprints; Business Impact: ensures clean, secure mounting with predictable clearance; Application: high-density power distribution in compact enclosures. Feature: Copper weight 3.46 kg per piece; Business Impact: supports robust current-carrying capacity and mechanical rigidity; Application: reliable distribution for demanding loads. Feature: Packaged as 1 piece per pack, weight per pack 4.2 kg; Business Impact: streamlined logistics, accurate BOM planning, and simplified stocking; Application: procurement for large-scale rollout. Feature: ETIM EC001900 and ECLASS 27400613 alignment; Business Impact: improves cross-system cataloging, supplier data quality, and compliance checks; Application: technical data management and ERP integration.
