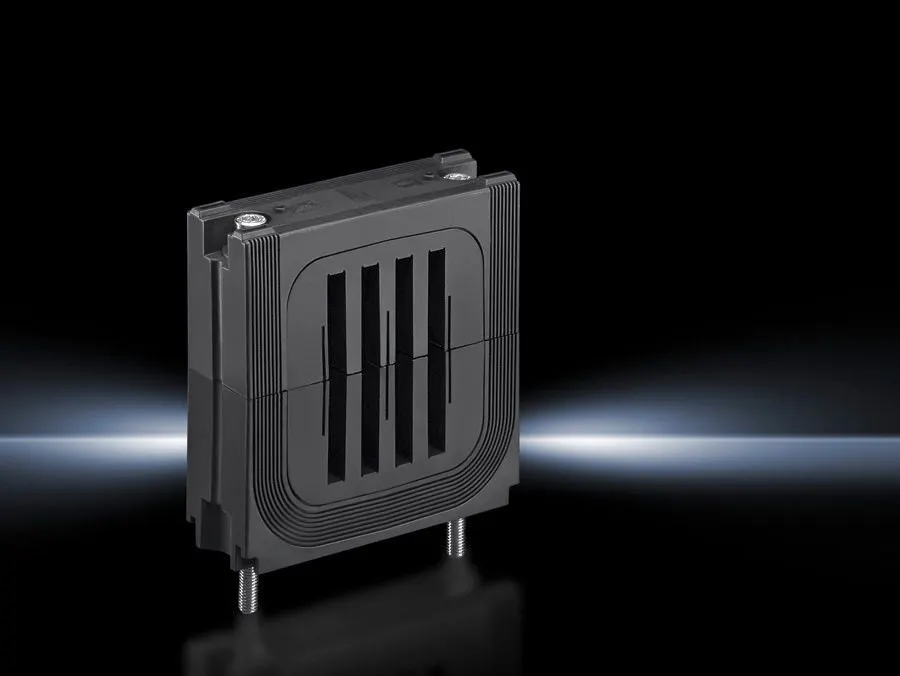

Rittal 9676002 SV Busbar Support - UL 94-V0 Fire Rated
Part Number: 9676002
Manufacturer
Rittal
Part number
9676002
Category
Alt Part Number
SV 9676.002
Quick Summary
Rittal 9676002 SV Busbar Support enables reliable mounting of flat copper busbars in switchgear and control cabinets. Its precise fit reduces installation time and minimizes the risk of loose connections or misalignment in densely packed panels. The part uses polyamide with UL 94-V0 fire protection, and it carries ETIM EC001900 and ECLASS 27400613 data tags for seamless procurement and data integration. Compatible with Flat-PLS 60 busbar systems and 60 mm cross-sections, SV 9676.002 simplifies cabinet layout while maintaining electrical clearance and safety. By standardizing the number of bars and providing clear fill-piece guidance, it lowers service costs and improves overall reliability in power distribution assemblies.
Product Information
Extended Description
9676002 Rittal: SV Busbar support, Flat-PLS 60, for busbar WH: 40-60x10 mm
Article number
SV 9676.002
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 9005
Number bars
4
Number of bars per conductor footnote
When using only 1, 2 or 3 bars, the vacant bar slots should be closed using the filler pieces
To fit busbar system
Flat-PLS 60
To fit busbars
Flat copper busbars
Cross-section
60 mm
Packs of
1 pc(s).
Weight/pack
0.66 kg
Customs tariff number
85469010
EAN
4028177578234
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Busbar support, Flat-PLS 60, for busbar WH: 40-60x10 mm
Feature UL 94-V0 fire-rated polyamide body → Business Impact Enhanced fire safety and robust mechanical strength across service life → Application Safe installation inside switchgear and control cabinets reduces risk of ignition and failure. Feature Four busbar slots with a 60 mm cross-section → Business Impact Enables organized, parallel conduction paths and reduces wiring complexity → Application Used with flat copper busbars WH 40-60x10 mm in Flat-PLS 60 systems to streamline layouts. Feature Direct compatibility with Flat-PLS 60 and 60 mm busbars → Business Impact Minimizes fit-up time and installation errors → Application Simplifies integration into Rittal enclosures for faster commissioning. Feature Slot-fillers for unused bar slots → Business Impact Maintains enclosure integrity and consistent protection → Application Keeps sealed density and airflow characteristics in cabinets. Feature Pack size 1 pc and weight 0.66 kg per pack, color RAL 9005 → Business Impact Easier handling, inventory control, and consistent aesthetics → Application Supports reliable stocking and easy integration into procurement workflows.
Get a Quick Quote for a Rittal 9676002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9676002?
Enquire Now
FAQs
SV 9676.002 is designed to fit Flat-PLS 60 busbar systems and accepts flat copper busbars up to 60 mm cross-section (WH 40-60x10 mm). It provides four bar slots, with filler pieces available if fewer bars are used, ensuring a clean, safe distribution in the enclosure.
Begin by aligning the SV 9676.002 with the Flat-PLS 60 busbar footprint inside the cabinet. Mount using standard fasteners through the designated slots, insert the four 60 mm bars, and close any unused slots with filler pieces. Verify clearance and secure all connections before powering up the panel.
Yes. The component uses a polyamide body with UL 94-V0 fire protection. It is accompanied by ETIM EC001900 and ECLASS 27400613 data classification to aid procurement and technical alignment within enterprise data systems.
Ideal for power distribution in switchgear and control cabinets, SV 9676.002 supports reliable, organized busbar arrangements using flat copper bars. It is particularly advantageous in cabinets requiring precise alignment, quick assembly, and compliance with safety standards in industrial automation settings.
Using SV 9676.002 reduces assembly time, minimizes misalignment risk, and lowers rework costs by standardizing bar placement. The 1-pack, 0.66 kg design simplifies handling and stocking, contributing to faster commissioning and improved reliability in ongoing maintenance and power distribution workloads.
