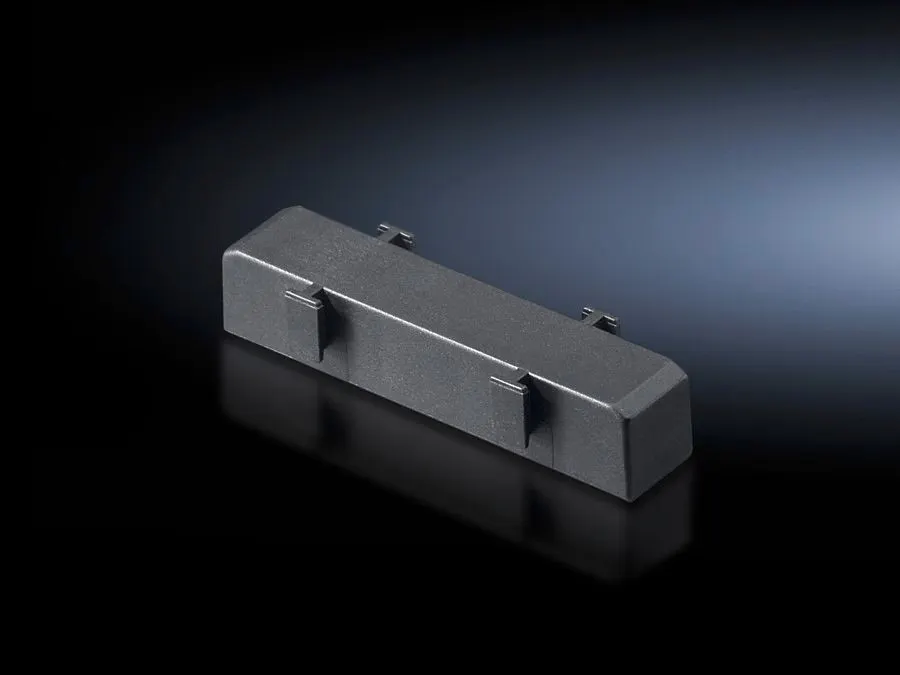

Rittal 9676007 SV Spacer - Busbar Support 40/50/80x10 mm
Part Number: 9676007
Manufacturer
Rittal
Part number
9676007
Category
Alt Part Number
SV 9676.007
Quick Summary
Rittal SV Spacer is a spacer for busbar support used to compensate width differences in busbar systems. This helps installers avoid misalignment and rework during panel assembly. CE conformity, ETIM EC001900, and ECLASS 27400613 support reliable procurement and integration. Used with Flat-PLS 60 or Flat-PLS 100 busbar systems improves installation speed and consistency, reducing total cost of ownership for control panels. The spacer is designed for busbar WH: 40/50/80x10 mm and packs of 16, enabling straightforward stocking and fast replacement. It integrates seamlessly into SV 9676002/004/020/21 assemblies, helping maintain correct spacing even when busbar widths vary. This reduces rework, speeds commissioning, and supports compliant, reliable power distribution.
Product Information
Extended Description
9676007 Rittal: SV Spacer, for busbar support, SV 9676002/004/020/21, for busbar WH: 40/50/80x10 mm
Article number
SV 9676.007
Position of the bar system in the functional space
2 | 1 | 2
Note
At a bar width of < 60 mm for Flat-PLS 60 or < 100 mm for Flat-PLS 100, spacers must be used.
To fit busbar system
Flat-PLS 60
To fit busbars
Flat copper busbars
To fit busbars
Width: 40, 50, 80 | Height: 10, 10, 10 mm
Packs of
16 pc(s).
Weight/pack
0.08 kg
Customs tariff number
39269097
EAN
4028177599437
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Spacer, for busbar support, SV 9676002/004/020/21, for busbar WH: 40/50/80x10 mm
SV Spacer delivers precise width compensation for busbar supports, ensuring narrow widths sit squarely within the chamber. This translates to improved mechanical alignment, reduced misfit risk, and fewer reworks in panel assembly. Application: install inside the chambers of the SV busbar supports SV 9676002/004/020/21 to suit busbars with WH 40/50/80 × 10 mm. It is specifically designed to fit Flat-PLS 60 or Flat-PLS 100 busbar systems, allowing correct fit when using 40/50/80 × 10 mm busbars. Application: Works with Flat-PLS 60 when bar width is under 60 mm, and with Flat-PLS 100 when under 100 mm. Packed in 16-piece sets, each pack weighs 0.08 kg, simplifying stocking and reducing cross-compatibility issues. Application: ideal for field upgrades and OEM panel builds, enabling rapid replacements during maintenance windows. CE conformity plus ETIM EC001900 and ECLASS 27400613 align with procurement systems, improving data-driven purchasing and compliance checks. Application: used across Rittal power management and distribution components for consistent documentation. Physical dimensions and compatibility highlight width variants of 40, 50, and 80 mm with a fixed 10 mm height, matching busbar WH: 40/50/80 × 10 mm. Application: compatible with SV 9676002/004/020/21 supports for precise stack-up in compact enclosures and secure connections.
Get a Quick Quote for a Rittal 9676007
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9676007?
Enquire Now
FAQs
Install the SV Spacer inside the chambers of the busbar support (SV 9676002/004/020/21) to compensate width differences when using smaller busbars. It supports busbars WH 40/50/80 × 10 mm and Flat-PLS 60 systems. The 16-piece pack and 0.08 kg per pack weight simplify stocking and quick replacement during panel upgrades.
The spacer is designed for busbars with widths 40, 50, and 80 mm and a height of 10 mm. It is intended to fit the Flat-PLS 60 and support configurations within the SV 9676 family, ensuring correct spacing in the functional space position 2 | 1 | 2.
Yes. The note specifies that spacers must be used when a bar width is under 60 mm for Flat-PLS 60 or under 100 mm for Flat-PLS 100. SV 9676.007 delivers the required width compensation for those scenarios, promoting precise alignment and faster installation.
The part conforms to CE marking. It is cataloged under ETIM 9 EC001900 and ECLASS 27400613, with the corresponding EAN 4028177599437. These classifications support accurate procurement data and interoperability with digital catalogs and ERP systems.
Using SV Spacer reduces misalignment and the need for bespoke spacers, speeding commissioning and decreasing field rework. With 16 pieces per pack and straightforward integration into SV busbar supports, maintenance windows are shorter, and overall project costs decline due to improved install efficiency and consistent electrical connections.
