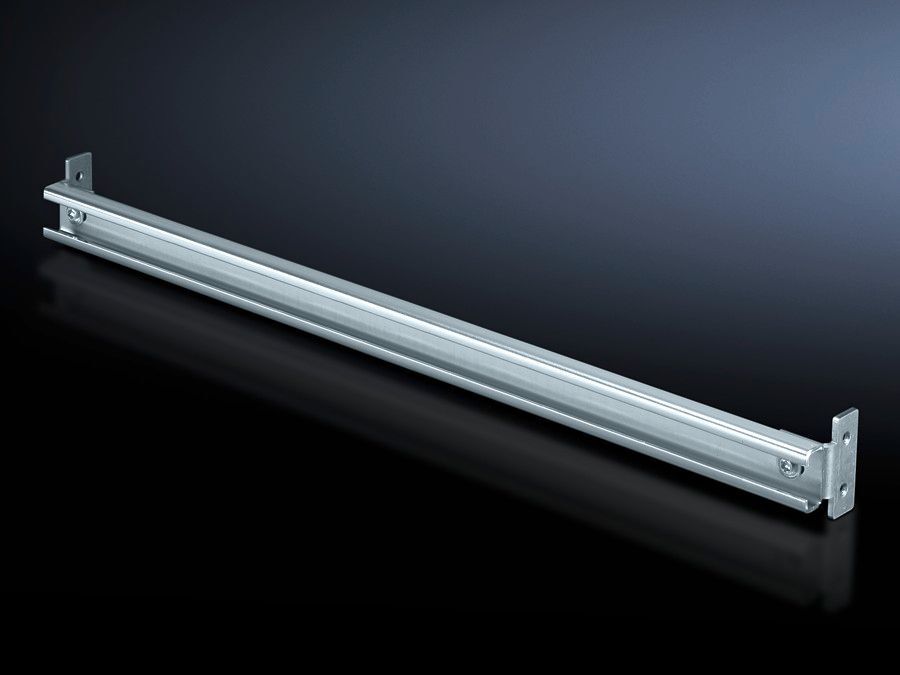

Rittal SV 9676.198 SV Support Rail - TS 800 mm
Part Number: 9676198
Manufacturer
Rittal
Part number
9676198
Category
Alt Part Number
SV 9676.198
Quick Summary
SV 9676.198 is a durable SV support rail for TS enclosures, enabling organized cable management. Engineers often struggle with stacking insulators and routing cables neatly on outer mounting levels, but this rail provides a clean, upgrade-friendly path. CE certified for safe field installs, and classified with ETIM EC001285 and ECLASS 27141143 to ensure accurate cataloging and interoperability. Designed for 800 mm wide TS frames, it supports standard assembly parts and ships in a ready-to-install 2-pack, reducing procurement steps. Together with its zinc-plated sheet steel construction, it delivers long-term reliability and a lower total cost of ownership through easier maintenance and faster installs.
Product Information
Extended Description
9676198 Rittal: SV Support rail, for stacking insulator, for TS (W: 800 mm)
Article number
SV 9676.198
Product description
For attaching to the outer mounting level of the TS enclosure and for use as a cable management bar.
Material
Sheet steel, zinc-plated
Supply includes
Assembly parts
To fit
Width: = 800 mm
Packs of
2 pc(s).
Weight/pack
1.58 kg
Customs tariff number
73269098
EAN
4028177574519
ETIM 9
EC001285
ECLASS 8.0
27141143
Product description
SV Support rail, for stacking insulator, for TS (W: 800 mm)
Feature: Material is sheet steel, zinc-plated. Business Impact: Provides corrosion resistance and durability in harsh environments, reducing maintenance frequency. Application: Suitable for continuous operation in industrial TS enclosures and outdoor installations. Feature: Width fits 800 mm TS frames. Business Impact: Ensures precise fit and secure mounting, minimizing retrofit work and downtime. Application: Ideal for standard TS enclosure configurations that require a fixed 800 mm rail. Feature: Supply includes assembly parts. Business Impact: Speeds up installation and lowers procurement hurdles by delivering ready-to-use components. Application: Field installations where quick setup is critical to avoid production delays. Feature: Packs of 2 with weight per pack 1.58 kg. Business Impact: Easy handling and efficient logistics, enabling two-up packing for optimized shipping. Application: Suitable for warehouse stocking and project-based deployments. Feature: Designed for outer mounting level and use as a cable management bar. Business Impact: Improves cable routing, reduces clutter, and supports stacking insulators for modular TS systems. Application: Comprehensive cable management on TS enclosures, enhancing serviceability and future upgrades.
Get a Quick Quote for a Rittal 9676198
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9676198?
Enquire Now
FAQs
SV 9676.198 is designed for TS enclosures with an 800 mm width and attaches to the outer mounting level. Its zinc-plated sheet steel construction ensures robust mounting and durable cable management capabilities, making it a seamless fit for standard TS systems and stacking insulators.
The rail ships in a 2-pack with assembly parts included. Install on the outer mounting level of the TS enclosure, align to the 800 mm width, and secure using the provided hardware. This streamlined kit minimizes ordering steps and accelerates on-site assembly.
Yes. The product is CE certified for safe installations and is cataloged with ETIM EC001285 and ECLASS 27141143, ensuring interoperability and accurate product classification. Material is sheet steel, zinc-plated for corrosion resistance.
The rail serves as a dedicated cable management bar and supports stacking insulators on TS enclosures, delivering cleaner cabling, easier maintenance access, and expandable configurations for future upgrades, all while maintaining secure outer-m mounting integrity.
The SV 9676.198 is sold as packs of 2 with a weight per pack of 1.58 kg. It carries the GTIN 4028177574519 and the customs tariff 73269098, with assembly parts included to simplify ordering and reduce lead times for project deployments.
