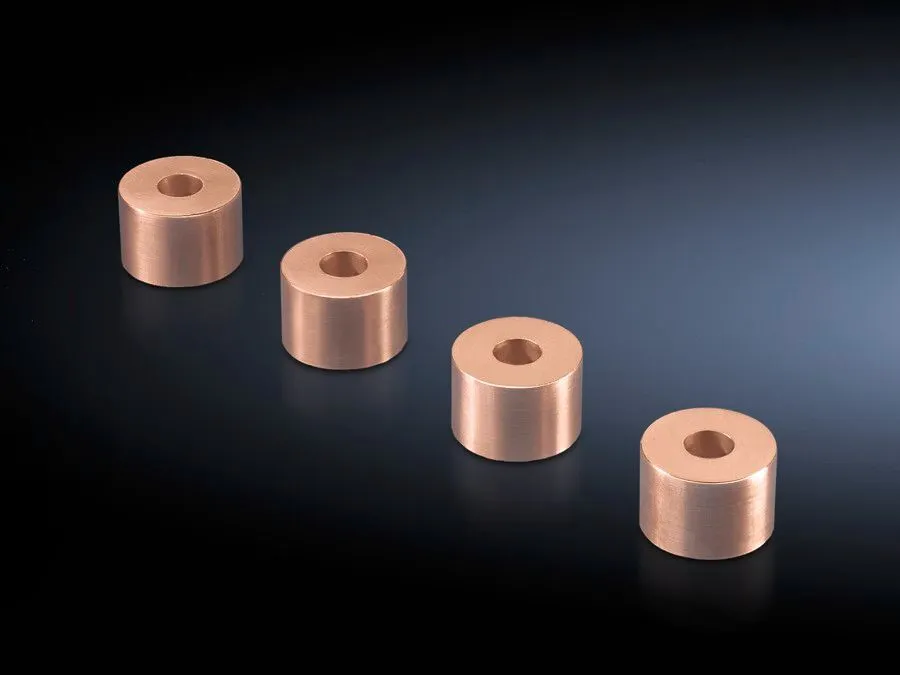

Rittal SV 9676.503 Spacer Roll - Ø30 mm, H 20 mm
Part Number: 9676503
Manufacturer
Rittal
Part number
9676503
Category
Alt Part Number
SV 9676.503
Quick Summary
The Rittal SV 9676.503 Spacer Roll is a universal spacer designed for Maxi-PLS assemblies and copper bar layouts. Engineers often struggle with precise, drift-prone spacing in compact panels, which leads to unstable connections and increased maintenance. This part aligns with ETIM EC001900 and ECLASS 27400613 classifications to improve procurement interoperability; CE, SIL and IP ratings are not listed in the data and should be confirmed in official documentation. With its copper material and straightforward Ø30 mm diameter and 20 mm height, it supports reliable, fast installations and scalable panel designs, while reducing downtime and improving traceability for supply chains in power management and distribution.
Product Information
Extended Description
9676503 Rittal: SV Spacer roll, H: 20 mm, Ø 30 mm
Article number
SV 9676.503
Product description
For use as a universal spacer.
Material
E-Cu
Diameter
30 mm
Ø hole
13 mm
Height
20 mm
Packs of
4 pc(s).
Weight/pack
0.412 kg
Copper weight (kg per piece)
0.11
Customs tariff number
74198090
EAN
4028177597013
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Spacer roll, H: 20 mm, Ø 30 mm
Feature: E-Cu material provides high electrical conductivity and good corrosion resistance. Benefit: Reduces contact resistance, enhances heat dissipation, and improves overall current performance in dense panel layouts. Application: Maxi-PLS busbar assemblies and copper bar installations in industrial cabinets. Feature: Ø 30 mm diameter, Ø 13 mm bore, and 20 mm height establish a standard spacer footprint. Benefit: Ensures consistent spacing across modules, enabling predictable electrical clearance and mechanical stability. Application: Modular power distribution panels where universal spacers are needed. Feature: Pack of 4 with a total weight of 0.412 kg per pack. Benefit: Simplifies procurement, lowers freight cost per unit, and supports just-in-time stocking for panel builders. Application: OEM projects and maintenance inventory for Rittal-environment installations. Feature: Compatibility with Maxi-PLS and flat copper bars. Benefit: Smooth retrofit and fast installation without special tooling, improving project lead times. Application: New builds and retrofits in control panels and switchgear enclosures. Feature: Copper weight per piece is 0.11 kg. Benefit: Predictable mass handling and stable mechanical support in busbar assemblies. Application: Panel layouts requiring reliable weight budgeting and vibration resistance. Feature: EAN 4028177597013 and ETIM/ECLASS classifications support traceability and data accuracy. Benefit: Streamlines procurement and ERP integration, reducing errors and cycle times. Application: Enterprise purchasing, cataloging, and compliance records in industrial environments.
Get a Quick Quote for a Rittal 9676503
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9676503?
Enquire Now
FAQs
The SV 9676.503 spacer roll provides a universal spacer for Maxi-PLS assemblies and flat copper bars in power distribution enclosures. Its Ø30 mm diameter and 20 mm height establish a standard footprint, while the 13 mm bore allows secure insertion. It simplifies layout alignment and helps maintain consistent clearance in dense panel designs.
Key specs are 30 mm external diameter, 13 mm bore, 20 mm height, and E-Cu material. The spacer is supplied in packs of four, with a total pack weight of 0.412 kg and copper weight per piece of 0.11 kg, delivering a reliable balance of conductivity and mechanical stability.
Yes. The SV 9676.503 spacer roll is designed for Maxi-PLS and flat copper bar configurations, providing straightforward drop-in installation in standard 13 mm bore holes. This compatibility supports quick installations, easier retrofits, and consistent spacing across modular power distribution setups.
The product data references ETIM EC001900 and ECLASS 27400613 classifications, which support procurement interoperability. CE, SIL, and IP ratings are not listed in the provided data; please verify with official documentation or supplier certifications to confirm regulatory compliance for your specific application.
With a pack of four, the SV 9676.503 reduces stocking frequency and simplifies ordering. Its traceability is supported by the EAN 4028177597013, and its copper-based material ensures reliable electrical performance. The standard dimensions and compatibility with Maxi-PLS panels also minimize downtime during installations and replacements.
