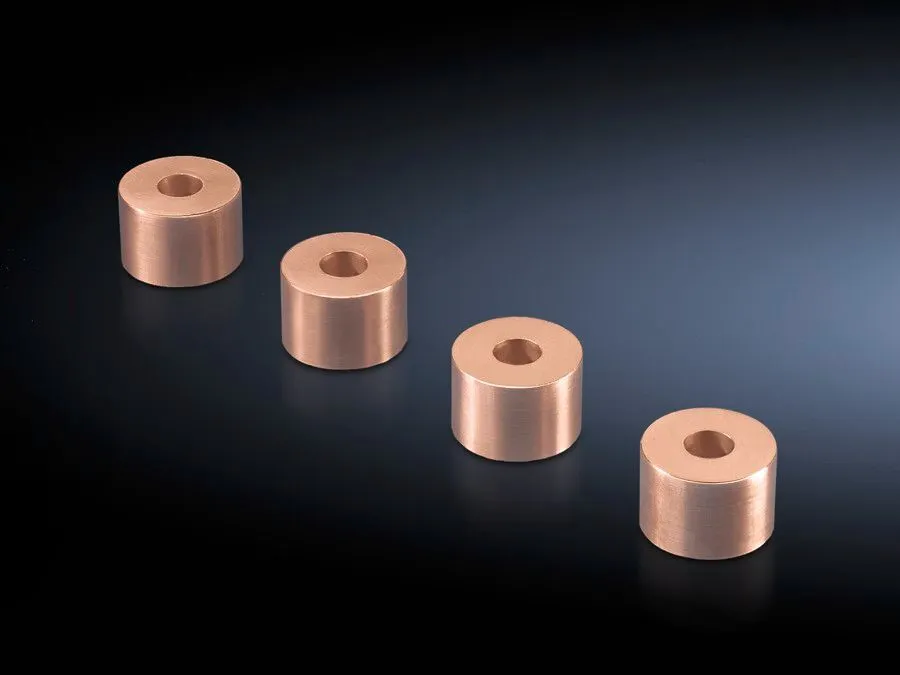

Rittal SV 9676.505 Spacer roll - Ø hole 13 mm
Part Number: 9676505
Manufacturer
Rittal
Part number
9676505
Category
Alt Part Number
SV 9676.505
Quick Summary
Rittal SV 9676.505 spacer roll provides universal spacing for Maxi-PLS and flat copper bars. Engineers often contend with misalignment and inconsistent gaps in compact electrical enclosures, which can drive up assembly time and risk contact issues. While the data here lists E-Cu material and precise dimensions, verify regional certifications such as CE, IP, or SIL per your project requirements. By standardizing spacing with this spacer, you can accelerate panel assembly, improve reliability, and reduce downtime, delivering measurable business value for panel builders and system integrators.
Product Information
Extended Description
9676505 Rittal: SV Spacer roll, H: 20 mm, Ø 50 mm
Article number
SV 9676.505
Product description
For use as a universal spacer.
Material
E-Cu
Diameter
50 mm
Ø hole
13 mm
Height
20 mm
Packs of
4 pc(s).
Weight/pack
1.316 kg
Copper weight (kg per piece)
0.33
Customs tariff number
74198090
EAN
4028177597037
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Spacer roll, H: 20 mm, Ø 50 mm
Feature: E-Cu material delivers high electrical conductivity and good corrosion resistance, supporting stable spacing and reliable busbar performance. Benefit: Reduces heat buildup and contact resistance, enabling safer operation in Power Management & Distribution cabinets. Application: Ideal for Maxi-PLS installations and copper-bar arrangements in industrial panels.Feature: Large 50 mm diameter with a 13 mm mounting hole and 20 mm height provides a robust, standard-fit spacer. Benefit: Minimizes the need for custom adapters and simplifies field installation, saving time during panel assembly. Application: Fits common busbar and mounting patterns in electrical enclosures.Feature: Packs of four with a total pack weight of 1.316 kg and copper weight of 0.33 kg per piece. Benefit: Improves stocking efficiency and lowers per-unit handling costs, supporting just-in-time manufacturing. Application: Useful for large-scale projects or service fleets requiring multiple spacers per enclosure.Feature: Compatibility with Maxi-PLS and flat copper bars ensures rapid integration into existing layouts. Benefit: Reduces rework and misalignment risk, enabling faster commissioning and consistent conductor spacing. Application: Suitable for modular power distribution layouts in industrial environments.Feature: Universal spacer roll design supports straightforward installation without machining or special tools. Benefit: Lowers total installed cost and accelerates changeouts or upgrades in evolving control cabinets. Application: Ideal for panel upgrades, retrofits, and new builds in automation and electrical systems.
Get a Quick Quote for a Rittal 9676505
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9676505?
Enquire Now
FAQs
Yes. The SV 9676.505 is designed as a universal spacer for Maxi-PLS installations and flat copper bars, featuring a 50 mm diameter, 13 mm mounting hole, and 20 mm height. It ships in packs of four to streamline stocking and field deployment, enabling quick alignment in standard panel layouts.
Key specs are diameter 50 mm, hole Ø 13 mm, height 20 mm, material E-Cu. Each pack contains four spacers with a total pack weight of 1.316 kg and copper weight of 0.33 kg per piece. EAN is 4028177597037, aligning with standard European sourcing.
The spacer is intended for electrical distribution panels and enclosures using Maxi-PLS and copper busbars. It provides precise, repeatable spacing to support reliable insulation and reduced contact resistance, making it suitable for industrial control cabinets, power distribution enclosures, and retrofit projects.
The provided data does not specify CE, SIL, or IP ratings. For regulated deployments, verify regional certification requirements with your supplier and confirm with Rittal documentation or support to ensure alignment with project-specific safety and compliance standards.
Using this universal spacer reduces assembly time, minimizes misalignment-related rework, and lowers total downtime during commissioning. Pack-of-four practicality improves stocking efficiency, while E-Cu material supports durable, low-resistance conductor arrangements, contributing to lower lifecycle costs and improved reliability.
