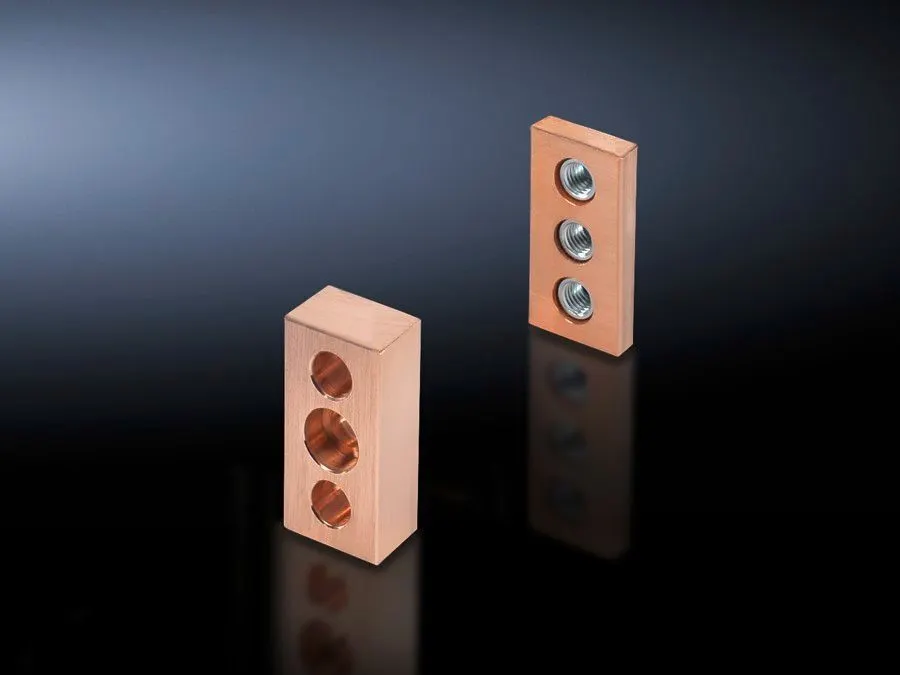

Rittal SV 9676.526 Contact Maker E-Cu - Flat-PLS
Part Number: 9676526
Manufacturer
Rittal
Part number
9676526
Category
Alt Part Number
SV 9676.526
Quick Summary
Rittal SV 9676.526 is a contact maker used to join connection brackets to Flat-PLS busbar systems without drilling. This drill-free solution minimizes panel assembly time and reduces misalignment risk during power distribution projects in control cabinets. While exact CE or IP ratings aren’t listed in the data, the part is aligned with industry classifications such as ETIM 9 EC001900 and ECLASS 8.0 27400613, supporting standardized procurement and data quality. The solution delivers a precise copper weight of 0.39 kg per piece with a 60 mm busbar width, enabling predictable electrical performance. In practice, it enables efficient, compliant installations and lowers lifecycle costs through simpler maintenance and faster serviceability.
Product Information
Extended Description
9676526 Rittal: SV Contact maker E-Cu, WH: 60x20 mm, for 2 strands, (Flat-PLS)
Article number
SV 9676.526
Product description
For joining connection brackets to busbar systems.
Material
E-Cu
Supply includes
Assembly parts
For Busbar width
60 mm
Number of bars per conductor
2
Note
The screws included with the supply are used to secure the contact pieces to the busbars
To fit busbar system
Flat-PLS
Mounting dimensions
40 mm
Packs of
1 pc(s).
Weight/pack
0.6 kg
Copper weight (kg per piece)
0.39
Customs tariff number
74198090
EAN
4028177602748
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Contact maker E-Cu, WH: 60x20 mm, for 2 strands, (Flat-PLS)
Feature: No drilling required for Flat-PLS busbar connections → Business Impact: Reduces installation time and minimizes misalignment during panel assembly → Application: Power distribution panels and control cabinets where Flat-PLS is used. Feature: E-Cu contact material with 0.39 kg copper per piece → Business Impact: Improves conductivity and current capacity while maintaining compact form factor → Application: High-current feeders in modular switchgear. Feature: Mounting footprint 40 mm and width 60 mm → Business Impact: Space-efficient fit within tight enclosures, simplifying layout planning → Application: Compact control panels and cabinet backplanes. Feature: 2 strands per connector → Business Impact: Ensures reliable multi-conductor contact and balanced current sharing → Application: Busbar-to-bracket assemblies requiring two parallel conductors. Feature: Supply includes assembly parts and securing screws → Business Impact: Accelerates onboarding and reduces field-sourcing risk → Application: On-site installability in standardized Flat-PLS installations. In practice, these attributes support faster commissioning, consistent copper weight management, and robust, low-maintenance power distribution. Compatibility with Flat-PLS systems and clear product data (ETIM/ECLASS) enhances procurement accuracy and lifecycle cost control across panel builds.
Get a Quick Quote for a Rittal 9676526
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9676526?
Enquire Now
FAQs
Install the SV 9676.526 by aligning the 60 mm busbar width with the Flat-PLS interface, insert the 2 strands into the contact pieces, and secure using the included screws. The mounting depth is 40 mm, and no drilling is required, which minimizes risk of misalignment and speeds up commissioning.
This part is specified for Flat-PLS busbars with a 60 mm width and supports two strands per connector. Ensure the brackets or kits being joined are designed for Flat-PLS and that the mounting footprint (40 mm) fits your enclosure layout to maintain proper clearance and heat dissipation.
Made from E-Cu with a copper weight of 0.39 kg per piece, the contact maker provides a robust current path and stable conductivity. The drill-free connection reduces wear from repeated assembly and simplifies ongoing maintenance by eliminating drilling-related stress points at the busbar interface.
Yes. The part is classified under ETIM 9 EC001900 and ECLASS 8.0 27400613, which helps ensure consistent data across procurement systems. The product also lists EAN 4028177602748 and GTIN, supporting accurate SKU-level traceability in the supply chain.
By eliminating drilling steps and reducing misalignment risk, assembly time drops and field rework decreases. The reliable copper contact supports longer service intervals and lower maintenance costs, particularly in high-density control panels or where Flat-PLS is the preferred busbar solution.
