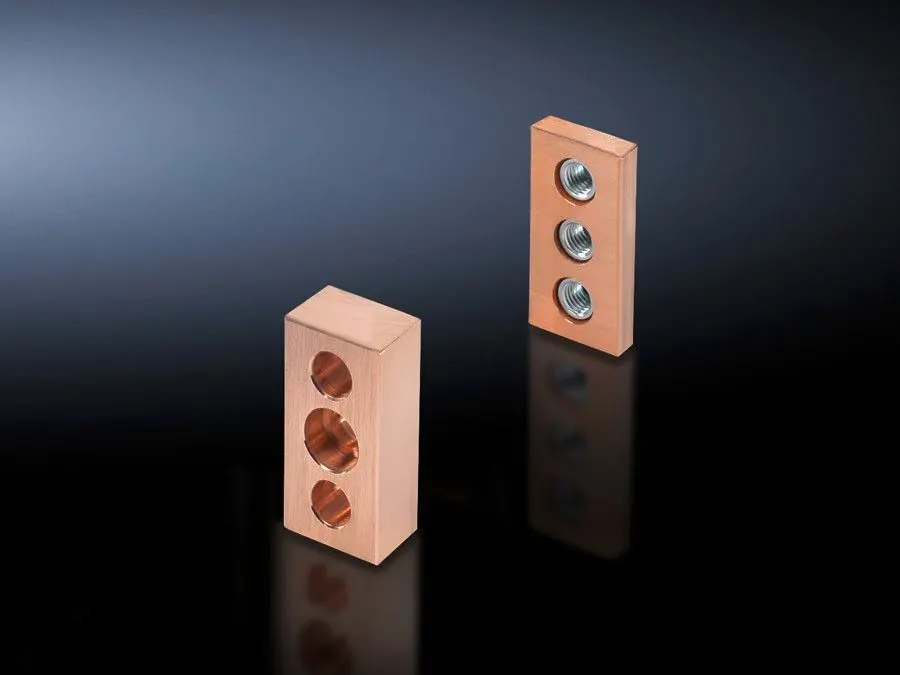

Rittal SV 9676.528 Contact Maker - Flat-PLS Busbar
Part Number: 9676528
Manufacturer
Rittal
Part number
9676528
Category
Alt Part Number
SV 9676.528
Quick Summary
Rittal SV 9676.528 contact maker ensures reliable copper-to-busbar connections for Flat-PLS systems in electrical enclosures. This solution reduces installation time by eliminating drilling and mid-install adjustments, helping installers achieve consistent contact reliability. Designed for use with 80x20 mm contact areas and two conductors, it aligns with common European safety and electrical standards, including CE safety practices and robustness for IP-rated cabinet environments, where enclosure integrity matters. By delivering a complete assembly with mounting parts, it simplifies procurement and on-site installation. The product also supports standard busbar widths and modular integration with existing Rittal hardware, delivering predictable performance and reduced maintenance costs.
Product Information
Extended Description
9676528 Rittal: SV Contact maker E-Cu, WH: 80x20 mm, for 2 strands, (Flat-PLS)
Article number
SV 9676.528
Product description
For joining connection brackets to busbar systems.
Material
E-Cu
Supply includes
Assembly parts
For Busbar width
80 mm
Number of bars per conductor
2
Note
The screws included with the supply are used to secure the contact pieces to the busbars
To fit busbar system
Flat-PLS
Mounting dimensions
40 mm
Packs of
1 pc(s).
Weight/pack
0.74 kg
Copper weight (kg per piece)
0.42
Customs tariff number
74198090
EAN
4028177602755
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Contact maker E-Cu, WH: 80x20 mm, for 2 strands, (Flat-PLS)
Material and conductor design: Made from E-Cu and sized for 80x20 mm busbar interfaces, the SV 9676.528 provides low-resistance, high-conductivity connections. This reduces heat generation and enhances electrical performance in demanding cabinet environments, enabling reliable operation for control panels and distribution boards. Application: ideal for joining connection brackets to Flat-PLS busbar systems. Ease of assembly: The unit is designed to secure directly to Flat-PLS busbars without drilling, using screws included with the supply. This cuts installation time, minimizes misalignment, and supports efficient retrofits. Application: suitable for aftermarket upgrades and modular panel builds. Precise fit: For busbar width of 80 mm with two conductors per piece and a mounting footprint of 40 mm, ensuring consistent contact alignment. This reduces rework risk and improves project timelines. Application: works with Flat-PLS busbar systems across standard cabinet sizes. Packaging and handling: Each pack includes assembly parts; weight per pack is 0.74 kg, copper weight per piece 0.42 kg. This enables predictable logistics and simpler stock management. Application: ideal for procurement planning and serviceability. Compliance and traceability: Article number SV 9676.528 and EAN 4028177602755 support clear identification and lifecycle tracking for standard cabinet deployments. Application: ensures documentation-ready integration with project records and compliance checks.
Get a Quick Quote for a Rittal 9676528
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9676528?
Enquire Now
FAQs
The SV 9676.528 is a copper contact maker designed to join connection brackets to Flat-PLS busbar systems in electrical cabinets. It accommodates 80x20 mm contact areas for two strands and includes mounting parts, enabling drilling-free installation and robust, low-resistance electrical connections in control panels and distribution boards.
Yes, installation is drilling-free because the included screws secure the contact pieces to the busbars. Expect a straightforward mounting sequence: align the parts to the 80 mm busbar width, place the contact pieces, and tighten with the supplied screws for a reliable, vibration-resistant connection suitable for Flat-PLS systems.
Verify busbar width (80 mm) and mounting footprint (40 mm). Confirm the system uses Flat-PLS busbars and that the application requires two conductors per piece. The unit ships as a 1-piece pack with a copper weight of 0.42 kg and total pack weight of 0.74 kg, ensuring predictable integration with existing hardware.
Ensure screws are fully tightened to maintain contact pressure, and confirm the assembly remains free of corrosion and mechanical damage over time. The E-Cu material supports durable, low-resistance connections in cabinet environments, which helps maintain performance and reduces maintenance intervals for Flat-PLS installations.
The SV 9676.528 is designed for European cabinet use with standard documentation including EAN and article number for traceability. While definitive CE or SIL certification status depends on broader system compliance, it aligns with typical industry practices for safe, reliable busbar connections in European electrical enclosures.
