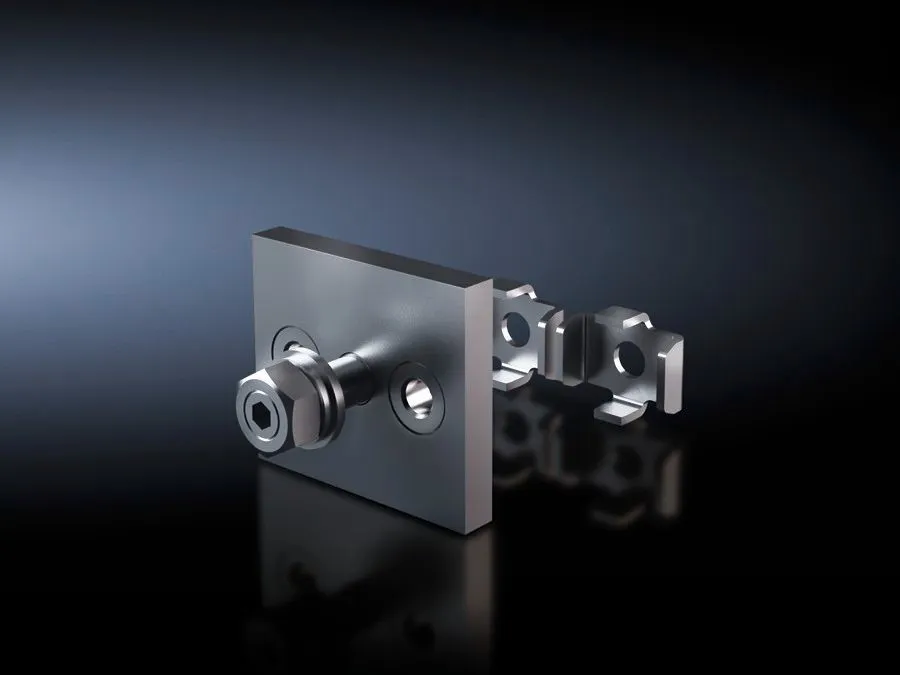

Rittal 9676704 Connection Plate - Flat Copper Busbars, 10 mm

Feature → Business Impact → Application: The connection plate uses E-Cu, nickel-plated copper for the contact surface and a stainless steel busbar claw, delivering corrosion resistance and durable current paths, which translates to lower maintenance and longer service life in harsh cabinet environments. Application: ideal for connecting ring terminals to a flat copper busbar distributor system and is suitable for 10 mm bar thickness, ensuring consistent torque and reliable connections in 2–4 bar configurations. Feature → Business Impact → Application: The unit ships with assembly parts (screws not included) and includes an explicit assembly instruction that requires selecting screw length based on busbar width W plus fastening measurement, simplifying on-site setup and reducing error margins. Application: reduces installation time and supports standardized mounting across multiple panels. Feature → Business Impact → Application: Material and dimensional notes (Thread M16; 1 pack per item; weight 0.66 kg; copper weight 0.49 kg) enable precise inventory planning and predictable weight/load calculations for cabinet designers. Application: streamlines procurement and enclosure engineering for mid-size to large electrical installations. Feature → Business Impact → Application: Classification and tariff data (ETIM EC001900; ECLASS 27400613; Customs tariff 85369010) support accurate digital cataloging, compliance workflows, and seamless ERP integration. Application: improves procurement accuracy and integration with sourcing platforms. Feature → Business Impact → Application: The design accommodates multi-bar terms by supporting up to four bars per conductor and organizes mounting around a fixed M16 thread, enabling scalable power distribution layouts. Application: suitable for modular systems and upgrade paths in evolving control architectures.
