Rittal 9676710 SV Connection plate - Flat-PLS
Part Number: 9676710
Manufacturer
Rittal
Part number
9676710
Category
Alt Part Number
SV 9676.710
Quick Summary
SV Connection plate enables ring terminals to connect to a Flat-PLS busbar system for compact panel distribution. Engineers often struggle with unreliable terminations and misaligned bolts that slow installation. The design supports CE safety practices and industry classifications (ETIM EC001900, ECLASS 27400613) while accommodating 10 mm busbars. For procurement and operations, the plate offers predictable mounting, compatible copper components, and minimal screws required, delivering faster, safer assemblies. By standardizing terminations in a compact nickel-plated copper solution, maintenance costs drop and spare part inventory stays lean.
Product Information
Extended Description

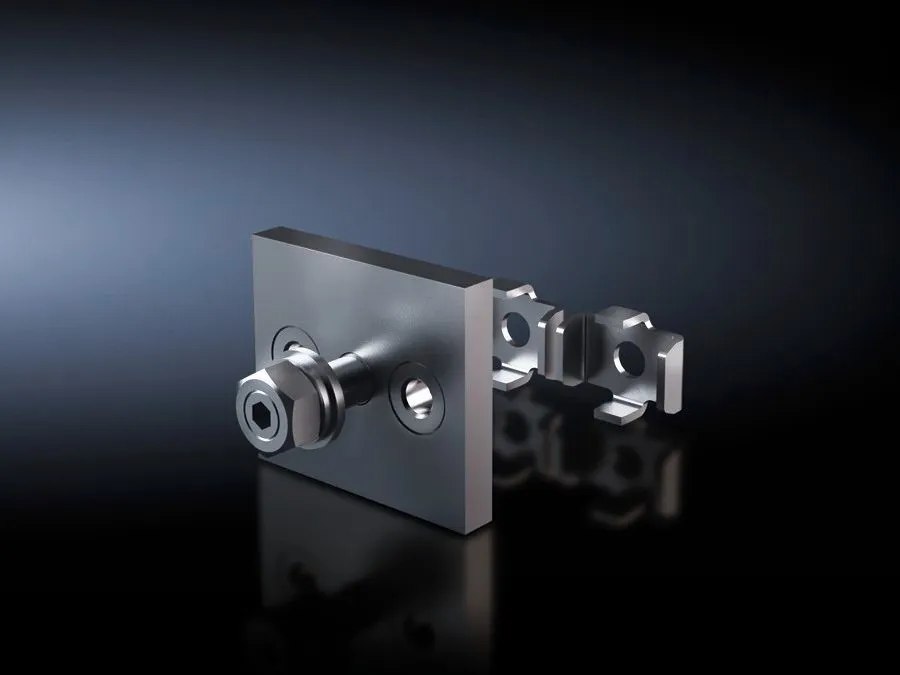

9676710 Rittal: SV Connection plate, with bolts M10, (Flat-PLS)
Article number
SV 9676.710
Product description
For connecting ring terminals to a busbar distributor system made from flat copper. Suitable for 10 mm bar thickness.
Material
Connection plate: E-Cu, nickel-plated | Busbar claw: Stainless steel
Supply includes
Assembly parts (excluding screws)
Assembly instruction
The required screw length must be selected in line with the busbar width W, i.e. length = W + fastening measurement. Screws are not included with the supply.
Number of bars per conductor
2
Dimensions
Thread: M10
Mounting dimensions
40 mm
Packs of
1 pc(s).
Weight/pack
0.12 kg
Copper weight (kg per piece)
0.07
Customs tariff number
85369010
EAN
4028177625778
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Connection plate, with bolts M10, (Flat-PLS)
Feature: The SV 9676.710 connection plate is built from nickel-plated copper with a stainless steel busbar claw, delivering a robust termination. Business impact: This material pairing resists corrosion and ensures stable electrical contact over time, reducing maintenance intervals. Application: Ideal for mounting two copper bars per conductor in a Flat-PLS distribution system with 10 mm thickness, supporting compact panel designs. Feature: Assembly parts are included (excluding screws) to support quick field assembly. Business impact: Streamlines procurement and reduces on-site ordering complexity, lowering installation time. Application: Use during commissioning of busbar distribution in control cabinets. Feature: Screw length guidance is defined by busbar width W, with length = W + fastening measurement. Excludes screws. Business impact: Minimizes wrong-length screws and rework. Application: Ensures secure mounting across varied widths. Feature: Weight and copper weight data: Weight/pack 0.12 kg; copper weight 0.07 kg per piece. Business impact: Helps with logistics planning and BOM accuracy. Application: Inventory planning for spares. Feature: Dimensions: Thread M10; mounting width 40 mm; packs of 1 pc. Business impact: Fits standard mounting provisions and reduces the need for custom hardware. Application: Ease of integration in standard hardware kits.
