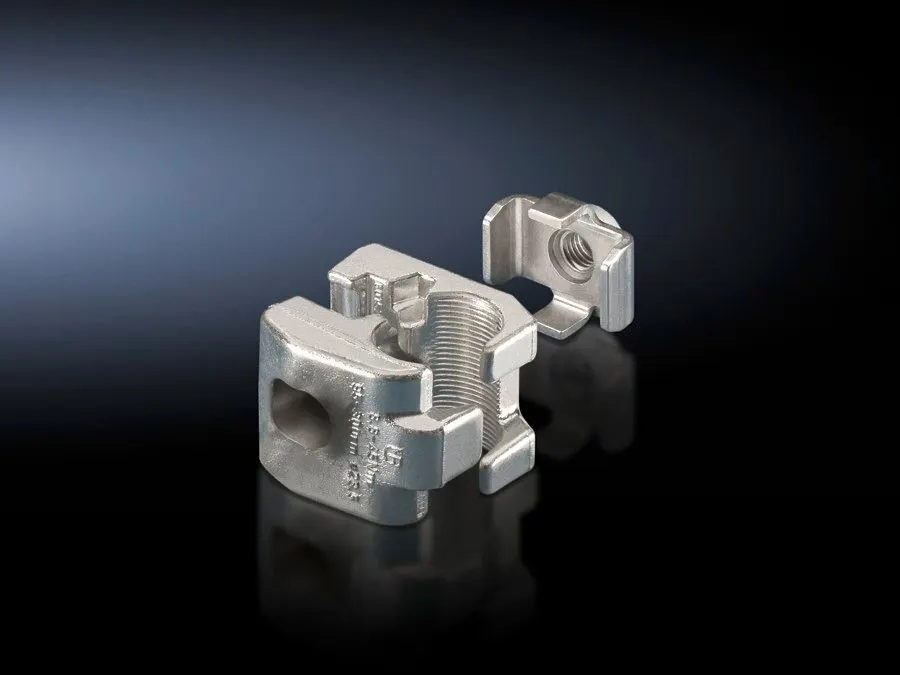

Rittal SV 9676.730 Direct Connection Terminal - Flat-PLS 60/100
Part Number: 9676730
Manufacturer
Rittal
Part number
9676730
Category
Alt Part Number
SV 9676.730
Quick Summary
The Rittal direct connection terminal SV 9676.730 enables reliable round-conductor connections for busbars. Engineers face challenges with loose clamps and inconsistent torque, which can lead to arcing, heat buildup, and downtime; this design mitigates those risks with a robust brass clamp and stainless steel busbar claw. While specific CE, SIL, or IP certifications are not listed in the provided data, the product is aligned with ETIM 9 EC001900 and ECLASS 8.0 27400613 standards, supporting interoperability and clear specification. This approach reduces maintenance costs and ensures repeatable assembly in panel-building and industrial switchgear. Secondary benefits include compatibility with flat copper busbars and straightforward mounting in 60 mm layouts, improving project timelines and reliability.
Product Information
Extended Description
9676730 Rittal: SV Direct connection terminal, round conductor connection 95-300 mm², (Flat-PLS 60/100), excluding screw
Article number
SV 9676.730
Product description
For connecting round conductors to a busbar distributor system made from flat copper. Suitable for 10 mm bar thickness.
Material
Connection clamp: Brass, tin-plated | Busbar claw: Stainless steel
Supply includes
Assembly parts (excluding screws)
Assembly instruction
The required screw length must be selected in line with the busbar width W, i.e. length = W + fastening measurement. Screws are not included with the supply.
Number of bars per conductor
2
Connection for round conductor
95 ‐ 300 mm²
Mounting dimensions
60 mm
Packs of
1 pc(s).
Weight/pack
0.34 kg
Customs tariff number
85369010
EAN
4028177625549
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Direct connection terminal, round conductor connection 95-300 mm², (Flat-PLS 60/100), excluding screw
Direct connection to flat copper busbars enables a secure, low-resistance current path for round conductors in the 95–300 mm² range. Business impact: improved efficiency, reduced heat build-up, and lower fault probability in power-distribution panels. Application: suitable for switchgear and panel-board assemblies where space is tight and reliability is critical. The clamp is brass and tin-plated, paired with a stainless steel busbar claw, delivering superior corrosion resistance and long service life in challenging environments. This combination translates to lower maintenance costs and fewer field adjustments over the system’s lifetime. Mounting dimensions are a compact 60 mm, and the supply includes assembly parts (excluding screws), enabling quicker, more predictable installations in new builds and retrofits. The design accommodates two bars per conductor, simplifying wiring schemes and reducing installation time. In practice, you’ll benefit from a streamlined alignment with Flat-PLS 60/100 busbars and a 10 mm bar thickness standard, which supports legacy and modern configurations alike. The required screw length is determined by busbar width (length = W + fastening measurement), aiding installers to select the correct fasteners and avoid installation errors. Asset managers gain from standardized parts, predictable lead times, and reduced risk during commissioning.
