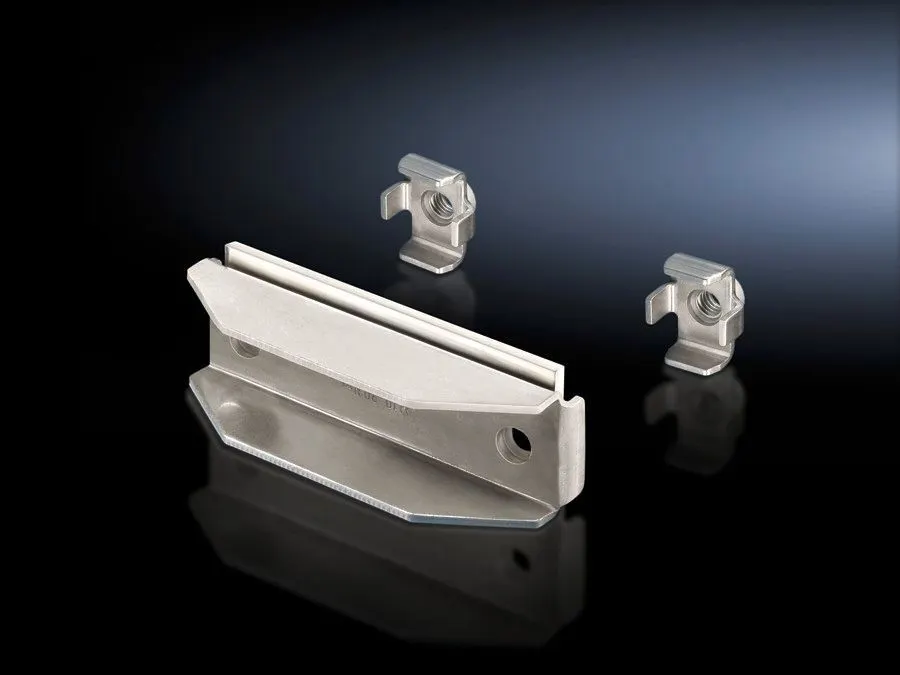

Rittal SV 9676.748 SV Connection Plate - 63x20 mm
Part Number: 9676748
Manufacturer
Rittal
Part number
9676748
Category
Alt Part Number
SV 9676.748
Quick Summary
Rittal SV 9676.748 SV Connection Plate connects laminated flat copper bars to a busbar distributor system. In field installations, securing reliable contact and proper alignment of multiple bars can slow projects. The design supports CE conformity and common enclosure requirements, with a 63x20 mm clamping area for 10 mm bars that fits Flat-PLS configurations, enabling clean, repeatable mounting. By standardizing the connection across two bars per conductor, it reduces rework, improves thermal performance, and simplifies procurement through clearly defined assembly parts and tolerances. This solution aligns with broader business goals of reducing install time, improving reliability, and ensuring consistent electrical performance in control cabinets.
Product Information
Extended Description
9676748 Rittal: SV Connection plate, clamping area WH: 63x20 mm, (Flat-PLS)
Article number
SV 9676.748
Product description
For connecting laminated copper bars to a busbar distributor system made from flat copper. Suitable for 10 mm bar thickness.
Material
Connection plate: E-Cu | Thrust piece: Stainless steel | Busbar claw: Stainless steel
Supply includes
Assembly parts (excluding screws)
Assembly instruction
The required screw length must be selected in line with the busbar width W, i.e. length = W + fastening measurement. Screws are not included with the supply.
Number of bars per conductor
2
Mounting dimensions
50 mm
Clamping area for laminated copper bars (W x H)
63 x 20 mm
To fit laminated copper bars
Qty.: 2 | with no. of membranes: 10 | with membrane width: 63 mm | with membrane thickness: 1 mm
Packs of
1 pc(s).
Weight/pack
0.48 kg
Copper weight (kg per piece)
0.19
Customs tariff number
85369010
EAN
4028177625563
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Connection plate, clamping area WH: 63x20 mm, (Flat-PLS)
Feature: Connection plate construction uses copper (E-Cu) for the plate with stainless steel thrust piece and busbar claw, delivering high conductivity and corrosion resistance. Business Impact: Ensures durable, low-resistance connections that withstand vibration and temperature cycling in cabinet environments. Application: Ideal for busbar distributor systems made from flat copper and Flat-PLS assemblies, where long-term performance matters. Feature: Clamping area for laminated copper bars measured at 63 x 20 mm, suitable for 10 mm bar thickness. Business Impact: Provides a secure, repeatable grip, reducing looseness and contact resistance over time. Application: Supports two bars per conductor in compact layouts. Feature: Assembly parts supplied (excluding screws); assembly instruction specifies screw length as W plus fastening measurement. Business Impact: Simplifies installation planning and minimizes field errors, speeding bring-up and maintenance. Application: Works with standard enclosure frames and predefined bar widths. Feature: Mounting footprint of 50 mm and weight data (0.48 kg per pack; copper weight 0.19 kg per piece). Business Impact: Enables predictable packing density and easier material planning; reduces overall cabinet weight burden. Application: Facilitates modular upgrades and scalable busbar configurations. Feature: Compatibility notes include laminates, membranes (qty 2, 63 mm width, 1 mm thickness, 10 membranes overall), and that screws are not included. Business Impact: Clarifies accessory requirements, avoids mis-ordering, and supports consistent quality in assembly. Application: Fits two bars per conductor in Flat-PLS busbar assemblies, with standard membrane arrangements to ensure reliable clamping.
Get a Quick Quote for a Rittal 9676748
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9676748?
Enquire Now
FAQs
The SV 9676.748 ships with assembly parts excluding screws. Screw length must be selected according to the busbar width W, using the formula length = W + fastening measurement. Screws are not included; plan for appropriate fasteners to match your enclosure and mounting frame. This minimizes misfit risk and ensures secure clamping across two laminated bars per conductor.
Yes. The plate clamps laminated copper bars with a clamping area of 63 x 20 mm and is designed for 10 mm bar thickness. It is specified to accommodate two bars per conductor, aligning with Flat-PLS busbar configurations for compact, reliable connections inside control cabinets.
The device supports two bars per conductor. Membrane specifications include a quantity of 10 membranes, each 63 mm wide and 1 mm thick. These membranes help ensure a consistent gap and clamp feel, contributing to uniform contact pressure and long-term stability in laminated copper bar connections.
This connection plate is optimized for busbar distributor systems made from flat copper and is intended for two bars per conductor. It is well-suited for control cabinets and switchgear that use laminated copper bars with 10 mm thickness, providing a reliable, repeatable clamping solution compatible with Flat-PLS layouts.
Ensure screws are sourced separately and matched to the W width for correct screw length. Follow the assembly instruction to secure the two-bar per conductor configuration, and verify the 63x20 mm clamping area engages evenly across the laminated copper bars. Use the provided mounting footprint (50 mm) for precise alignment within standard cabinet frames to maintain consistent electrical performance.
