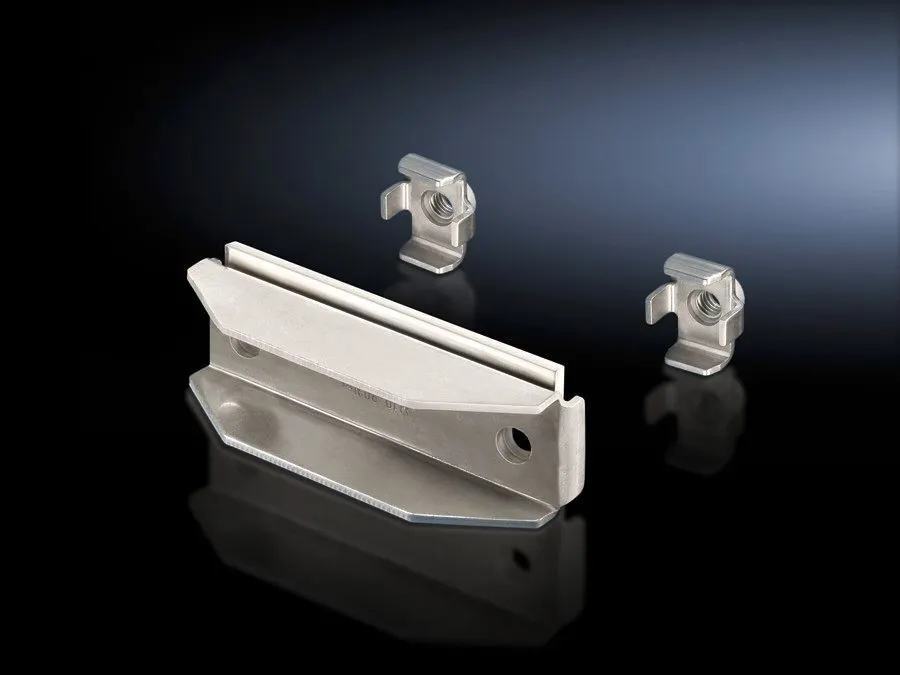

Rittal 9676749 SV Connection Plate - Flat-PLS 10 mm

Feature → The plate provides a clamping area of 100 x 20 mm and supports two laminated copper bars per conductor, enabling compact, high-current interconnections. Business Impact → This design reduces installation time, ensures consistent contact pressure, and minimizes voltage drop across busbar connections. Application → Ideal for switchgear and distribution panels using flat copper busbars with 10 mm bar thickness.Feature → Made from durable materials with an engineered joint set (E-Cu connection plate, stainless steel thrust piece and busbar claws). Business Impact → Enhances corrosion resistance and long-term mechanical stability in demanding environments, lowering maintenance costs. Application → Suitable for harsh industrial settings where reliable current paths are critical.Feature → Mounting dimensions of 50 mm and defined supply contents (assembly parts excluding screws). Business Impact → Simplifies field assembly and reduces misfit risk, improving turnaround times on installations and upgrades. Application → Useful for panel builders and service teams assembling or retrofitting busbar distributors.Feature → Clear specification for laminated copper bar fit (2 bars, membranes 10, membrane width 100 mm, membrane thickness 1 mm) and weight data (0.64 kg per pack; 0.27 kg copper per piece). Business Impact → Enables precise BOM planning and cost estimation, aiding procurement and logistic planning. Application → Supports standardized components in modular power distribution.Feature → Documentation and standard codes (ETIM 9 EC001900, ECLASS 8.0 27400613) plus availability of safety/instruction PDFs. Business Impact → Improves regulatory alignment, data integration, and user guidance, reducing project risk. Application → Useful for design reviews, compliance checks, and OEM integration projects.
