Rittal 9676817 SV Screw connection - Stainless steel
Part Number: 9676817
Manufacturer
Rittal
Part number
9676817
Category
Alt Part Number
SV 9676.817
Quick Summary
SV Screw connection 9676817 provides a robust M10x170 mm mounting link for busbar systems in Rittal enclosures. It is designed to attach busbar claws or connection components to flat copper busbars, delivering a secure, vibration-resistant connection in demanding electrical assemblies. Engineers often struggle with corrosion resistance, misalignment, and inconsistent torque in field installations; stainless steel construction helps mitigate these issues and extends service life. This part aligns with ETIM 9 EC001900 and ECLASS 8.0 for reliable procurement and interoperability across suppliers. With packs of eight and a weight of 0.928 kg per pack, it supports efficient stocking, quick replacement, and predictable Bill of Materials during panel builds.
Product Information
Extended Description

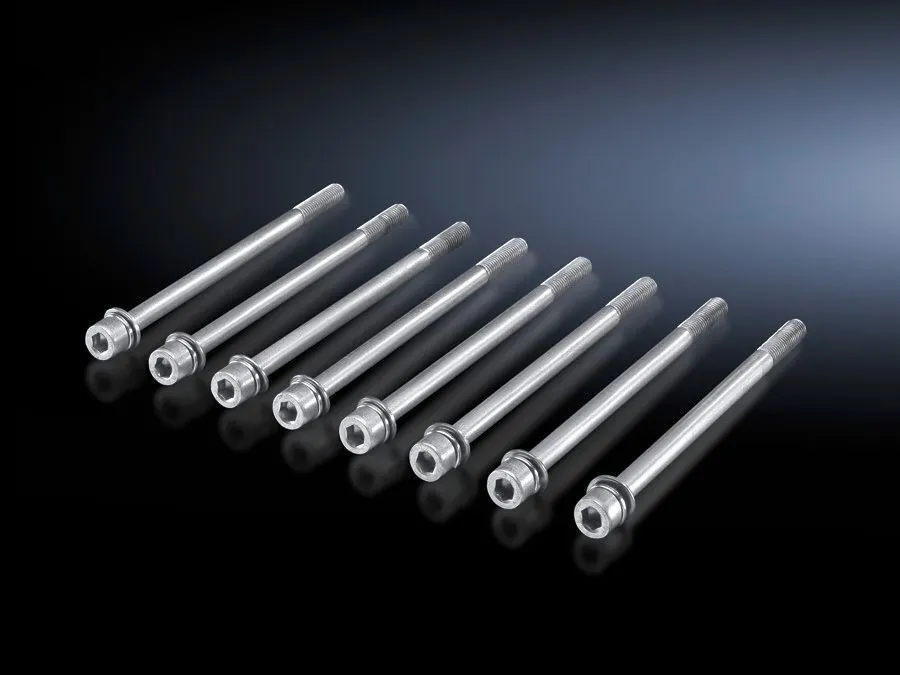

9676817 Rittal: SV Screw connection, M10x170 mm
Article number
SV 9676.817
Product description
For attaching the busbar claw or connection components to a flat copper busbar system.
Material
Stainless steel
Dimensions
Thread: M10 | Thread length: 170 mm
Packs of
8 pc(s).
Weight/pack
0.928 kg
Customs tariff number
73181900
EAN
4028177626317
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Screw connection, M10x170 mm
Stainless steel construction delivers excellent corrosion resistance and sustained mechanical integrity in challenging environments. This translates to lower maintenance costs and longer service intervals for busbar assemblies in factory floors, outdoor enclosures, and damp plant areas. The SV 9676.817 is well-suited for direct connection clamps and busbar claws on flat copper busbars, ensuring reliability over the product life cycle. Precise M10x170 mm threading and a 170 mm thread length standardize mounting across installations, enabling quick, repeatable assembly with existing clamps and connection plates, reducing installation time and torque variability. The standardized dimensions help prevent cross-vendor mismatches when sourcing parts from multiple suppliers. Packaging of 8 pieces per box and a weight of 0.928 kg per pack streamline stocking and BOM planning for panel builders, supporting efficient procurement and traceability with GTIN 4028177626317. Compatibility with flat copper busbars and direct connection components makes adoption straightforward in Rittal enclosure ecosystems, reducing the total fastening hardware required and improving mount rigidity under vibration. Classification through ETIM 9 EC001900 and ECLASS 8.0 supports compliant part selection and interoperability across suppliers, while the stainless steel offer mitigates corrosion-related downtime in demanding environments.
Get a Quick Quote for a Rittal 9676817
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9676817?
Enquire Now
FAQs
Begin by aligning the M10 screw with the busbar hole or clamp location, ensure the thread engages cleanly, and tighten to the manufacturer’s torque guidance in the datasheet. Use appropriate washers if required by the clamp design, and verify that the connection remains aligned under expected vibration and thermal cycling. This screw connection is designed for direct attachment to flat copper busbars using standard busbar claws or connection components.
Key specs include stainless steel material for corrosion resistance, M10 thread with 170 mm thread length, and packs of 8 with a weight of 0.928 kg per pack. The EAN is 4028177626317, and ETIM 9 EC001900 plus ECLASS 8.0 code 27400613 ensure interoperability. These factors contribute to reliable duty cycles in vibration-prone enclosures and by enabling consistent torque and seating with minimal maintenance.
Ideal for industrial control panels, switchgear, and Rittal enclosure ecosystems where flat copper busbars are used. The stainless steel fastener is suitable for environments with humidity, dust, or corrosive exposure, and it supports secure attachment of busbar claws and connection components in both indoor and outdoor installations.
The product aligns with ETIM 9 EC001900 and ECLASS 8.0 27400613, which support accurate part classification and procurement workflows. While explicit CE marking or IP ratings are not listed in the provided data, refer to the datasheet (downloads) or contact Rittal technical support for formal certification details relevant to your project scope.
The stainless steel construction reduces corrosion-related downtime, lowering maintenance frequency. Pack sizing (8 pieces per pack) and traceable GTIN help streamline BOM management and inventory control, delivering predictable procurement costs and faster panel assembly, which translates to lower total cost of ownership over the project lifecycle.
