Rittal 9676819 Screw connection - M10x190 Stainless steel
Part Number: 9676819
Manufacturer
Rittal
Part number
9676819
Category
Alt Part Number
SV 9676.819
Quick Summary
Screw connection SV 9676.819 enables secure attachment of busbar components to flat copper busbars in Rittal power distribution systems. Engineers often struggle with securing high-current connections that resist corrosion and vibration in compact enclosures. Note that certification status is not listed in the data; when selecting busbar accessories, confirm CE compliance and evaluate IP protection levels and any SIL requirements relevant to the installation environment. This stainless steel accessory delivers reliable performance, straightforward installation, and scalable packs that support efficient procurement and inventory control.
Product Information
Extended Description

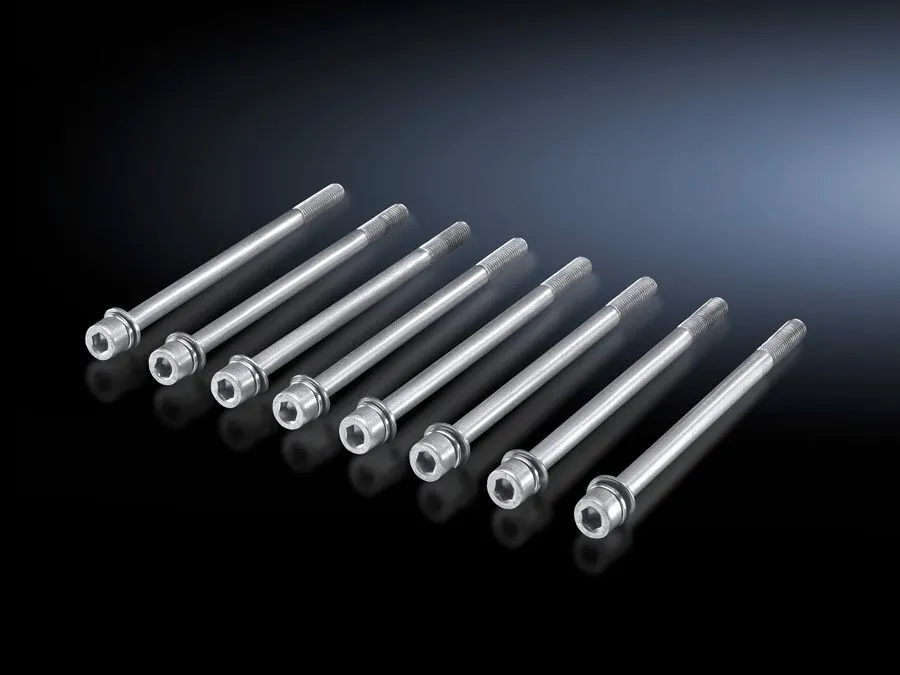

9676819 Rittal: SV Screw connection, M10x190 mm
Article number
SV 9676.819
Product description
For attaching the busbar claw or connection components to a flat copper busbar system.
Material
Stainless steel
Dimensions
Thread: M10 | Thread length: 190 mm
Packs of
8 pc(s).
Weight/pack
1.032 kg
Customs tariff number
73181900
EAN
4028177626324
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Screw connection, M10x190 mm
Feature: Stainless steel construction provides corrosion resistance and long service life in harsh industrial environments. Business Impact: reduces maintenance costs and downtime while extending asset life. Application: ideal for busbar systems in Rittal enclosures and outdoor-rated installations, including direct connection clamps and busbar claws. Feature: Thread M10 with a length of 190 mm ensures robust engagement with busbar claws and connection components. Business Impact: delivers stable mechanical connections even under vibration and thermal cycling, improving electrical continuity and safety. Application: suitable for flat copper busbar systems in modular power distribution layouts. Feature: Compatibility with busbar claws, connection plates, and direct connection clamps. Business Impact: simplifies assembly, reduces parts inventory, and speeds up installation in manufacturing and service environments. Application: integrates smoothly with busbar systems using flat copper bars. Feature: Packs of 8 pieces support efficient procurement and stocking. Business Impact: lowers unit cost per connection, improves material planning, and minimizes downtime due to missing parts. Application: ideal for line-side maintenance and project installations. Feature: Clear product data alignment with ETIM EC001900 and ECLASS 27400613, along with a defined customs tariff. Business Impact: enables better ERP/B BOM consistency and compliance. Application: streamlines sourcing and catalog management for electrical contractors and OEMs.
Get a Quick Quote for a Rittal 9676819
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9676819?
Enquire Now
FAQs
Begin by aligning the M10 threaded area with the busbar hole pattern compatible with the busbar claw or connection plate. Clean any oxidation on the copper surface, insert the screw, and tighten to the manufacturer’s torque spec for stainless steel fasteners in electrical assemblies. Verify alignment and secure engagement to ensure reliable current paths and vibration resistance.
Key specs include a thread diameter of M10 and a thread length of 190 mm, stainless steel material for corrosion resistance, and a pack size of 8 pieces. These factors affect mechanical strength, torque tolerance, and long-term durability in dynamic environments inside electrical enclosures.
Yes. The screw connection is designed for attaching busbar claws, connection plates, or direct connection clamps to flat copper busbars, providing a secure and corrosion-resistant interface suitable for Rittal systems and similar modular power distribution layouts.
Certification status is not listed in the provided data. Verify CE marking, IP rating relevant to the enclosure environment, and any SIL requirements with the supplier or system integrator, especially for critical safety applications in industrial facilities.
Purchasing in eight-piece packs simplifies stocking, reduces ordering frequency, and lowers unit cost per fastener. This improves material planning, minimizes downtime due to missing parts, and supports faster assembly of busbar connections in schedule-driven production environments.
