Rittal SV Claw 9676.831 - M8 Threaded Insert
Part Number: 9676831
Manufacturer
Rittal
Part number
9676831
Category
Alt Part Number
SV 9676.831
Quick Summary
Rittal SV Claw with M8 insert secures NH slimline disconnectors to Flat-PLS busbars. This design helps avoid misalignment and reduces assembly time in panel-building or enclosure mounting. CE conformity and typical IP ratings are common expectations for such accessories; verify CE/IP details in the official datasheet. Including the Flat-PLS compatibility and a 3-pack per container adds efficiency and reduces stocking complexity. The 185 mm centre-distance busbar fit ensures a reliable mechanical connection across standard switchgear layouts. For engineers, this translates to predictable fit, faster installation, and lower maintenance in demanding industrial environments.
Product Information
Extended Description

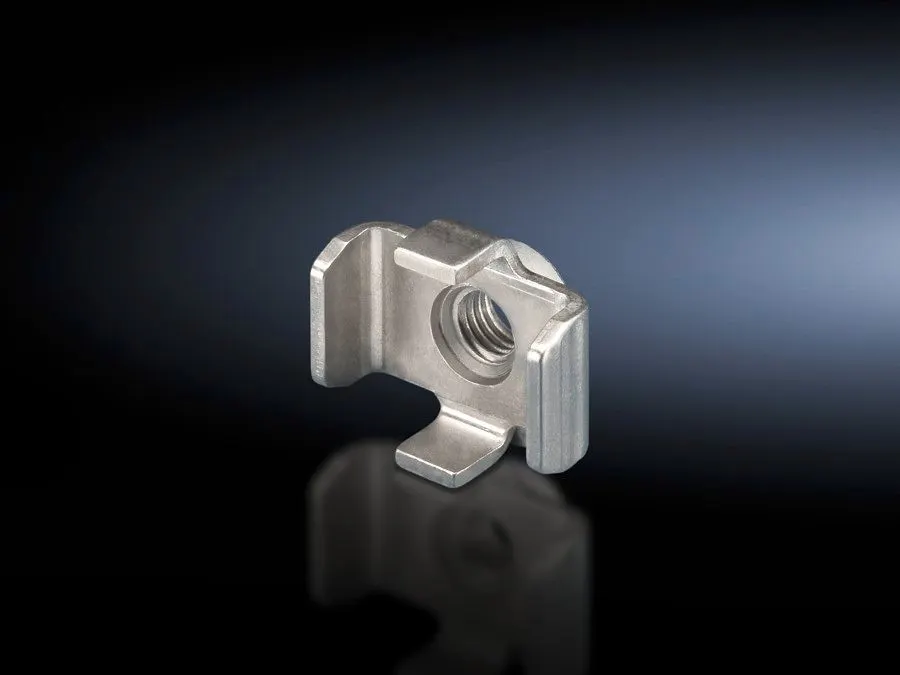

9676831 Rittal: SV Claw, with threaded insert M8, (Flat-PLS)
Article number
SV 9676.831
Product description
For attaching NH slimline fuse-switch disconnectors size 00 to busbar systems with 185 mm centre distance.
Material
Stainless steel
Assembly instruction
M8 screws (zinc-plated and passivated, strength 8.8) are additionally required
To fit busbar system
Flat-PLS
Dimensions
Thread: M8
Packs of
3 pc(s).
Weight/pack
0.084 kg
Customs tariff number
73181900
EAN
4028177697461
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Claw, with threaded insert M8, (Flat-PLS)
Feature: M8 threaded insert and stainless steel construction. Benefit: Provides a secure, corrosion-resistant mechanical connection that withstands vibration and long service life in industrial enclosures. Application: Attaches NH slimline fuse-switch disconnectors to Flat-PLS busbars with 185 mm centre distance, delivering consistent performance across panel assemblies. Feature: Flat-PLS busbar compatibility. Benefit: Simplifies installation and reduces the risk of misfit components, accelerating project timelines. Application: Works seamlessly with Flat-PLS busbar systems used in panel build-outs and distribution enclosures. Feature: Pack size and weight efficiency. Benefit: Reduces stocking diversity and freight costs with packs of 3 and a light 0.084 kg per pack, improving warehouse planning. Application: Ideal for contract manufacturing and multi-panel deployments. Feature: Assembly requirements. Benefit: M8 screws (zinc-plated and passivated, strength 8.8) are clearly defined to ensure strong, repeatable connections. Application: Supports reliable, repeatable mounting in production lines. Feature: Documentation and compatibility. Benefit: Clear product description and robust compatibility with Flat-PLS enable faster procurement and lower design risk. Application: Suits electrical distributors and system integrators seeking standardized mounting accessories for NH disconnectors.
Get a Quick Quote for a Rittal 9676831
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9676831?
Enquire Now
FAQs
Yes. The SV Claw is designed to attach NH slimline fuse-switch disconnectors (size 00) to Flat-PLS busbar systems with an 185 mm centre distance. It uses an M8 threaded insert and requires M8 screws (zinc-plated, strength 8.8) for installation, ensuring a secure, repeatable fit in standard control-panel layouts.
The accessory features a threaded M8 insert in stainless steel, delivering a robust, corrosion-resistant connection. The 0.084 kg pack weight and three-pack packaging support stable mounting in enclosures. With a flat-PLS busbar interface and a fixed 185 mm centre distance, the assembly maintains alignment and integrity in vibration-prone environments typical of automation panels.
Industrial automation, electrical distribution, and panel-building projects benefit from this component. It enables quick, reliable mounting of NH slimline disconnectors on Flat-PLS busbars, supporting efficient enclosure assembly, standardized parts procurement, and reduced maintenance needs in manufacturing lines, data centers, and process industries.
CE conformity and IP ratings are common expectations for enclosure accessories. While the datasheet provides material and compatibility details, verify CE certification and applicable IP ratings in the official documentation to ensure alignment with your regulatory and environmental requirements.
Yes. The M8 threaded insert and stainless-steel construction enable fast, repeatable mounting with fewer alignment errors. Pack-of-three packaging simplifies stocking, reducing procurement overhead, and the corrosion resistance lowers maintenance intervals, delivering measurable cost savings over a typical deployment cycle.
