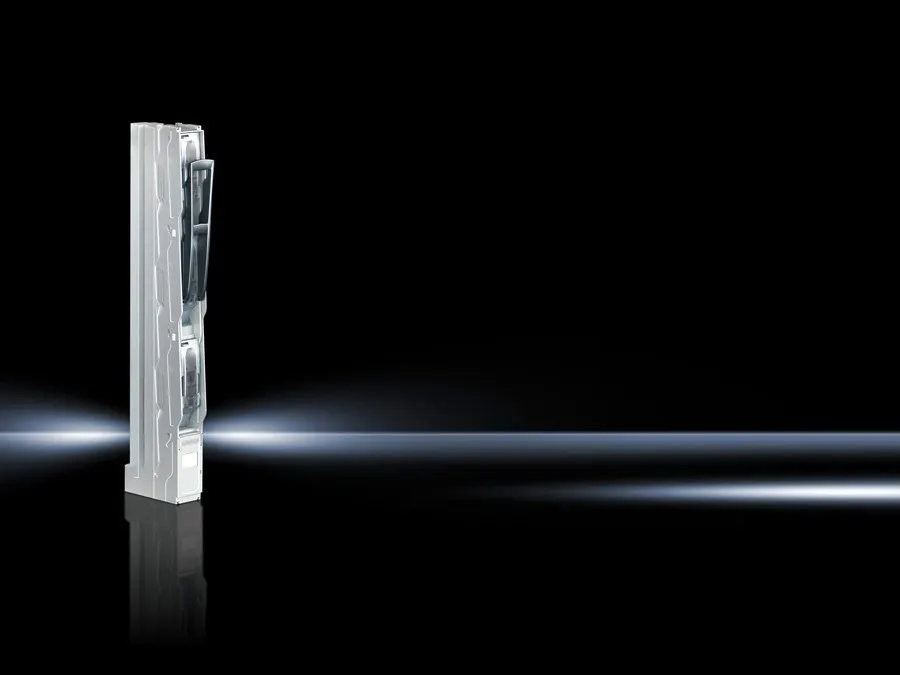

Rittal SV 9677.025 Fuse-Switch - IEC 60 947-3
Part Number: 9677025
Manufacturer
Rittal
Part number
9677025
Category
Alt Part Number
SV 9677.025
Quick Summary
Rittal SV 9677.025 Fuse-Switch is a 3-pole slimline disconnector designed for 185 mm busbar spacing in control panels. Installing in compact enclosures often leads to wiring clutter and reduced accessibility; this unit addresses those challenges with a narrow 50 mm footprint and top/bottom cable outlets. It complies with IEC/DIN EN 60 947-3 safety standards and features a UL 94-V0 flame-retardant polyamide body, delivering reliable performance in demanding environments. For CT installations and bar-system configurations, the 160 A, 690 V rating helps you harmonize protection and power distribution while supporting low total cost of ownership across panels and MCCs.
Product Information
Extended Description
9677025 Rittal: SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal, 185 mm, for current transformer installation
Article number
SV 9677.025
Design
3-pole, switchable
Material
Polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Partially silver-plated hard copper
Colour
Chassis: RAL 7035 | Cover: RAL 7001 | Handle: RAL 7016
For NH size
00
For bar systems with centre-to-centre spacing
185 mm
Cable outlet
Top/bottom
Type of electrical connection
Box terminal
Number of poles
3-pole
Rated operating voltage
690 V, 3~
Rated operating current max.
160 A
Note
When using components on busbars with contact hazard protection cover, the contact terminal must be used
Test specification
IEC/DIN EN 60 947-3
For converter installation
Yes
Dimensions
Width: 50 mm | Height: 670 mm
Connection for round conductor
1.5 ‐ 95 mm²
To fit busbars
Height: 10 mm
Packs of
1 pc(s).
Weight/pack
2.66 kg
Copper weight (kg per piece)
0.606
Customs tariff number
85365080
EAN
4028177707108
ETIM 9
EC001046
ECLASS 8.0
27371402
Product description
SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal, 185 mm, for current transformer installation
Feature → Business Impact → Application: The 3-pole NH slimline design (size 00) enables a compact footprint that reduces panel width and improves accessibility, lowering installation time and enabling neater wiring in CT-enabled switchgear. This supports CT installations and 185 mm busbar spacing without compromising safety or performance. Feature → Box terminal with top/bottom cable outlets offers flexible routing and simpler wiring, minimizing handling steps during assembly and maintenance in tight enclosures. Feature → 690 V, 3~, 160 A rated operating current provides robust protection for industrial distribution networks, helping you meet reliability targets in power control closets and MCCs. Feature → UL 94-V0 compliant polyamide construction delivers flame retardancy and safety margins in confined spaces, reinforcing compliance and risk management. Feature → Clear dimensional footprint (50 mm width, 670 mm height) fits standard enclosures, reducing CAD and cabinet rework while enabling fast retrofits. Feature → CT installation readiness simplifies integration with current transformers, speeding commissioning and ongoing monitoring.
Get a Quick Quote for a Rittal 9677025
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677025?
Enquire Now
FAQs
Install the SV 9677.025 by aligning the unit with the 185 mm busbar spacing and securing it to the DIN rail or mounting frame per the Rittal installation guidelines. Use the box terminal for conductor connection and ensure the contact hazard protection cover is correctly positioned; follow the top/bottom cable outlet routing for clean, accessible wiring. Verify current rating and voltage compatibility (160 A, 690 V) before energizing.
The SV 9677.025 supports round conductor sizes ranging from 1.5 to 95 mm². This range accommodates most CT installation wiring and power feeds, enabling flexible routing from top or bottom outlets. Always secure conductors properly in the terminal to maintain electrical integrity and ensure torque specifications are met during installation.
Yes. The SV NH slimline fuse-switch disconnector is designed for current transformer installation, with 185 mm busbar spacing and a 3-pole configuration. Its compact footprint and accessible connection points simplify CT wiring, reduce installation time, and support safer, more maintainable CT circuits in control panels.
The unit complies with IEC/DIN EN 60 947-3 safety standards and uses UL 94-V0 flame-retardant material. These references support regulatory alignment for electrical protection devices and enhance safety margins in enclosed switchgear environments, aiding risk management and compliance programs.
The 50 mm wide by 670 mm tall footprint enables denser panel layouts and easier retrofits in compact cabinets. Top/bottom cable outlets streamline wiring, reducing routing time and simplifying service. The robust 3-pole design with CT compatibility also minimizes spare parts, contributing to lower total cost of ownership over the device lifecycle.
