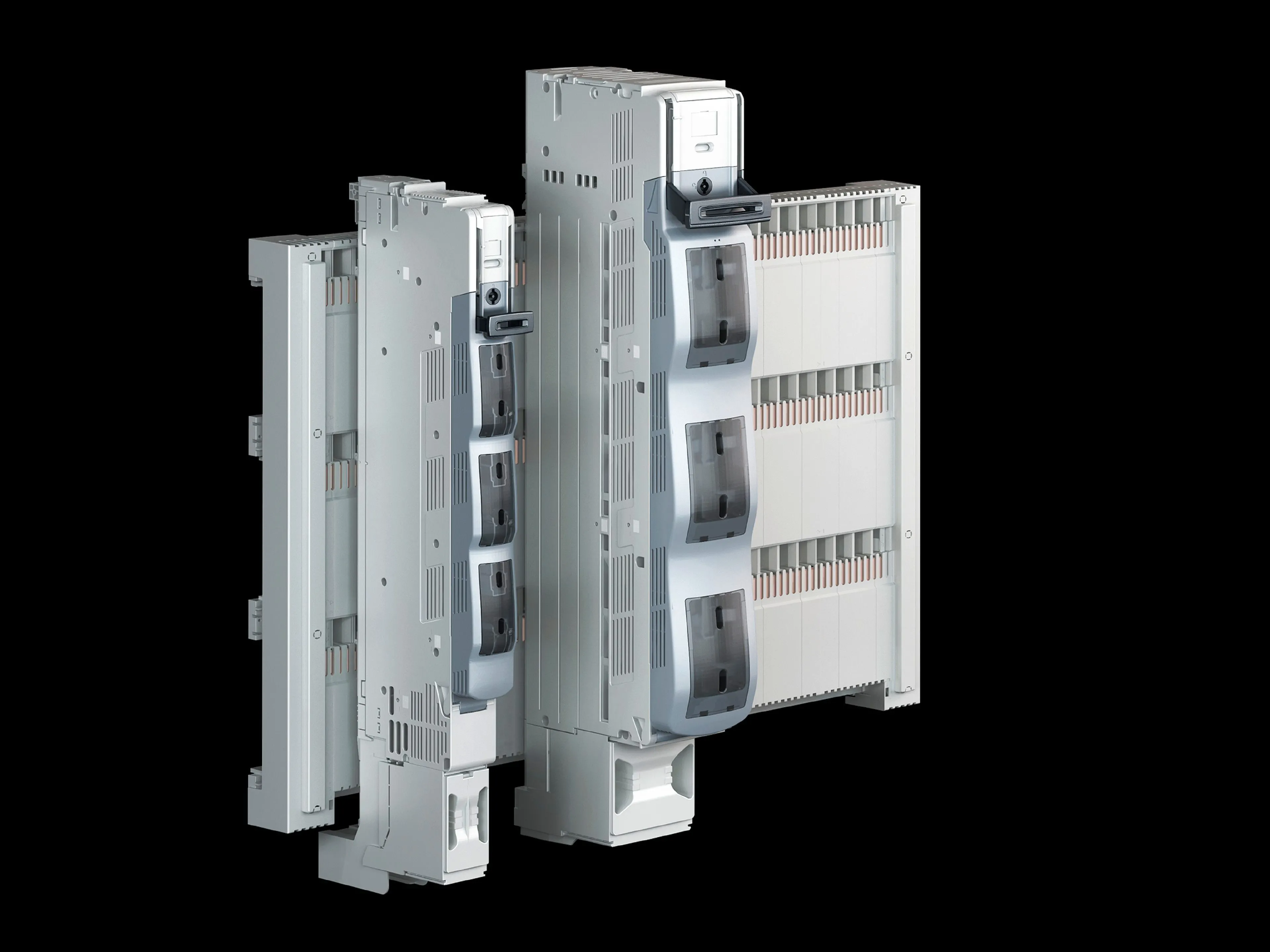

Rittal 9677060 SV NH Slimline Switch Disconnector - 3P/690V
Part Number: 9677060
Manufacturer
Rittal
Part number
9677060
Category
Alt Part Number
SV 9677.060
Quick Summary
Rittal SV NH slimline switch disconnector is a compact 3-pole isolation device for 185 mm busbar spacing. Engineers face space constraints and the need for reliable quick-break operation in modern panel assemblies, which this unit addresses head-on. It complies with IEC/DIN EN 60 947-3 and UL 94-V0 flame protection, reinforcing safety and performance in demanding environments. By delivering a combination of small footprint, robust electrical ratings, and installer-friendly features, it supports efficient panel layouts and dependable isolation in automation systems.
Product Information
Extended Description
9677060 Rittal: SV NH slimline switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 185 mm, cable outet bottom, clamping attachment
Article number
SV 9677.060
Design
3-pole, switchable
Function principle
Automatic quick-break contact allows operator-independent switching
Material
Polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Partially silver-plated hard copper
Colour
Chassis: RAL 7035 | Cover: RAL 7001 | Handle: RAL 7016
For NH size
00
For bar systems with centre-to-centre spacing
185 mm
Cable outlet
Bottom
Type of electrical connection
Screw M8
Installation type
Clamping attachment
Number of poles
3-pole
Rated operating voltage
690 V, 3~
Rated operating current max.
160 A
Test specification
IEC/DIN EN 60 947-3
For converter installation
Yes
Dimensions
Width: 50 mm | Height: 676 mm
Connection for round conductor
1.5 ‐ 95 mm²
To fit busbars
Height: 10 mm
Packs of
1 pc(s).
Weight/pack
5.28 kg
Copper weight (kg per piece)
1.072
Customs tariff number
85369095
EAN
4028177806689
ETIM 9
EC001040
ECLASS 8.0
27371401
Product description
SV NH slimline switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 185 mm, cable outet bottom, clamping attachment
Feature: 3-pole NH00 design with 185 mm centre-to-centre spacing enables direct compatibility with common busbar layouts, reducing panel width and simplifying wiring. Business Impact: Frees up enclosure real estate while maintaining full load capability and ease of service. Application: Suitable for compact control panels and motor drive cabinets where space is at a premium. Feature: Bottom cable outlet with screw M8 connections and clamping attachment simplifies wiring and secure mounting. Business Impact: Improves wiring discipline, reduces installation time, and lowers drip-loop risk in topologies with bottom-entry cables. Application: Ideal for compact switchgear and lifecycle-optimized assemblies. Feature: 690 V, 160 A rating with 3 poles supports demanding 3-phase loads and converter applications. Business Impact: Enables reliable isolation for drives, motors, and power distribution with a single device. Application: Panel boards, automated lines, and converter installations. Feature: Polyamide housing with UL 94-V0 flame protection and partially silver-plated copper contact tracks deliver durability and safety. Business Impact: Enhances safety margins and short-circuit resilience while maintaining low contact resistance. Application: Panels requiring flame-retardant components and long-life contacts. Feature: Dimensions and weight data — width 50 mm, height 676 mm, weight per pack 5.28 kg, copper weight 1.072 kg. Business Impact: Predictable fit in standard racks and clear BOM planning for procurement. Application: System integration in control enclosures and industrial cabinets.
Get a Quick Quote for a Rittal 9677060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677060?
Enquire Now
FAQs
The SV 9677.060 is designed for NH00 size busbars with an 185 mm centre-to-centre spacing and a bottom cable outlet, featuring a clamping attachment for secure mounting. It uses a screw M8 connection and supports conductor ranges from 1.5 to 95 mm². This combination enables straightforward retrofit and seamless integration into existing panel layouts while maintaining reliable electrical contact.
Rated for 690 V and up to 160 A, this 3-pole disconnector provides robust isolation for three-phase motor drives and converters. It employs an automatic quick-break contact to improve switching reliability, reducing operator dependency and enhancing safety during startup, shutdown, and fault isolation in automation systems.
Yes. The SV NH slimline switch disconnector is explicitly compatible with converter installations and is designed for tight panel mounting with a bottom cable outlet. Its clamping attachment and M8 screw connections simplify integration into control cabinets, making it a practical choice for drive circuits and power conversion applications where space and reliability matter.
The device uses a UL 94-V0 flame-retardant polyamide housing and features partially silver-plated hard copper contact tracks, supporting low contact resistance and durability. It is tested to IEC/DIN EN 60 947-3, aligning with common international standards for disconnectors used in industrial control panels.
Maintenance is minimized by robust materials and a simple mounting scheme, reducing downtime during inspections. The 3-pole, 160 A rating supports long service life in high-demand environments, delivering predictable TCO. Copper contact paths and reliable quick-break operation help maintain performance over time, contributing to a favorable return on investment in automated systems.
